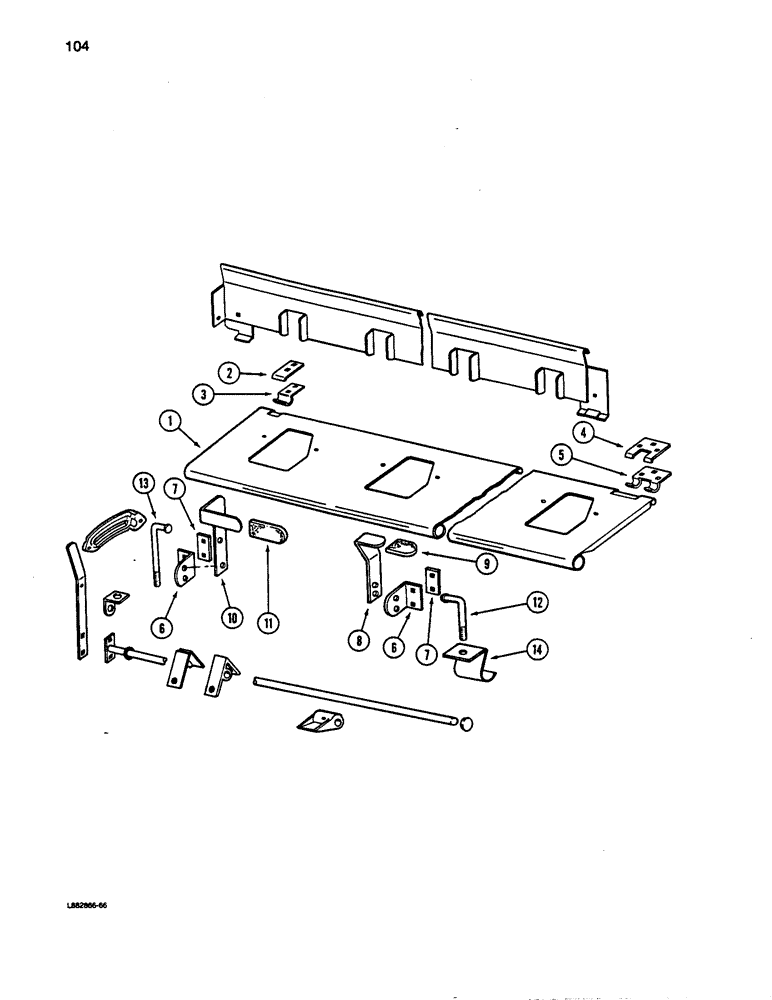

Запчасти Case IH 5100 (104) - FERTILIZER DROP BOTTOM

1

815340C1

PLOW BOTTOM

BOTTOM ASSEMBLY - fertilizer drop (13 x 7)

1шт.

1

815342C1

BOTTOM

ASSEMBLY - fertilizer drop (16 x 7)

1шт.

1

815352C1

BOTTOM

ASSEMBLY - fertilizer drop, left (24 x 6)

1шт.

1

815353C1

BOTTOM

ASSEMBLY - fertilizer drop, right (24 x 6)

1шт.

1

815344C1

BOTTOM

ASSEMBLY - fertilizer drop, left (18 x 7)

1шт.

1

815345C1

BOTTOM

ASSEMBLY - fertilizer drop, right (18 x 7)

1шт.

1

815348C1

PLOW BOTTOM

BOTTOM ASSEMBLY - fertilizer drop, left (20 x 6)

1шт.

1

815349C1

PLOW BOTTOM

BOTTOM ASSEMBLY - fertilizer drop, right (20 x 6)

1шт.

1

815360C1

BOTTOM

ASSEMBLY - fertilizer drop, left (20 x 8)

1шт.

1

815361C1

BOTTOM

ASSEMBLY - fertilizer drop, right (20 x 8)

1шт.

1

815364C2

BOTTOM

ASSEMBLY - fertilizer drop, left (16 x 10)

1шт.

1

815365C2

BOTTOM

ASSEMBLY - fertilizer drop, right (16 x 10)

1шт.

1

815356C2

BOTTOM

ASSEMBLY - fertilizer drop, left (16 x 8)

1шт.

1

815357C2

BOTTOM

ASSEMBLY - fertilizer drop, right (16 x 8)

17 1шт.

1

816709C1

PLOW BOTTOM

BOTTOM ASSEMBLY - fertilizer drop, right (21 x 7)

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

2

604403R1

CLAMP

STOP - drop bottom hinge intermediate (3 used 13 x 7, 16 x 7. 4 used 18x7,20x6, 16x 8; 6used24x6,21 x7,20x 8 and 16x 10) UAR

1шт.

3

604404R1

CLAMP

HINGE - drop bottom intermediate (1 per stop)

1шт.

4

815373C1

STOP

- drop bottom hinge outer

2шт.

5

815374C1

HINGE

- drop bottom outer

2шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - round head square neck, 1/4 NC x 1 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

6

603498R1

ANGLE

- drop bottom lever (5 used 13 x 7, 16 x 7; 6 used 18 x 7, 16x8;8used24x6,21 x7,20x8 and 16x10)

1шт.

7

603587R1

BAR

- lever angle reinforcing (1 per angle)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch (2 per bar)

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

8

815377C1

LEVER

- drop bottom short (2 used 13 x 7, 16 x 7, 18 x 7, 20 x6 and 16x 8; 4 used 24x6,20x 8, 16x 10 and 21 x7)

1шт.

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8 x 9/16 inch (1 per lever)

1шт.

9

B15378C1

GRIP - drop bottom short lever (1 per lever)

1шт.

10

603501R1

LEVER

- drop bottom long left (Shown)(2 used 13 x 7 and 16 x 7; 3 used 24x6, 18 x 7,20x6, 20x 8, 16x 10, 16x8 and 21 x7)

1шт.

10

840997C1

LEVER

- drop bottom long right (If equipped)

1шт.

11

815379C1

GRIP

- drop bottom long lever (1 per lever)

1шт.

12

603469R1

BOLT,3/8" - 16 x 3.3", Steel

- drop bottom short (1 per lever)

1шт.

13

603470R1

BOLT,3/8" - 16 x 5.1", Steel

- drop bottom long (1 per lever)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

14

603497R1

CATCH

- drop bottom (4used20x6, 13x7, 16x7, 18 x7and 16x8; 6used24x 6,21 x7,20x8and 16x10)

1шт.
