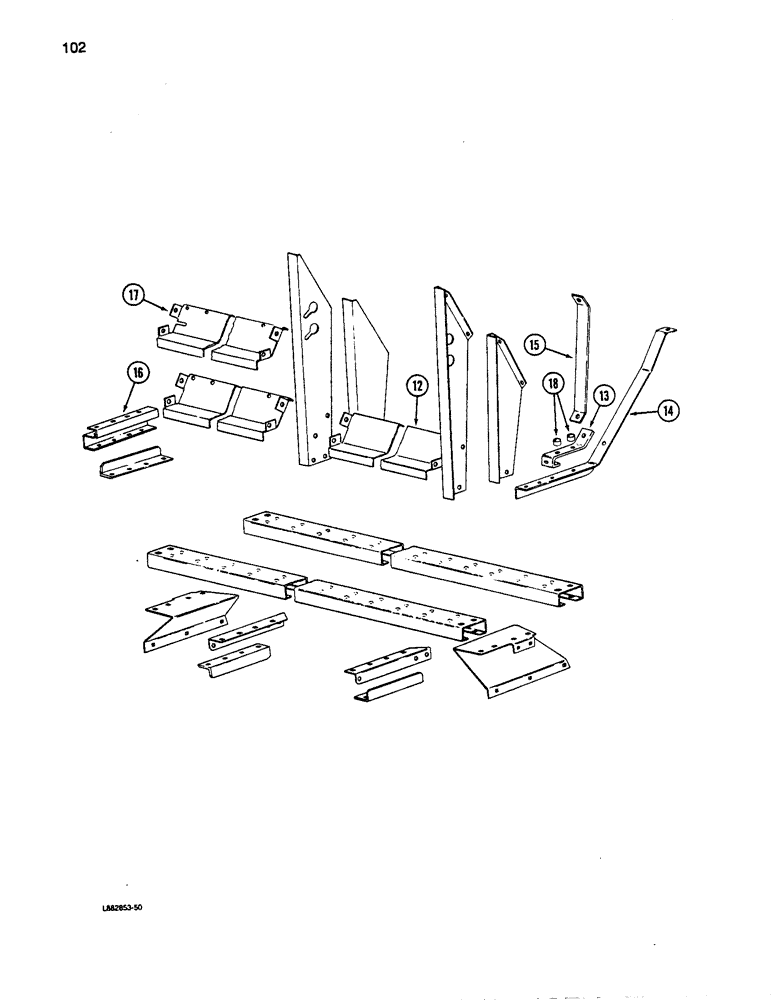

Запчасти Case IH 5100 (102) - FOOTBOARD, CONTD

12

816743C1

SHIELD

- footboard toe center (20 x 6, 24 x 6, 13 x 7, 16 x 7 and 21 x 7 for drills, Serial Range: shipped-England)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

2шт.

21843R1

WASHER

- flat, 13/32 x 1 x 13/64 inch

2шт.

13

815721C2

SUPPORT

- hopper (See Note)

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

2шт.

14

815717C1

SUPPORT

ASSEMBLY - hopper intermediate (See Note)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

815720C1

BRACKET

BRACE - hopper support (See Note)

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

843225C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - footboard, left

1шт.

Items, for drills with 28 inch wheels shipped to England

1шт.

16

843226C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - footboard, right

1шт.

Items, for drills with 28 inch wheels shipped to England

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

8шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

17

843239C1

SHIELD

- footboard toe outer, left (13 x 7)

1шт.

Items, for drills with 28 inch wheels shipped to England

1шт.

17

843240C1

SHIELD

- footboard toe outer, right (13 x 7)

1шт.

Items, for drills with 28 inch wheels shipped to England

1шт.

17

843235C1

SHIELD

- footboard toe outer, left (16 x 7)

1шт.

Items, for drills with 28 inch wheels shipped to England

1шт.

17

843236C1

SHIELD

- footboard toe outer, right (16 x 7)

1шт.

Items, for drills with 28 inch wheels shipped to England

1шт.

17

843237C1

SHIELD

- footboard toe outer, left (20 x 6)

1шт.

Items, for drills with 28 inch wheels shipped to England

1шт.

17

843238C1

SHIELD

- footboard toe outer, right (20 x 6)

1шт.

Items, for drills with 28 inch wheels shipped to England

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

2шт.

21843R1

WASHER

- flat, 13/32 x 1 x 13/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

18

60616H

WASHER

- hopper spacer NOTE A: Use with low rear mounted grass and brome seed attachment. NOTE B: Items, for drills with 28 inch wheels, Serial Range: shipped-England.

4шт.
