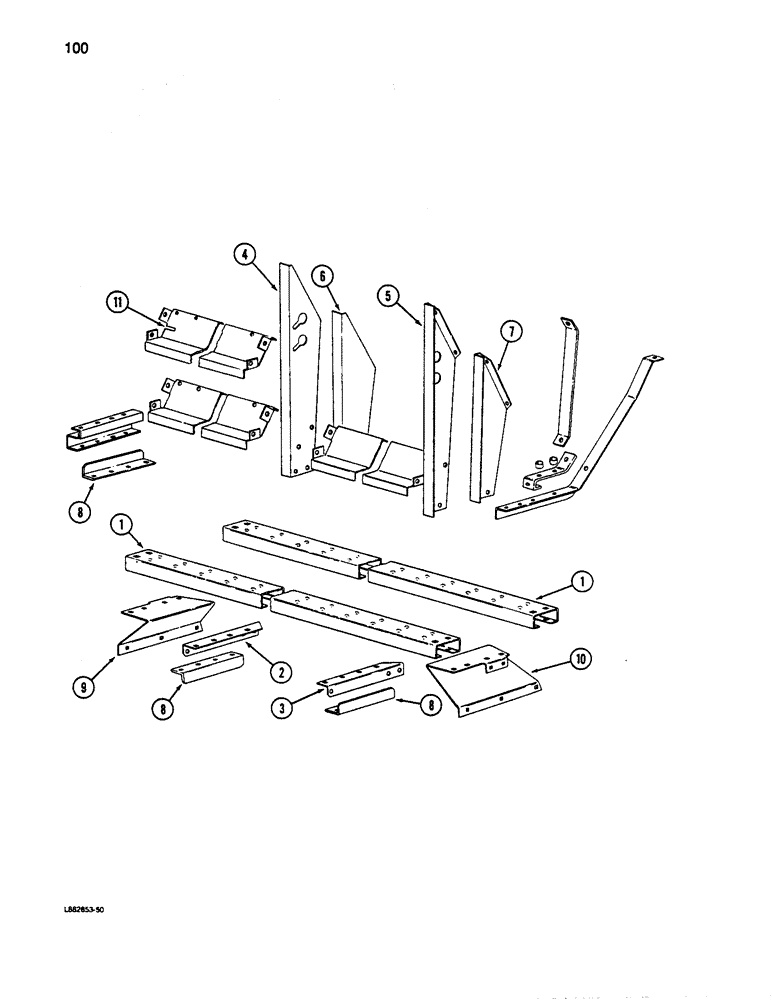

Запчасти Case IH 5100 (100) - FOOTBOARD

1

815104C1

BOARD

FOOTBOARD - grain drill (13 x 7)

2шт.

Ref #1 - For 13x7 drill is 94.2" 11/22/95

1шт.

1

815105C1

BOARD

FOOTBOARD - grain drill (16 x 7)

2шт.

Ref #1A - For the 16x7 Drill is 114.2" 11/22/95

1шт.

1

815106C1

SUPPORT

FOOTBOARD - grain drill (20 x 6, 18 x 7, and 16 x 8)

2шт.

Ref #1B - For the 20x6, 18x7 &16x8 is 128.2" 11/22/95

1шт.

1

815107C1

SUPPORT

FOOTBOARD - grain drill (24 x 6 and 21 x 7)

2шт.

Ref #1C - For the 24x6 & 21x7 is 147.2" 11/22/95

1шт.

1

815108C3

SUPPORT

FOOTBOARD - grain drill (20 x 8 and 16 x 10)

2шт.

Ref #1D - For the 20x8 & 16x10 is 159.2" 11/22/95

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

16шт.

120376

NUT,5/16"-18, G5

16шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

2

815191C1

ANGLE

SUPPORT - footboard, left

1шт.

3

815192C1

ANGLE

SUPPORT - footboard, right

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

815193C2

BRACKET

- footboard, left

1шт.

4

843207C1

BRACKET

- footboard, left (For drills with 28 inch wheels, Serial Range: shipped-England)

1шт.

5

815194C2

BRACKET

- footboard, right

1шт.

5

843208C1

HITCH BRACKET

BRACKET - footboard, right (For drills with 28 inch wheels shipped to England - Not used with separate placement fertilizer furrow opener or seed firming wheel)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

815757C1

PLATE

BRACKET - footboard, left (See Note)

1шт.

7

815758C1

PLATE

BRACKET - footboard, right (See Note)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

815722C1

ANGLE

SUPPORT - footboard (Use with low rear mounted grass and brome seed attachment)

4шт.

59B803R1

BOLT - round head square neck, 5/16 NC x 1 inch

6шт.

120376

NUT,5/16"-18, G5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

9

815760C1

SUPPORT

- footboard outer, right (See Note)

1шт.

10

815759C1

SUPPORT

- footboard outer, left (See Note)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

10шт.

120376

NUT,5/16"-18, G5

10шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

11

816742C1

SHIELD

- footboard toe outer (16 x 7)

2шт.

11

816884C1

SHIELD

- footboard toe outer (21 x 7 and 24 x 6)

2шт.

11

818000C1

SHIELD

- footboard toe outer (20 x 6)

2шт.

11

819038C1

SHIELD

- footboard toe outer (13 x 7 for drills with 20 inch wheels, Serial Range: shipped-England)

2шт.
