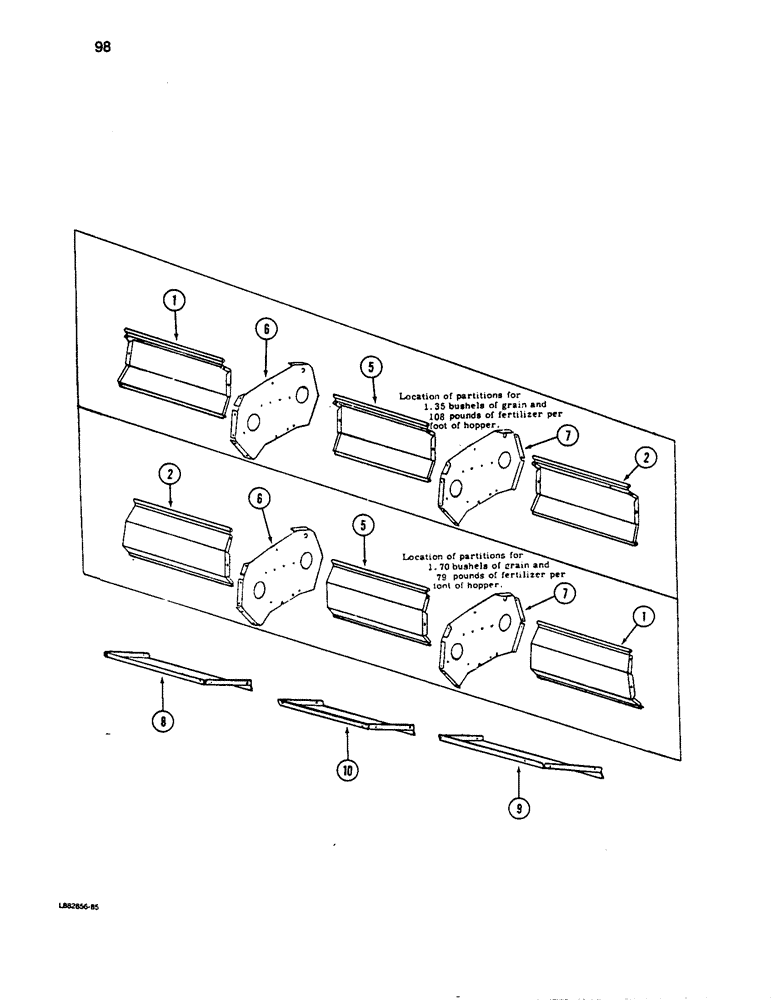

Запчасти Case IH 5100 (098) - PARTITION PANELS AND BAFFLES

1

815853C1

PANEL

- fertilizer partition outer (13 x 7)

1шт.

1

815859C1

PANEL

- fertilizer partition outer (16 x 7)

1шт.

1

815865C1

PANEL

- fertilizer partition outer (20 x 6, 18 x 7 and 16 x 8)

1шт.

1

815871C1

PANEL

- fertilizer partition outer (24 x 6 and 21 x 7)

1шт.

1

816932C1

PANEL

- fertilizer partition outer (20 x 8 and 16 x 10)

1шт.

2

815854C1

PANEL

- fertilizer partition outer (13 x 7)

1шт.

2

815B60C1

PANEL - fertilizer partition outer (16 x 7)

1шт.

2

815866C1

PANEL

- fertilizer partition outer (20 x 6, 18 x 7 and 16 x 8)

1шт.

2

815872C1

PANEL

- fertilizer partition outer (24 x 6 and 21 x 7)

1шт.

2

816933C1

PANEL

- fertilizer partition outer (20 x 8 and 16 x 10)

1шт.

5

815881C1

PANEL

- fertilizer partition center

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

6

816954C3

PLATE

BAFFLE - hopper, left

1шт.

7

816955C3

PLATE

BAFFLE - hopper, right

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

8

815B14C1

PANEL - grain partition outer left (13 x 7)

1шт.

8

815818C1

PANEL

- grain partition outer left (16 x 7)

1шт.

8

815822C1

PANEL

- grain partition outer left (20 x 6, 18 x 7 and 16 x 8)

1шт.

8

815826C1

PANEL

- grain partition outer left (24 x6 and 21 x 7)

1шт.

8

816930C1

PANEL

- grain partition outer left (20 x 8 and 16 x 10)

1шт.

9

815815C1

PANEL

- grain partition outer right (13 x 7)

1шт.

9

815819C2

PANEL

- grain partition outer right (16 x 7)

1шт.

9

815823C1

PANEL

- grain partition outer right (20 x 6, 18 x 7 and 16 x 8)

1шт.

9

815827C1

PANEL

- grain partition outer right (24 x 6 and 21 x 7)

1шт.

9

816931C1

PANEL

- grain partition outer right (20 x 8 and 16 x 10)

1шт.

10

815832C1

PANEL

- grain partition center

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(16x7) Hex, 1/4"-20 x 1/2", G5, Full Thd

12шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(13x7) Hex, 1/4"-20 x 1/2", G5, Full Thd

14шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(18x7, 20x6, 16x8, 20x8 and 16x10).15 Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(24x6 and 21 x7) Hex, 1/4"-20 x 1/2", G5, Full Thd

19шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Quantity of 1 per bolts above) 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(Quantity of 1 per bolts above) 1/4"-20, G5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.
