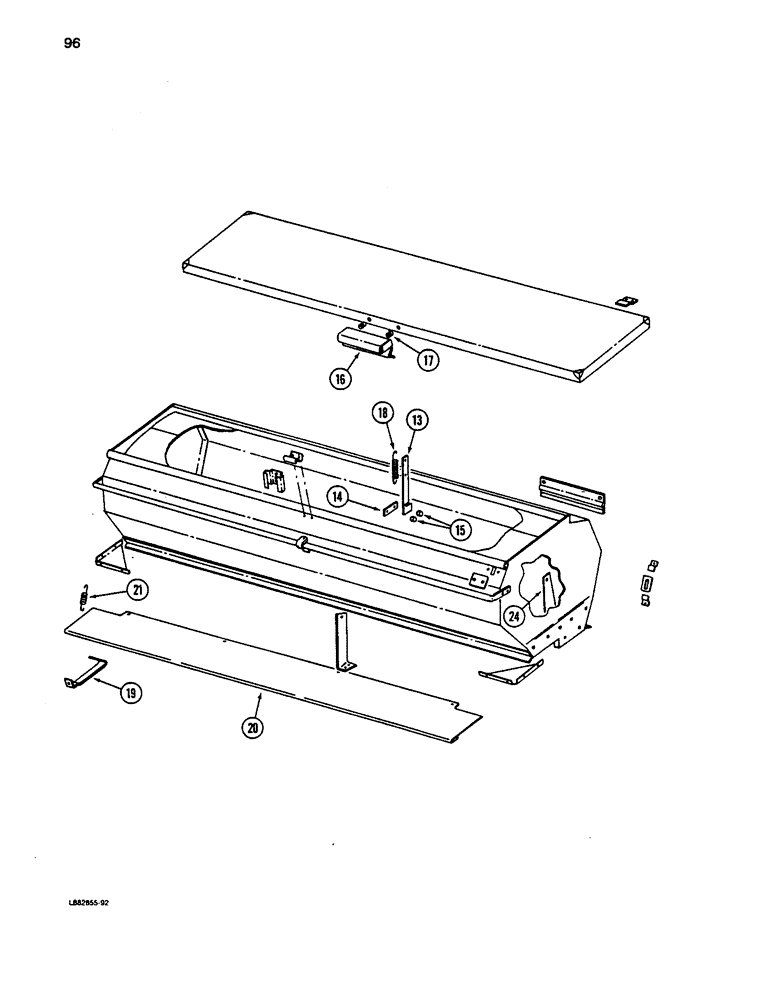

Запчасти Case IH 5100 (096) - GRAIN AND FERTILIZER HOPPER, 20 FURROW, 8 INCH SPACING, 16 FURROW, 10 INCH SPACING, CONTD

13

815176C1

ARM

- cover hold open

2шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN - clevis

2шт.

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

14

815178C1

SPACER

SUPPORT - arm retaining

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

15

594536R1

BUSHING

- support

4шт.

16

815174C1

LATCH

- cover

1шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

2шт.

17

N32176

SPRING

- latch

1шт.

18

398304R1

SPRING

- return

2шт.

19

603538R1

BRACKET

BRACE - hopper center

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(20 x 6) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

20

815844C1

COVER ASSY

COVER ASSEMBLY - fertilizer

1шт.

21

815891C1

SPRING

- fertilizer cover

4шт.

24

1279326C1

LEDGER PLATE

PLATE - reinforcing left

1шт.

24

1279327C1

LEDGER PLATE

PLATE - reinforcing right

1шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

2шт.
