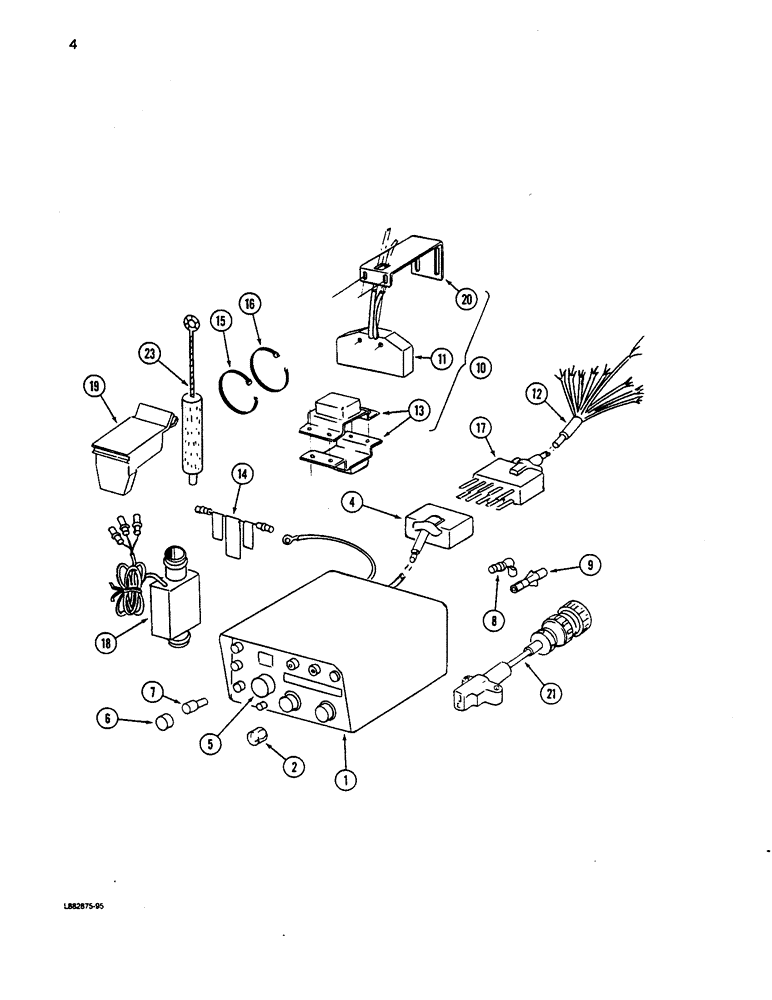

Запчасти Case IH 5100 (004) - PLANTING MONITOR, SEED FLOW I

79299C1

CONSOLE

ASSEMBLY - seed flow monitor

1шт.

1

NSS

NOT SOLD SEPARAT

CONSOLE - seed flow monitor (Order 79299C1)

1шт.

2

9426337

FUSE,3 Amp, Type 3AG

- 3 ampere

1шт.

4

128814C1

SOCKET

- female connector

1шт.

5

128816C1

BUZZER

- sonalert

1шт.

6

58499C1

LENS

- amber

1шт.

7

58554C1

BULB,C2F, #1892, 14V

- light, No. 1892

1шт.

8

58558C1

SUPPRESSOR

- spark plug

1шт.

9

58559C1

SUPPRESSOR

- distributor

1шт.

133924C1

DECAL

- seed flow

1шт.

10

819972C91

SENSOR

KIT - granular shaft sensor (Includes Ref. 1 1,20,13)

1шт.

11

818367C91

SENSOR

ASSEMBLY - shaft rotation (Includes Ref. 16)

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW - pan head cross recess, No. 8 x 1/2 inch

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

12

819974C91

HARNESS

- single drill wiring (Includes Ref. 14 thru 17)

1шт.

12

819975C91

HARNESS

- second drill wiring

1шт.

12

843408C91

HARNESS

- extension cable, two drill hitch

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

- round head slotted, No. 4 x 5/16 inch

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

134524

SHAFT

- mach screw, No. 4

2шт.

13

818368C91

MAGNET

- feed shaft

1шт.

14

58557C1

ELECTRICAL WIRE

WIRE - shortening

1шт.

15

5B555C1

STRAP - retaining, 7 inch long

1шт.

16

58556C1

CABLE TIE

STRAP - retaining, 14 inch long

1шт.

17

12B813C1

PLUG - male connection socket

1шт.

819971C91

SENSOR

- seed

1шт.

18

NSS

NOT SOLD SEPARAT

SENSOR - (Order 819971C91)

1шт.

19

841109C1

SHIELD

- light

1шт.

20

818369C91

BRACKET

- sensor feed shaft

1шт.

450644

BEARING ASSY,50 mm ID x 110 mm OD x 27 mm

- hex mach, No. 8 x 3/8 inch

2шт.

131015

WASHER

- flat, 3/16 x 7/16 x 1/32 inch

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120622

NUT,#8-32

2шт.

21

90925C1

CABLE

- adaptor, convert cyclomiter 2 console to grain drill seed flow system

1шт.

23

128817C1

BRUSH, COMMUTATOR

BRUSH - sensor cleaning

1шт.
