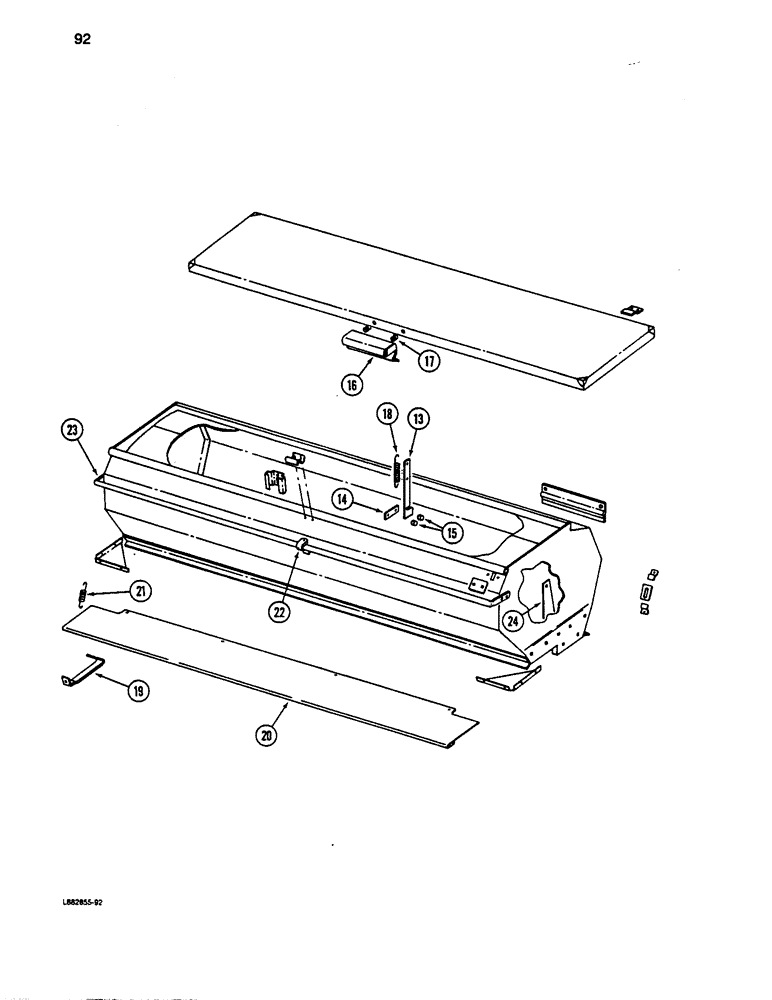

Запчасти Case IH 5100 (092) - GRAIN AND FERTILIZER HOPPER, 24 FURROW, 6 INCH SPACING, 21 FURROW, 7 INCH SPACING
№
Артикул
Название
Примечание
Количество
13
815176C1
ARM
- cover hold open
2шт.
24660R1
CLEVIS PIN,5/16" x .719"
PIN - clevis
2шт.
132-330
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
2шт.
619855R1
WASHER
- flat, 11/32 x 3/4 x 3/64 inch
6шт.
14
815178C1
SPACER
SUPPORT - arm retaining
2шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
- hex, 3/B NC x 7/8 inch
4шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
15
594536R1
BUSHING
- support
4шт.
16
815174C1
LATCH
- cover
1шт.
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
2шт.
17
N32176
SPRING
- latch
2шт.
18
398304R1
SPRING
- return
2шт.
19
603538R1
BRACKET
BRACE - hopper center
1шт.
598795R1
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
BOLT - round head square neck, 1/4 NC x 3/4 inch
2шт.
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
(20 x 6) Hex, 1/4"-20 x 1/2", G5, Full Thd
2шт.
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
20
815843C1
COVER
ASSEMBLY - fertilizer
1шт.
21
815891C1
SPRING
- fertilizer cover
1шт.
22
816764C1
CLAMP
- hand rail hex, 3/8 NC x 3/4 inch
2шт.
598812R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5
BOLT - round head square neck, 3/8 NC x 2 inch
2шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
23
816883C1
TUBE
- hand rail, right
1шт.
23
816765C1
TUBE,1.05" OD, 55.7, 4.5" Length
- hand rail, 56 inch
1шт.
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
120376
NUT,5/16"-18, G5
4шт.
24
1279326C1
LEDGER PLATE
PLATE - reinforcing left
1шт.
24
1279327C1
LEDGER PLATE
PLATE - reinforcing right
1шт.
20803R1
WASHER
- flat, 13/32 x 1 x 7/64 inch
2шт.
