Запчасти Case IH 5100 (088) - GRAIN & FERTILIZER HOPPER, 20 FURROW, 6 SPACING, 18 FURROW, 7 SPACING, 16 FURROW, 8 SPACING, CONT

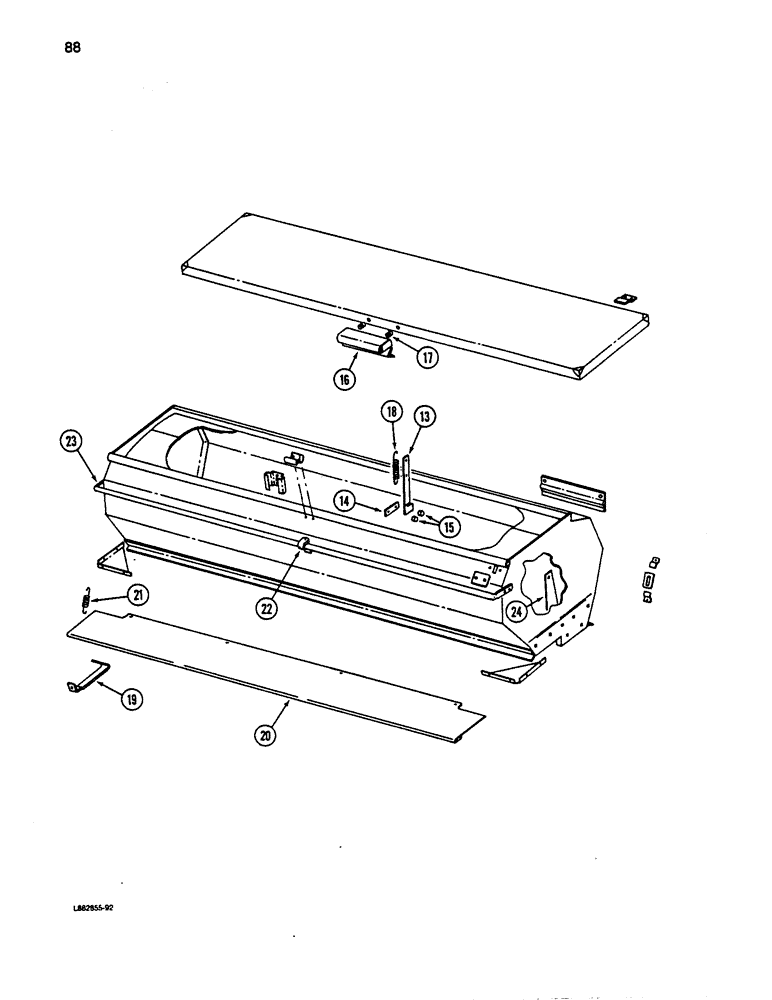

Схема запчастей Case IH 5100 - (088) - GRAIN & FERTILIZER HOPPER, 20 FURROW, 6 SPACING, 18 FURROW, 7 SPACING, 16 FURROW, 8 SPACING, CONT
14
17
23
24
19
21
22
15
18
20
16
13

Артикул

Название

Примечание

Количество

13

815176C1

ARM

- cover hold open

2шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN - clevis

2шт.

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

14

815178C1

SPACER

SUPPORT - arm retaining

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

15

594536R1

BUSHING

- support

4шт.

16

815174C1

LATCH

- cover

1шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

2шт.

17

N32176

SPRING

- latch

2шт.

18

398304R1

SPRING

- return

2шт.

19

603538R1

BRACKET

BRACE - hopper center

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(20 x 6) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

20

815842C1

COVER

ASSEMBLY - fertilizer

1шт.

21

815891C1

SPRING

- fertilizer cover

4шт.

22

816764C1

CLAMP

- hand rail (20 x 6)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT - round head square neck, 3/8 NC x 2 inch

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

23

816998C1

TUBE

- hand rail, 46 inch (20 x 6)

1шт.

23

816999C1

TUBE

- hand rail, 80 inch (20 x 6)

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

24

1279326C1

LEDGER PLATE

PLATE - reinforcing left

1шт.

24

1279327C1

LEDGER PLATE

PLATE - reinforcing right

1шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

2шт.

Выбрано товаров: 34
