Запчасти Case IH 5100 (084) - GRAIN AND FERTILIZER HOPPER, 16 FURROW, 7 INCH SPACING, CONTD

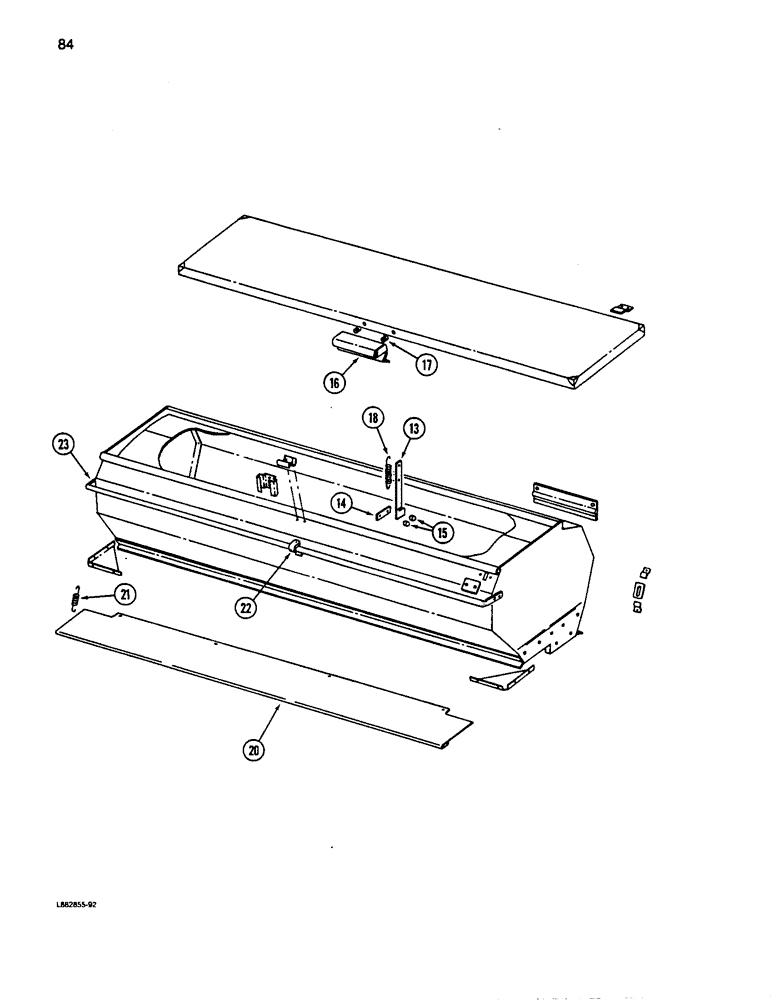

Схема запчастей Case IH 5100 - (084) - GRAIN AND FERTILIZER HOPPER, 16 FURROW, 7 INCH SPACING, CONTD
13
16
15
23
22
14
18
21
17
20

Артикул

Название

Примечание

Количество

13

815176C1

ARM

- cover hold open

2шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN - c1evis

2шт.

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

14

815178C1

SPACER

SUPPORT - arm retaining

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

15

594536R1

BUSHING

- support

4шт.

16

815174C1

LATCH

- cover

1шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

2шт.

17

N32176

SPRING

- latch

2шт.

18

398304R1

SPRING

- return

2шт.

20

815841C1

COVER

ASSEMBLY - fertilizer

1шт.

21

815891C1

SPRING

- fertilizer cover

4шт.

22

816764C1

CLAMP

- hand rail

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

596812R1

BOLT - round head square neck, 3/8 NC x 2 inch

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

23

816765C1

TUBE,1.05" OD, 55.7, 4.5" Length

- hand rail (For drills used in England)

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

Выбрано товаров: 25
