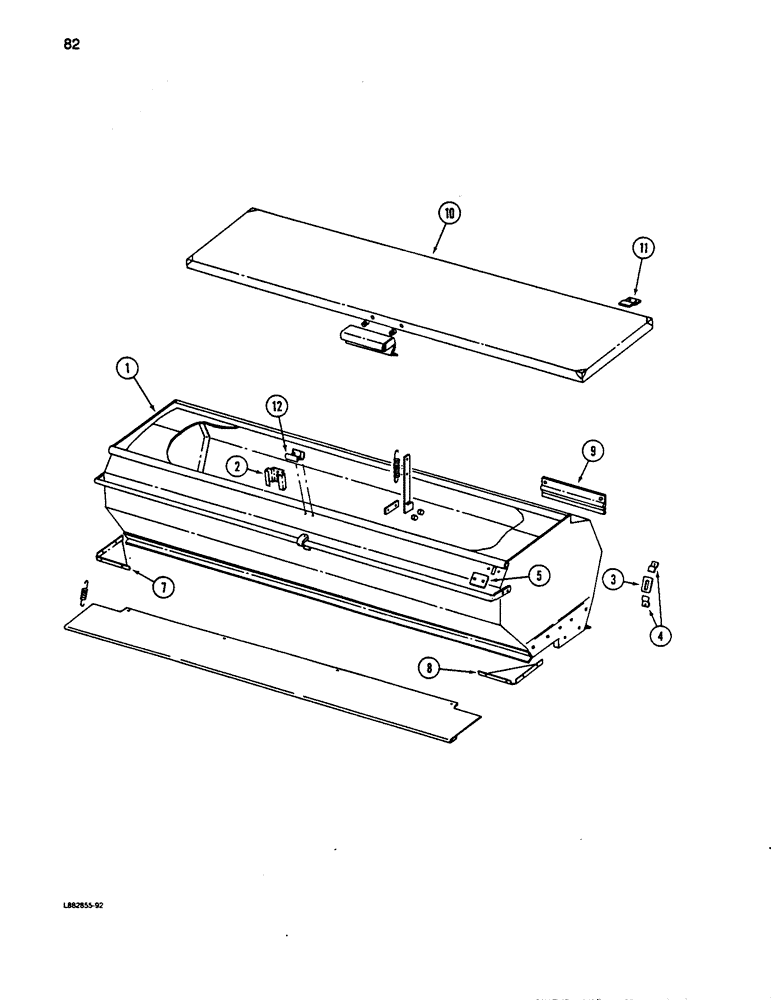

Запчасти Case IH 5100 (082) - GRAIN AND FERTILIZER HOPPER, 16 FURROW, 7 INCH SPACING

1

819057C94

HOPPER

ASSEMBLY - grain and fertilizer

1шт.

819809C2

DECAL

- caution

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

2шт.

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

598808R1

SCREW,Short NK, 3/8"-16 x 1/2", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1/2 inch

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

120377

NUT,3/8" - 16, Gr 5

22шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 x 1 inch

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

2

398976R1

BRACKET

- slow moving vehicle

1шт.

3

603264R1

GLASS

WINDOW - seed vision

2шт.

4

604320R1

CLIP

- seed vision window

4шт.

27096R1

SCREW

- pan head slotted, 1/4 NC x 5/8 inch

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

5

815115C1

PLATE

COVER - fertilizer indicator access hole

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

1шт.

7

816734C1

PLATE

SUPPORT - hopper end left (Not with fertilizer)

1шт.

8

816735C1

PLATE

SUPPORT - hopper end right (Not with fertilizer)

1шт.

9

815087C1

PLATE

REINFORCEMENT - hopper axle

2шт.

10

815157C2

COVER

ASSEMBLY - hopper

1шт.

11

815173C1

HINGE

- cover

5шт.

27096R1

SCREW

- pan head slotted, 1/4 NC x 5/8 inch

10шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

12

815175C1

CLIP

- latch

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
