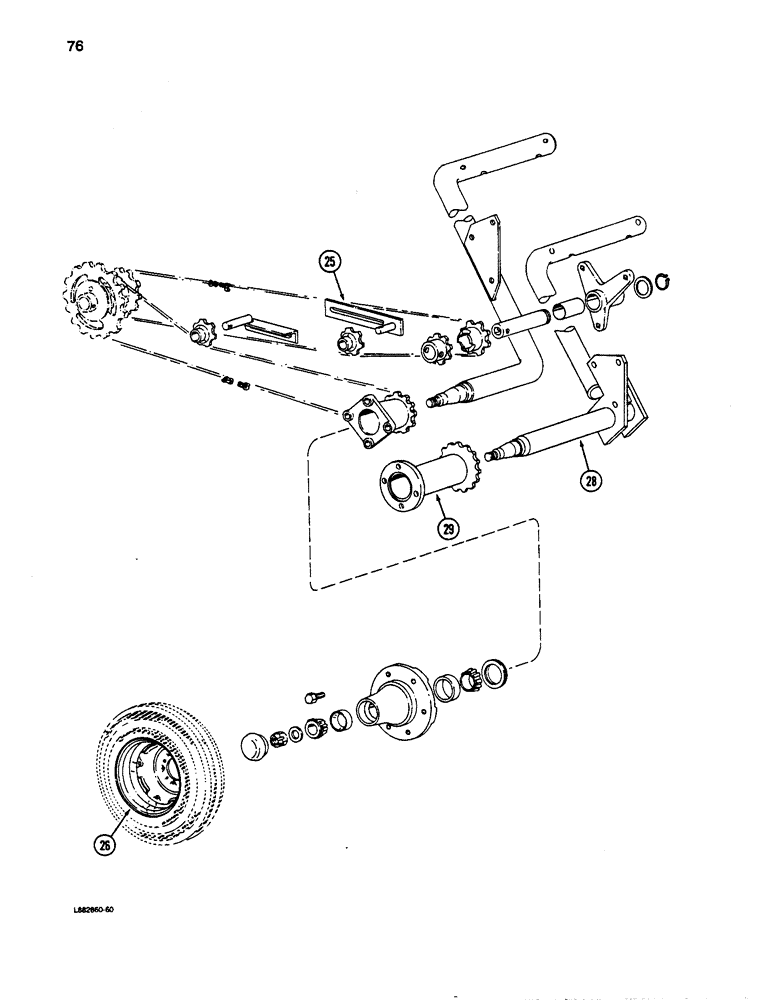

Запчасти Case IH 5100 (076) - AXLE DRIVE, CONTD

4571

SWITCH

LINK - double pitch, offset, number 2040

16шт.

456929R91

CHAIN LINK

LINK - double pitch offset, number 2050

14шт.

25

816040C2

BRACKET

ASSEMBLY - chain tightener (1 per drive)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch (1 per bracket)

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), (1 per bracket) 3/16" x 1"

1шт.

26

T53527

WHEEL

- 15x5 KB (13 x7)

2шт.

26

843406C1

WHEEL

- 20 x 7, with 1-13/16 offset (Replaces 816639C1) (20x6,24x6, 18x7,21 x7, 16x8,20x 8, 16x10and 16x7)

2шт.

26

NSS

NOT SOLD SEPARAT

WHEEL - 28 inch (England, for service purchase locally) (13x7, 16x7and20x6)

2шт.

28

841047C91

AXLE

ASSEMBLY - single and double drive 28 inch wheels, left

1шт.

28

841048C91

AXLE

ASSEMBLY - single and double drive 28 inch wheels, right

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

467750R1

WASHER

- f1at,25/32 x 1-1/2 x 7/64 inch

2шт.

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

29

819585C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - wheel 24 tooth (1 per drive, with 28 inch wheels)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
