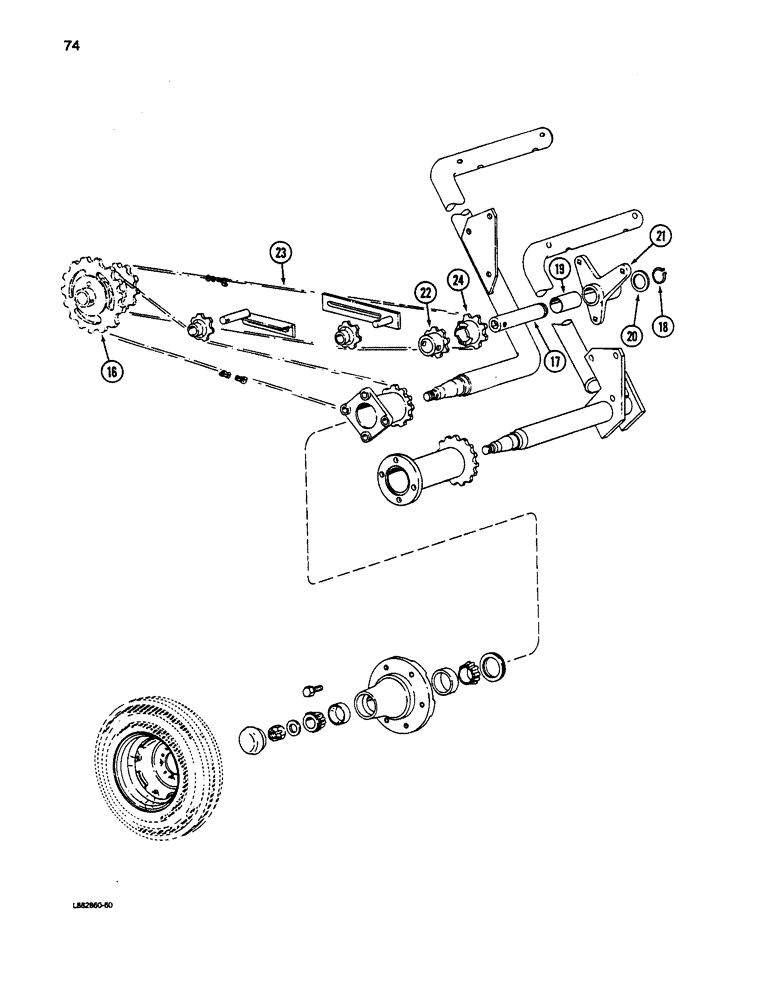

Запчасти Case IH 5100 (074) - AXLE DRIVE, CONTD

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

16

815241C1

DRIVE SPROCKET

SPROCKET - countershaft clutch 24 tooth, left (1 per drive with 15 inch wheels)

1шт.

16

815240C1

DRIVE SPROCKET

SPROCKET - countershaft clutch 18 tooth, right (1 per drive with 20 and 28 inch wheels)

1шт.

16

815239C1

DRIVE SPROCKET

SPROCKET - countershaft clutch 18 tooth, left (1 per drive with 20 and 28 inch wheels)

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8 inch

1шт.

01331

PIN - headed, 3/8 x 2 inch

1шт.

177923

COTTER PIN

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

17

815140C1

SLEEVE

- grain feed drive (1 per drive)

1шт.

18

659380R1

SNAP RING,#137, Ext

Ring, Snap, , 1 per drive #137, Ext

1шт.

19

815144C1

BUSHING,34.92mm ID x 38.1mm OD x 57.15mm L

- support bearing

1шт.

20

608085R1

WASHER

- flat, 1-13/32 x 2 x 3/64 inch (3 per drive)

3шт.

21

815143C11

BRACKET

BEARING ASSEMBLY - drive sleeve support (Includes Ref. 19)(1 per drive)

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8 inch

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

22

815141C1

DRIVE SPROCKET

SPROCKET - fertilizer drive 8 tooth (Regular speed drive with 7 tooth grain driven sprocket)(1 per drive)

1шт.

22

815771C1

DRIVE SPROCKET

SPROCKET - fertilizer drive 16 tooth (Special speed drive with 14 tooth grain driven sprocket)(Also order 815770R1)(1 per drive)

1шт.

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN - headed, 3/8 x 2-1/4 inch (1 per sprocket)

1шт.

177923

COTTER PIN

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

23

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain drive (1 per drive with 7 tooth grain driven sprocket)(See Note A)

1шт.

23

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain drive (1 per drive with 14 tooth grain driven sprocket)(See Note B)

1шт.

24

815142C1

DRIVE SPROCKET

SPROCKET - grain driven 7 tooth (Regular speed drive with 8 tooth fertilizer drive sprocket)(1 per drive)

1шт.

24

815770C1

DRIVE SPROCKET

SPROCKET - grain driven 14 tooth (Special slow speed drive with 16 tooth fertilizer drive sprocket) (Also order 815771 C1)(1 per drive)

1шт.

24

815770C1

DRIVE SPROCKET

1шт.

SPROCKET - grain driven 14 tooth soybean (1 per drive) (Use with 16 tooth fertilizer drive sprocket)(Also order 456929R91 offset links, 7 per drive) NOTE A: For service order 33 links from bulke 569089R91 chain (10 ft. roll). 1-587372R91 connecting link and 2-456929R91 offset link. NOTE B: For service order 37 links from bulk 5690B9R91 chain (10 ft. roll). 1-587372R91 connecting link and 2-456929R91 offset link.

1шт.
