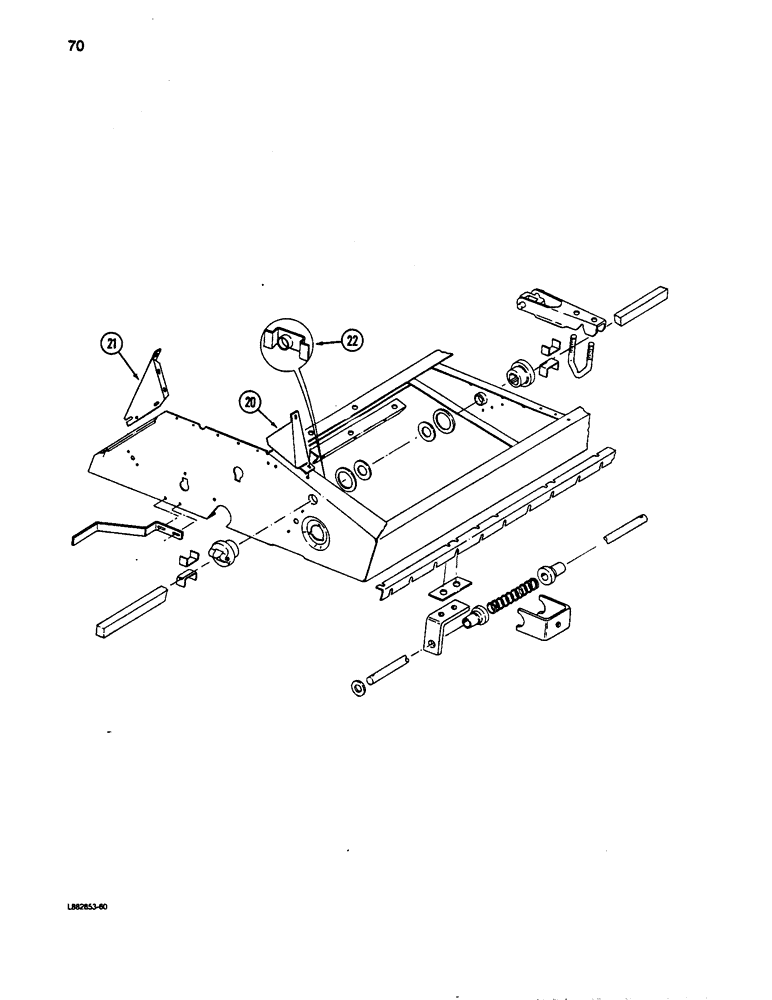

Запчасти Case IH 5100 (070) - MAIN FRAME, CONTD

20

818340C1

FILLER

PANEL - frame end front right

1шт.

20

818339C1

FILLER

PANEL - frame end front left

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

21

818342C1

FILLER

PANEL - frame end rear right

1шт.

21

818341

PANEL - frame end rear left

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

4шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

22

603195R1

SUPPORT ASSY.

SUPPORT - rockshaft

4шт.
