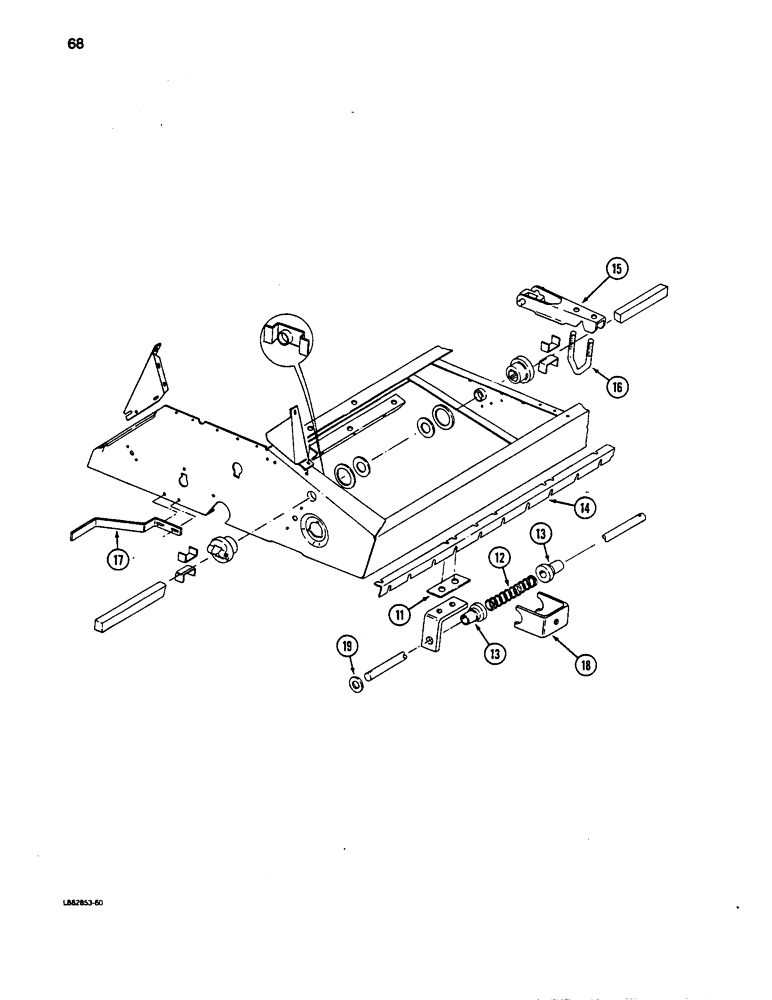

Запчасти Case IH 5100 (068) - MAIN FRAME, CONTD

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

192-23

LOCK WASHER,1/2"

(1 used per bolt)

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 7/64 inch (1 used 20 x 6; 2 used 20 x 8 and 16x10;3 used 16x7,18x7 and 16x8

1шт.

11

815263C1

BAR

support angle spacer 3 used 66x 77,18x7 and 16x8; 4 used 13x 7; 7 used 20x6,20x8 and 16x 10; 8 used 24 x 6 and 21 x 7)

1шт.

12

16046D

SPRING

drawbar lock (1 used per furrow opener)

1шт.

13

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

drawbar lock (2 used per furrow opener)

1шт.

14

815265C2

ANGLE

furrow opener spacing, left (13 x 7)

1шт.

14

815266C2

ANGLE

furrow opener spacing, right (13 x 7)

1шт.

14

815267C2

ANGLE

furrow opener spacing, left (16 x 7)

1шт.

14

815268C2

ANGLE

furrow opener spacing, right (16 x 7)

1шт.

14

815269C2

HITCH BRACKET

furrow opener spacing, left (18 x 7)

1шт.

14

815270C2

HITCH BRACKET

furrow opener spacing, right (18 x 7)

1шт.

14

815271C2

ANGLE

furrow opener spacing, left (20 x 6)

1шт.

14

815272C2

ANGLE

furrow opener spacing, right (20 x 6)

1шт.

14

815273C2

HITCH BRACKET

furrow opener spacing, left (24 x 6)

1шт.

14

815274C2

HITCH BRACKET

furrow opener spacing, right (24 x 6)

1шт.

14

815275C2

HITCH BRACKET

furrow opener spacing, left (16 x 8)

1шт.

14

815276C2

HITCH BRACKET

furrow opener spacing, right (16 x 8)

1шт.

14

815277C2

HITCH BRACKET

furrow opener spacing, left (20 x 8)

1шт.

14

815278C2

HITCH BRACKET

furrow opener spacing, right (20 x 8)

1шт.

14

815279C2

HITCH BRACKET

furrow opener spacing, left (16 x 10)

1шт.

14

815280C2

HITCH BRACKET

furrow opener spacing, right (16 x 10)

1шт.

14

816702C2

ANGLE

Bfurrow opener spacing, left (21 x 7)

1шт.

14

816703C2

ANGLE

furrow opener spacing, right (21 x 7)

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(6 used 13x7, 20x6, 24x6, 20x8, 16x10, 21x7; 4 used 16x7, 18x7)

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(1 used per bolt)

1шт.

192-23

LOCK WASHER,1/2"

(1 used per bolt)

1шт.

178374R1

WASHER

(1 used per bolt)

1шт.

15

815281C2

ARM

ASSEMBLY - rockshaft lift (1 used per furrow opener)

1шт.

16

815284C1

BOLT,3/8" - 16 x 2 1/2"

U-BOLT - lift arm (1 used per arm assembly)

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

(2 used per U-bolt)

1шт.

17

816739C1

BLADE

wheel mud scrapper (13x7, 16x7, 21 x7, 20x6and 24x6)

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

192-21

LOCK WASHER,3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 7/64 inch

4шт.

18

815753C1

CHANNEL

BRACKET - drawbar release

1шт.

19

21753R1

WASHER

flat, 25/32 x 1-1/2 x 1/16 inch

2шт.
