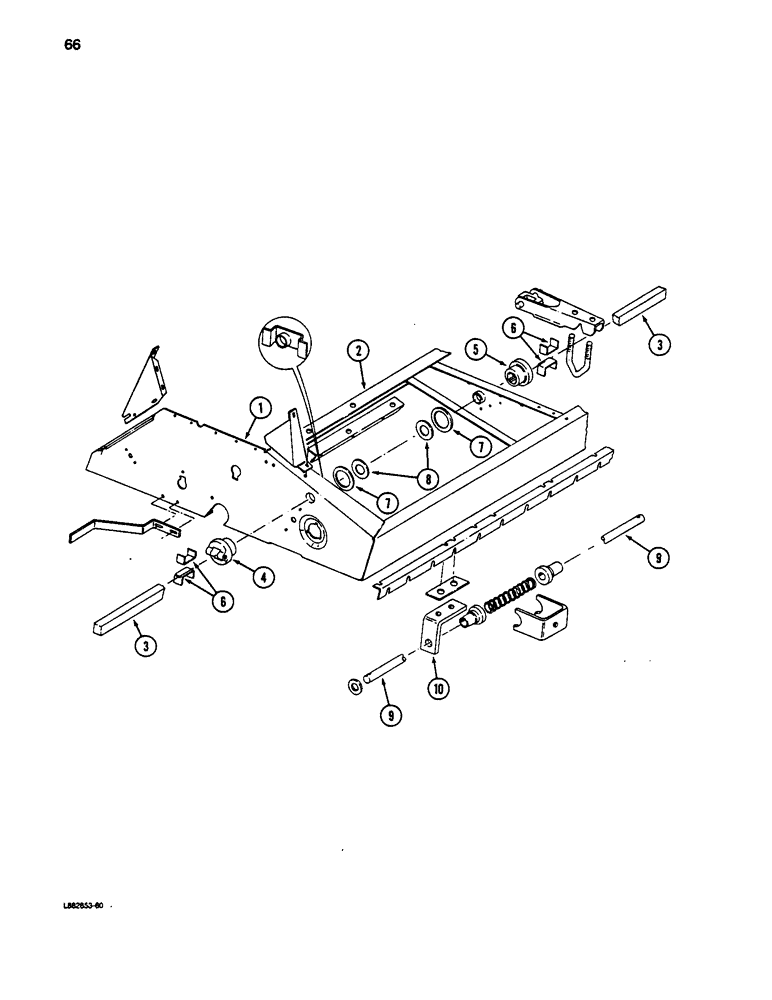

Запчасти Case IH 5100 (066) - MAIN FRAME

1

819062C92

FRAME

ASSEMBLY - main (13 furrow x 7 inch spacing)

1шт.

1

819063C93

FRAME ASSY

FRAME ASSEMBLY - main (16 furrow x 7 inch spacing)

1шт.

1

819064C94

FRAME ASSY

FRAME ASSEMBLY - main (20 x 6, 18 x 7 and 16 x 8)

1шт.

1

819065C94

FRAME ASSY

FRAME ASSEMBLY - main (24 x 6 and 21 x 7)

1шт.

1

819066C94

FRAME ASSY

FRAME ASSEMBLY - main (20 x 8 and 16 x 10)

1шт.

REF

INSTRUCTION

DECAL - caution (See Page 203)

1шт.

2

815023C1

ANGLE

BRACKET - crossmember reinforcing, left (See Note)

1шт.

2

815024C1

ANGLE

BRACKET - crossmember reinforcing, right (See Note)

1шт.

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

NSS

NOT SOLD SEPARAT

BAR - rockshaft, 97-1/2 inch, 13 furrow x 7 inch spacing (Order 815100C1 and, Serial Range: cut-length)

1шт.

3

815100C1

BAR

- rockshaft, 117-1/2 inch, 16 furrow x 7 inch

1шт.

3

NSS

NOT SOLD SEPARAT

BAR - rockshaft, 66-5/16 inch, 20, 18 and 16 furrow x 6,7 and 8 inch spacing (Order 603919R1 and, Serial Range: cut-length)

1шт.

3

603919R1

BAR

- rockshaft, 71-1/2 inch

2шт.

3

NSS

NOT SOLD SEPARAT

BAR - rockshaft, 75-13/16 inch, 24 furrow x 6 inch and 21 furrow x 7 inch spacing (Order 603164R1 and, Serial Range: cut-length)

2шт.

3

NSS

NOT SOLD SEPARAT

BAR - rockshaft, 81-13/16 inch, 20 furrow x 8 inch and 16 furrow x 10 inch spacing (Order 603164R1 and, Serial Range: cut-length)

2шт.

3

603164R1

ROCKSHAFT

BAR - rockshaft, 94-5/16 inch

2шт.

Note - Ref #3 (P/N 1980559C1 will be used on the following drill sizes: 24x6, 21x7, 20x8, and 16x10. 603164R1 will be used in the 20x8 and 16x10.

1шт.

4

603114R11

TRUNNION

- rockshaft end (2 per bar)

1шт.

102907

SET SCREW,Sq Hd, 7/16"-14 x 1"

SCREW - square head cup point, set 7/16 NC x 7/8 inch (1 - used per trunnion)

1шт.

5

815086C1

TRUNNION

- rockshaft intermediate (3 used 13 x 7; 4 used 20 x 6, 16x 8, 18x7; 5 used 16x7; 6 used24x6,21 x7,20x8 and 16x 10) UAR

1шт.

6

603196R1

CHANNEL

- trunnion retaining (10 used 13 x 7; 14 used 16 x 7; 16 used 20x6, 16x8, 18 x7; 20 used24x6,21 x7, 20x8 and 16x10)

1шт.

7

23696R1

WASHER

- flat, 1-27/32 x 2-3/4 x 1/16 inch (5 used 13 x 7; 7 used 16x7;8 used 20x6,16x8,18x7;10 used 24x6,21x7, 20x 8 and 16x 10)

1шт.

8

22766R1

WASHER

- flat, 1-13/32 x 2-1/4 x 3/8

1шт.

9

815257C1

ROD

- drawbar pivot (13 furrow x 7 inch spacing)

1шт.

9

B15258C1

ROD - drawbar - pivot (16 furrow x 7 inch spacing)

1шт.

9

815259C1

DRAWBAR

ROD - drawbar pivot (20 x 6, 18 x 7 and 16 x 8)

1шт.

9

815260C1

ROD

- drawbar pivot (24 x 6 and 21 x 7)

1шт.

9

815261C1

DRAWBAR

ROD - drawbar pivot (20 x 8 and 16 x 10)

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

10

815262C1

ANGLE

BRACKET - pivot shaft support (6 used 13 x 7; 7 used 16 x 17. 18 x7 and 16x 8;9 used 20x6,20x 8 and 16x 10; 10 used 24 x 6 and 21 x 7)

1шт.
