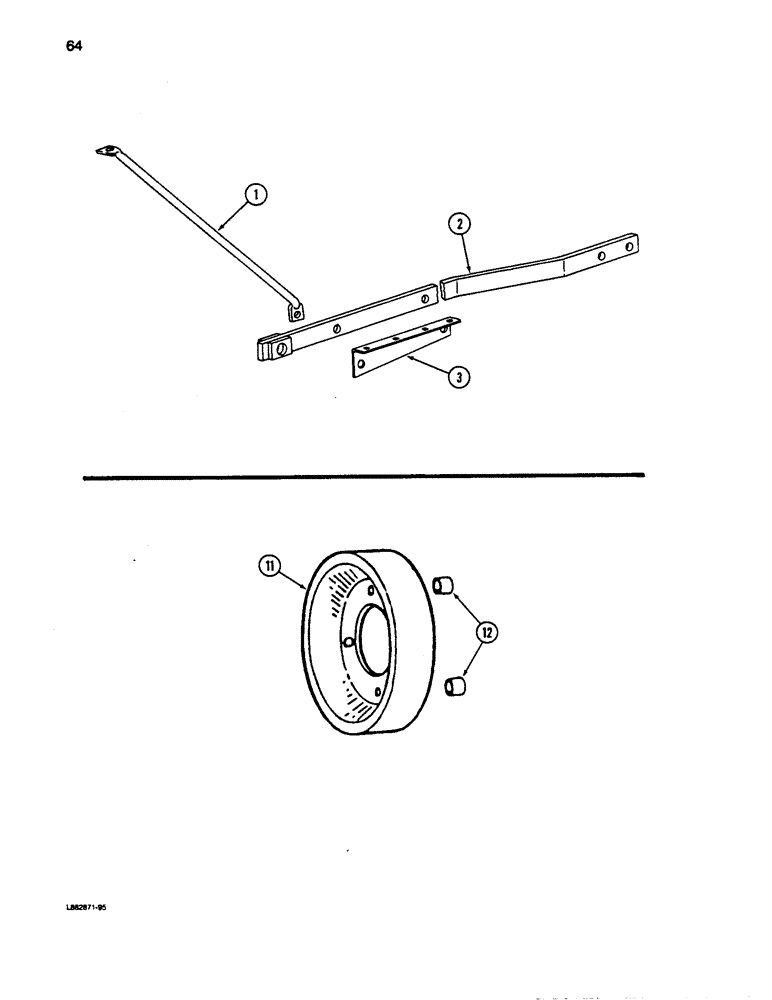

Запчасти Case IH 5100 (064) - TRAILING HITCH DRAWBAR, DEPTH BANDS

1

815714C1

ROD

- drawbar brace (Used with high mounted foot boards only)

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck 5/16 NC x 3/4 inch

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

120376

NUT,5/16"-18, G5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

2

815710C2

DRAWBAR

- trailing hitch

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

3

815713C1

ANGLE

- drawbar support

1шт.

Used with low mounted footboards, for basic drills also for drills with 20 inch wheels for England

1шт.

3

843210C1

ANGLE BAR

ANGLE - drawbar support

1шт.

Used with low mounted footboards, for drills with 28 inch wheels for England.

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck 5/16 NC x 3/4 inch

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

11

524671

BRACKET

BAND - 8-3/4 inch diameter depth (For 2-3/4 inch penetration)

1шт.

11

493540R2

DRUM

BAND - 10-1/2 inch diameter depth (For 1-3/4 inch penetration)

1шт.

11

542555R2

DRUM

BAND - 11 inch diameter depth (For 1-1/2 inch penetration)

1шт.

11

461915R1

DRUM

BAND - 11-3/8 inch diameter depth (For 1-1/4 inch penetration)

1шт.

11

524670R1

DRUM

BAND - 9-7/8 inch diameter depth (For 2 inch penetration)

1шт.

12

525820R1

SPACER,3/8" Pipe x .469"

- depth band

2шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck 5/16 NC x 1-1/4 inch

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.
