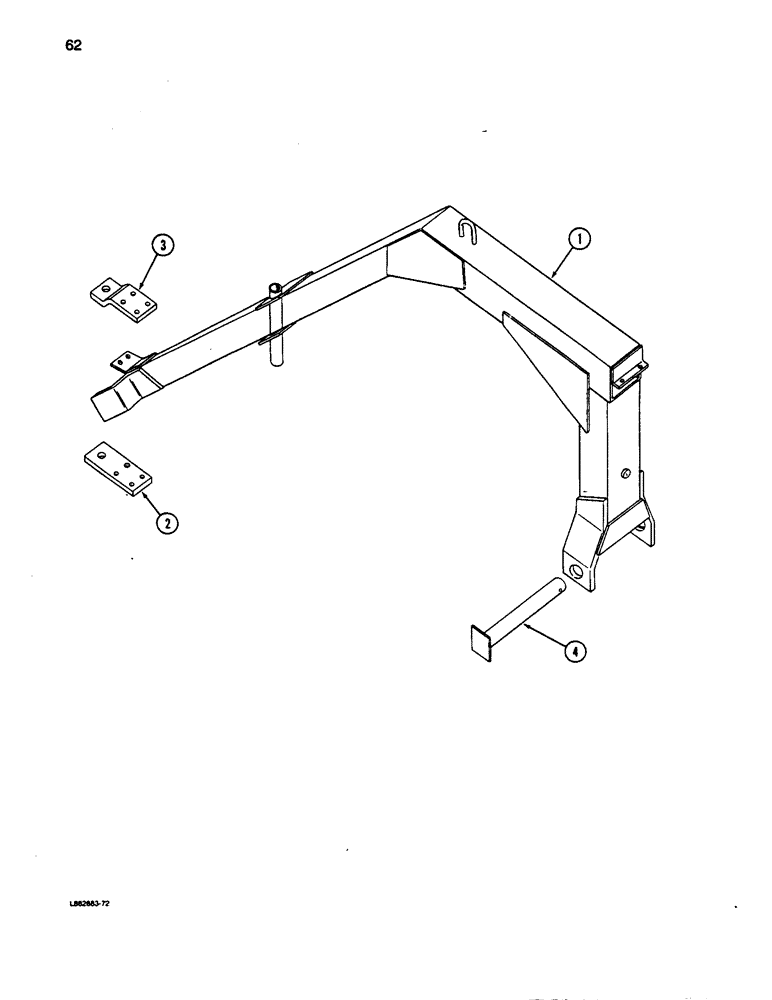

Запчасти Case IH 5100 (062) - TWO DRILL HITCH, HITCH BOOM

1

817600C1

BOOM

- hitch

1шт.

2

841066C1

BAR

- hitch

1шт.

3

841091C1

SUPPORT

- hitch

1шт.

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

- hex, 1 NC x 5 inch

1шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

9849633

NUT,1"-8, G5

2шт.

4

817620C1

PIVOT PIN

PIN - pivot, boom

1шт.

28003R1

PIN,1/2" x 3 1/2", Coiled

1шт.
