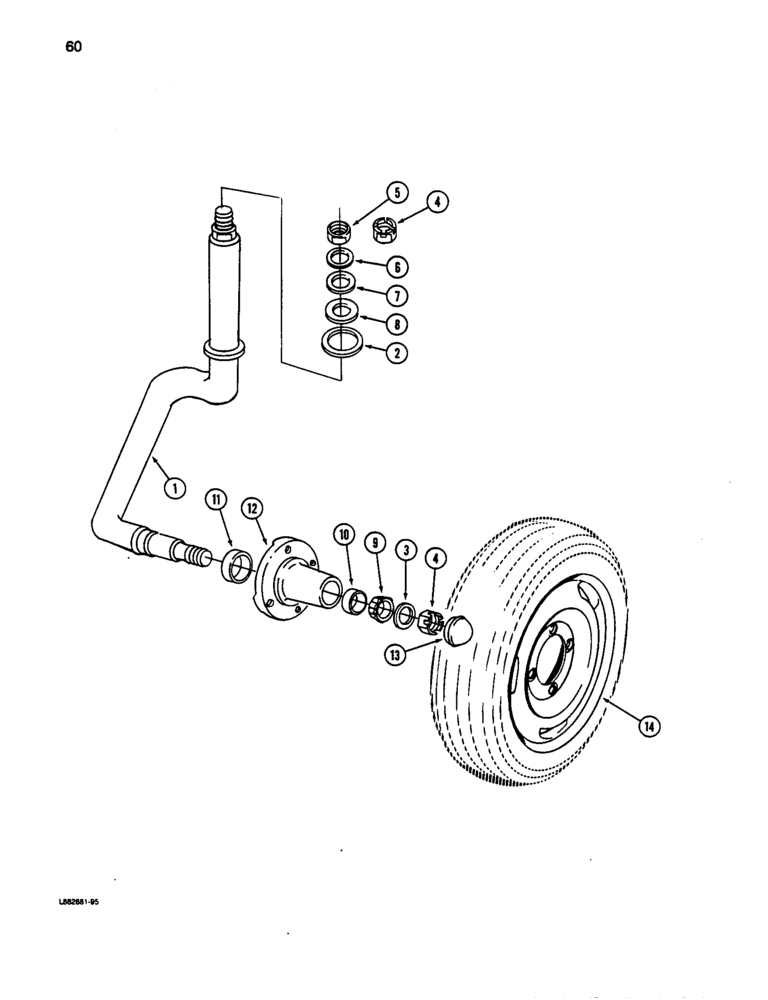

Запчасти Case IH 5100 (060) - TWO DRILL HITCH, CASTER WHEEL

843189C91

KNUCKLE

AXLE ASSEMBLY - caster wheel

1шт.

1

NSS

NOT SOLD SEPARAT

AXLE - caster wheel (Order 843189C91)

1шт.

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

2

22811R1

WASHER

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

3

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

4

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

2шт.

5

195-103

WASHER,5/16"

NUT - hex, 3/4 inch NF

1шт.

6

23245R1

WASHER

- flat, 25/32 x 1-3/4 x 5/32 inch

1шт.

7

829962C1

SPRING WASHER

WASHER - spring

1шт.

8

829963C1

WASHER

- flat, 25/32 x 2-3/4 x 5/32 inch

1шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

1шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

10

651814R1

BEARING CUP

CUP - bearing, outer

1шт.

11

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

- cone and seal, inner

1шт.

12

591535R1

HUB

- caster wheel (Replaces 619353R1)

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- wheel

4шт.

13

602959R1

PLUG

CAP - hub

1шт.

14

455169R92

WHEEL

- 15 x 4-1/2 KB

1шт.

387897R91

VALVE STEM

VALVE - tire

1шт.
