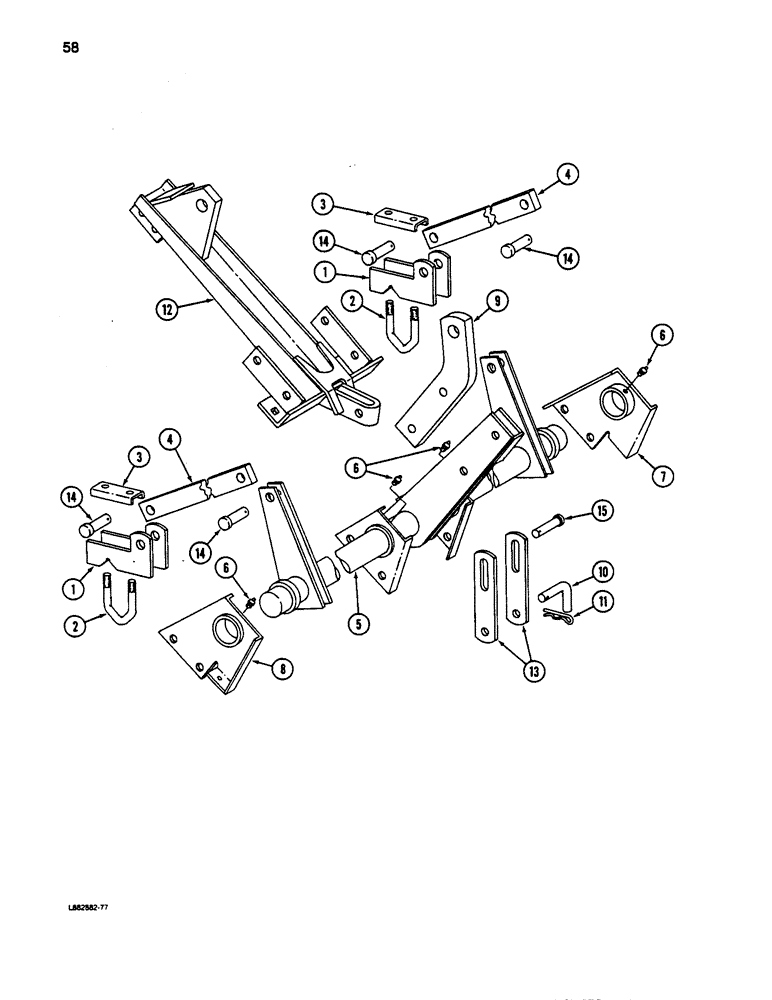

Запчасти Case IH 5100 (058) - TWO DRILL HITCH, HYDRAULIC LIFT ARM

1

1277750C1

ARM, LIFT

ARM - lift, rockshaft

4шт.

2

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - rockshaft lift arm

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

3

603393R1

CHANNEL

- lift arm bar retainer

2шт.

4

817295C1

BAR

- hydraulic 1ift

2шт.

5

1277744C1

HYD ROCKSHAFT

ROCKSHAFT - hydraulic lift

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease 1/4 inch

4шт.

7

1277752C1

HITCH BRACKET

BRACKET - rockshaft, outer left

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

WASHER - flat, 3/8 x 3/4 x 3/64 inch

1шт.

8

1277753C1

HITCH BRACKET

BRACKET - rockshaft, outer right

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

- hex, 1/2 NC x 1-1/4 inch

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

9

1277751C1

BAR

- hydraulic cylinder lift bar

1шт.

10

600829R2

ROD

- cylinder lock

1шт.

11

520175R1

CLIP

PIN - hair

1шт.

12

1277756C1

SUPPORT ASSY.

SUPPORT - hydraulic Lift

1шт.

,

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 x 1-1/4 inch

3шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

7шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

13

1277749C1

BAR

- lock-out

2шт.

14

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis

4шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

15

105058H

CLEVIS PIN,5/8" x 2.715"

PIN - c1evis

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.
