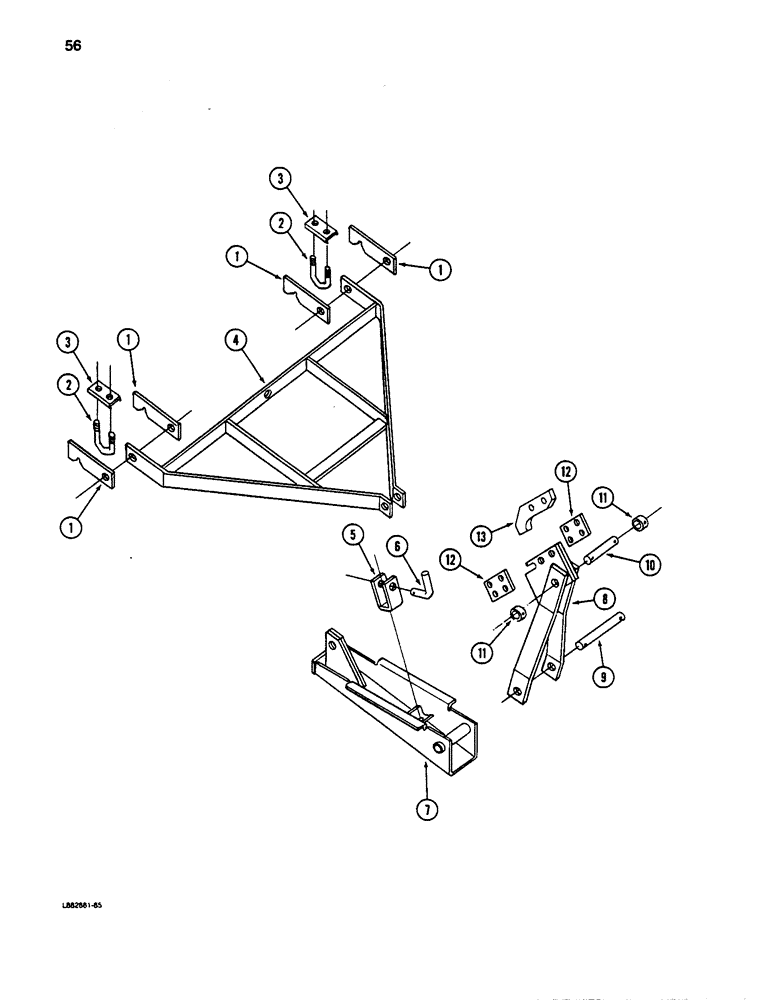

Запчасти Case IH 5100 (056) - TWO DRILL HITCH, HYDRAULIC LIFT YOKE

1

841129C1

BAR

- rockshaft lift arm

4шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN - clevis

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

2

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - rockshaft lift arm bar

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

3

603393R1

CHANNEL

- lift arm bar retainer

2шт.

4

841

YOKE - rockshaft lift

1шт.

5

815571C1

YOKE

- rockshaft lock

1шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

6

600829R2

ROD

- cylinder lock

1шт.

520175R1

CLIP

PIN - hair

1шт.

7

841114C1

DRAWBAR SUPPORT

SUPPORT -. hydraulic lift

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

20601

WASHER - flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

619856R1

WASHER

- flat, 13/32 x 1 x 3/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

5шт.

25526R1

NUT,1/2"-13, G8

- hex, 1/2 inch NC. Grade 8

2шт.

8

841121C1

ANCHOR

- hydraulic cylinder front

1шт.

9

841144C1

PIVOT PIN

PIN - cylinder anchor pivot

1шт.

10

841143C1

PIN

- rockshaft lift yoke pivot

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 3/64 inch

2шт.

11

843252C1

SPACER

- pivot pin

2шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

12

819262C1

LEDGER PLATE

BAR - cylinder mounting tie

2шт.

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 x 2-1/4 inch

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

129-107

NUT,5/8"-11, G5

Retainer - cylinder PIN - headed, 5/8 x 2 inch PIN - cotter, 3/16 x 1 inch 5/8"-11, G5

1шт.

13

819383C1

RETAINER

1шт.
