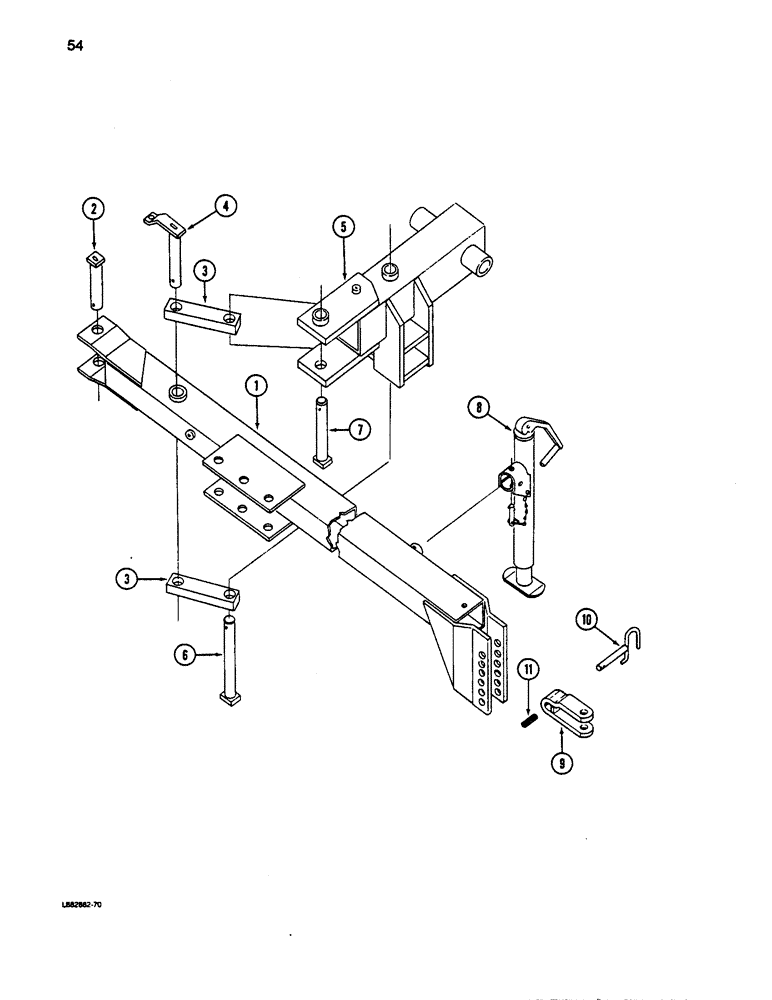

Запчасти Case IH 5100 (054) - TWO DRILL HITCH, BEAM AND BOOM PIVOT

1

817624C2

BEAM ASSY.

BEAM - hitch

1шт.

2

817631C1

PIVOT PIN

PIN - hitch beam pivot

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.

3

817666C1

BAR

- pivot boom control

2шт.

.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease 1/4 inch

4шт.

4

817634C1

PIVOT PIN

PIN - control bar

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

- flat, 13/32 x 1 x 3/64 inch

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.

609376R1

WASHER

- flat, 1-25/32 x 2-1/2 x 3/32 inch

1шт.

5

817610C1

PIVOT ASSY.

PIVOT - boom

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease 1/4 inch

1шт.

6

817616C1

PIVOT PIN

PIN - pivot

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

2шт.

7

817664C1

PIVOT PIN

PIN - main beam pivot

1шт.

8

810363C91

JACK ASSY.

JACK ASSEMBLY - hitch

1шт.

9

1279227C1

TRAILER HITCH

CLEVIS - hitch

1шт.

10

1279228C1

HITCH PIN

PIN - hitch

1шт.

11

1279507C1

SPRING

- latch

1шт.

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- flat, 1-17/32 x 2-1/4 x 3/32 inch

2шт.

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.
