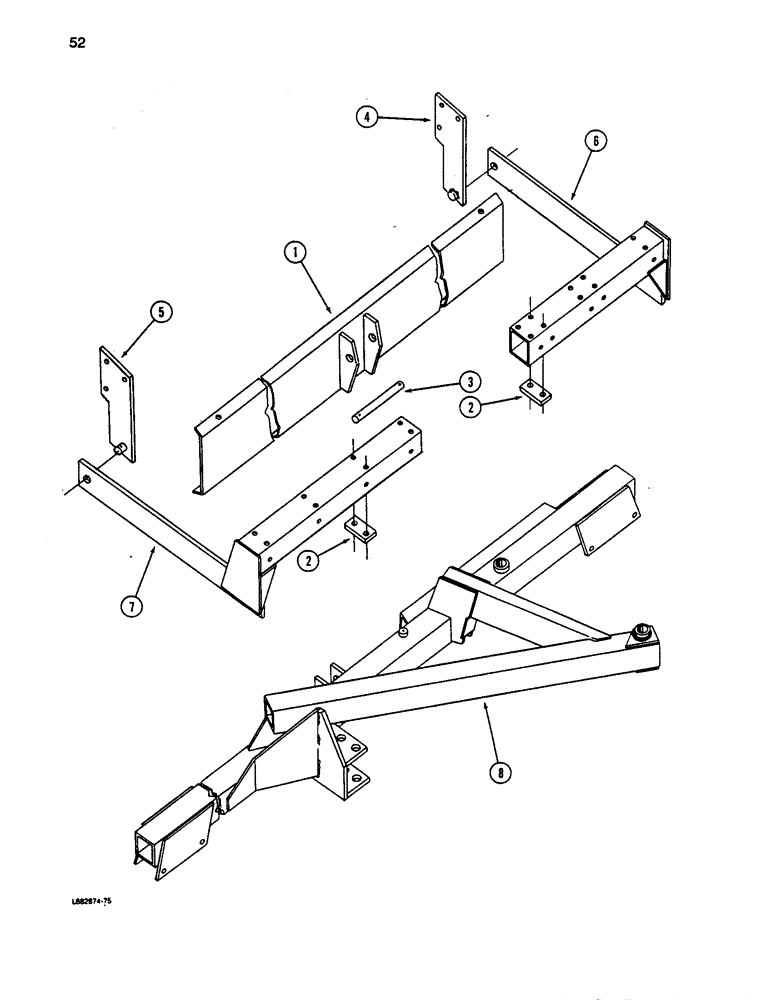

Запчасти Case IH 5100 (052) - TWO DRILL HITCH, FRAME SUPPORTS AND BEAM

1

840946C2

REINFORCEMENT

- frame front cross member

1шт.

2

843186C1

KNIFE WEAR PLATE

BAR - support tube reinforcement

4шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

614451R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/32 inch

1шт.

3

843183C1

PIN,25.4mm OD x 155mm L

- beam

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

21шт.

4

840980C1

SUPPORT

- hitch outer, 1eft

1шт.

5

840981C1

SUPPORT

- hitch outer, right

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

6

840990C1

SUPPORT

- hitch, left

1шт.

7

840995C1

SUPPORT

- hitch, right

1шт.

8

817649C1

BEAM ASSY.

BEAM - hitch

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 inch

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch

6шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.
