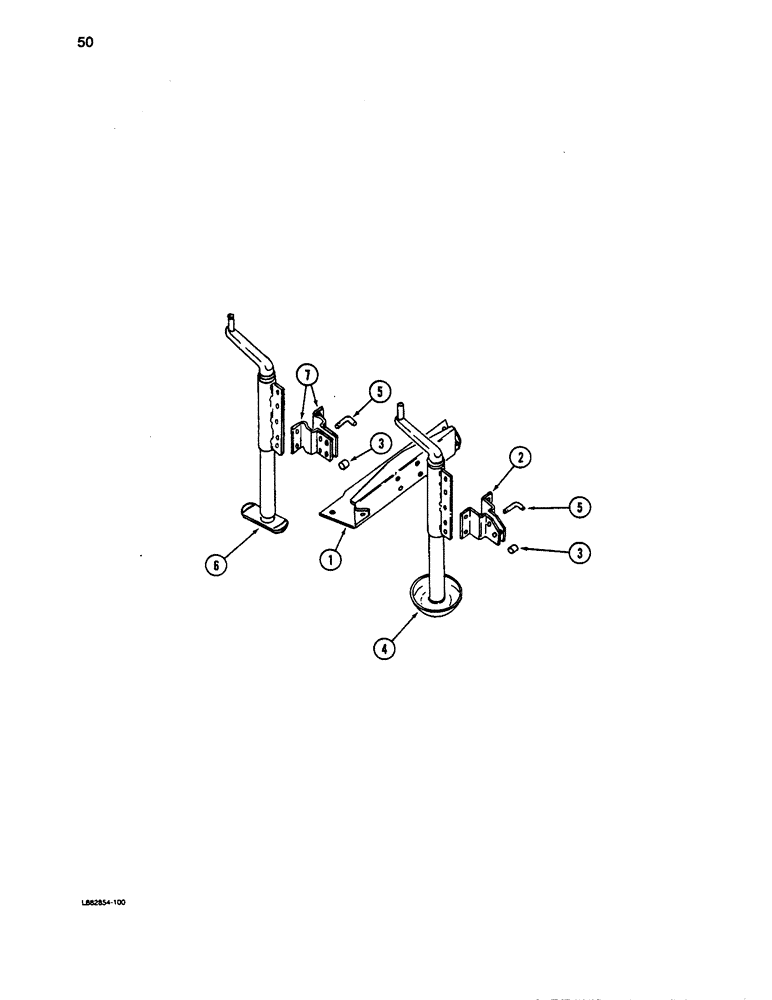

Запчасти Case IH 5100 (050) - HITCH JACK

1

815040C1

SUPPORT

- hitch stand crank

1шт.

Ref #1 - Fits betseen Ref #4 & #5 very close to Ref #6 on Page 46.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

815041C91

BRACKET

ASSEMBLY - hitch jack (Use with Ref. 4)(See Note A)

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

85960R1

WASHER

- bracket spacer

1шт.

4

815044C1

NO LONGER SERVICED

JACK ASSEMBLY - hitch (See Note A)

1шт.

5

815048C1

ROD

- jack stand lock

1шт.

586591R1

COTTER PIN

PIN - hair

1шт.

6

841183C1

JACK

ASSEMBLY - hitch (See Note B)

1шт.

7

841187C1

BRACKET

- hitch jack (Use with Ref. 6)(See Note B)

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

NOTE A: Used with basic drills with 15 and 20 inch wheels and for drills with 20 inch wheels for England. NOTE B: Used with basic drills with 15 and 20 inch wheels and for drills with 20 and 28 inch wheels for England. 3/8"-16, G5

5шт.
