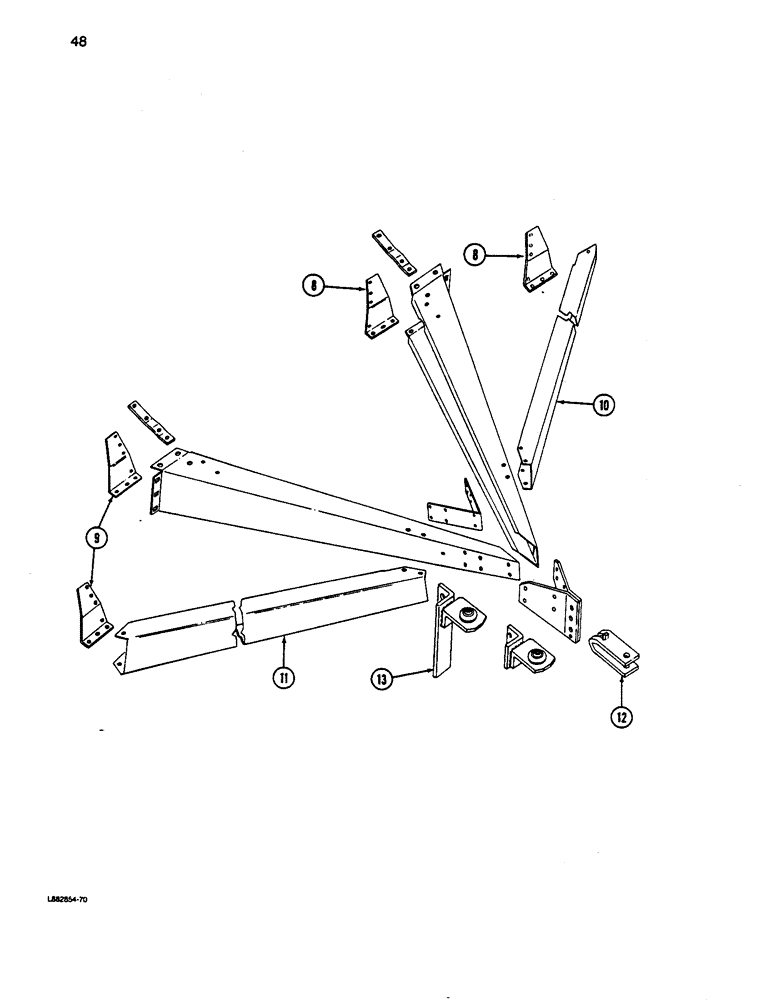

Запчасти Case IH 5100 (048) - HITCH, CONTD

8

815036C2

REINFORCEMENT

BRACE - hitch lower reinforcement, left (See Note C)

1шт.

9

815037C2

REINFORCEMENT

BRACE - hitch lower reinforcement, right (See Note C)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(See Note D) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

Quantities are per 1 brace, Ref. 8 and 9

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (See Note D) 3/8"

8шт.

Quantities are per 1 brace, Ref. 8 and 9

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

120377

NUT,3/8" - 16, Gr 5

(See Note D) 3/8"-16, G5

8шт.

Quantities are per 1 brace, Ref. 8 and 9

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

10

815038C1

CHANNEL

- hitch support, left (24 x 6, 21 x 7, 20 x 8 and 16 x 10)

1шт.

11

815039C1

CHANNEL

- hitch support, right (24 x 6, 21 x 7, 20 x 8 and 16 x 10)

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

10шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

12

815029C11

CLEVIS

ASSEMBLY - hitch

1шт.

21667R1

HEADED PIN,3/4" x 3 3/4"

PIN - clevis, 3/4 inch

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

13

843228C1

HITCH ASSY, TRAILER

HITCH ASSEMBLY - ball joint (Used on drills with 28 inch wheels for England)

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

NOTE C:1 used 13x7,16x7,18x7,20x6,16x8;2 used 24x6,21x7,20x8, 16x10. NOTE D: Items, quantities shown are per 1 brace, Ref.8and 9 3/4"-10, G5

2шт.
