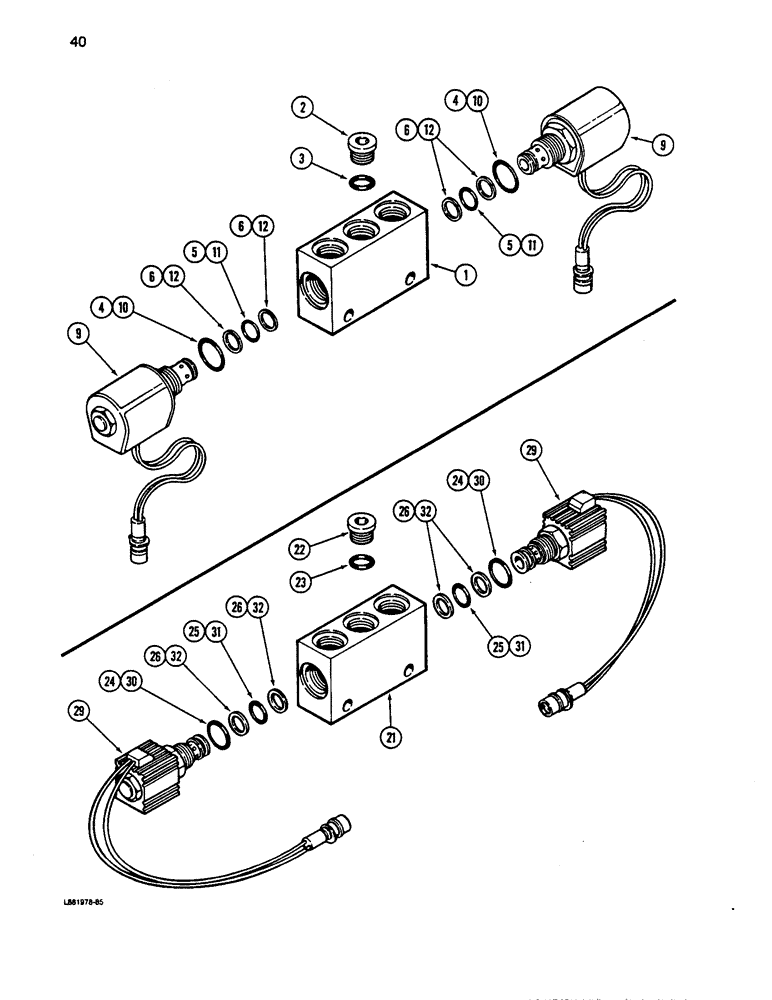

Запчасти Case IH 5100 (040) - ROW MARKER VALVE
№
Артикул
Название
Примечание
Количество
149988C92
VALVE
ASSEMBLY - row marker (Modular Controls) (Replaces 149986C91)
1шт.
1
145317C2
VALVE BODY
BODY ASSEMBLY - valve
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - 9/16-18 inch O-ring boss
1шт.
145316C1
REPAIR KIT
KIT - seal, valve assembly
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
5
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
6
NSS
NOT SOLD SEPARAT
WASHER - backup
4шт.
9
149989C91
VALVE
ASSEMBLY - solenoid
2шт.
1272308C1
SEAL KIT
KIT - seal, solenoid valve
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
12
NSS
NOT SOLD SEPARAT
WASHER - backup
2шт.
149986C91
VALVE
ASSEMBLY - row marker (Waterman)(order 149988C92)
1шт.
21
71984C3
VALVE BODY
BODY ASSEMBLY - valve
1шт.
22
NSS
NOT SOLD SEPARAT
PLUG - valve body
1шт.
142443C2
SET
KIT - seal, valve assembly
1шт.
Some parts in kit are not used in this application.
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
24
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
25
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
26
NSS
NOT SOLD SEPARAT
WASHER - backup
4шт.
29
149987C91
VALVE
ASSEMBLY - solenoid (Order 149988C92)
2шт.
30
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve (Order 142443C2)
1шт.
31
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve (Order 142443C2)
1шт.
32
NSS
NOT SOLD SEPARAT
WASHER - backup (Order 142443C2)
2шт.
Выбрано товаров: 26
