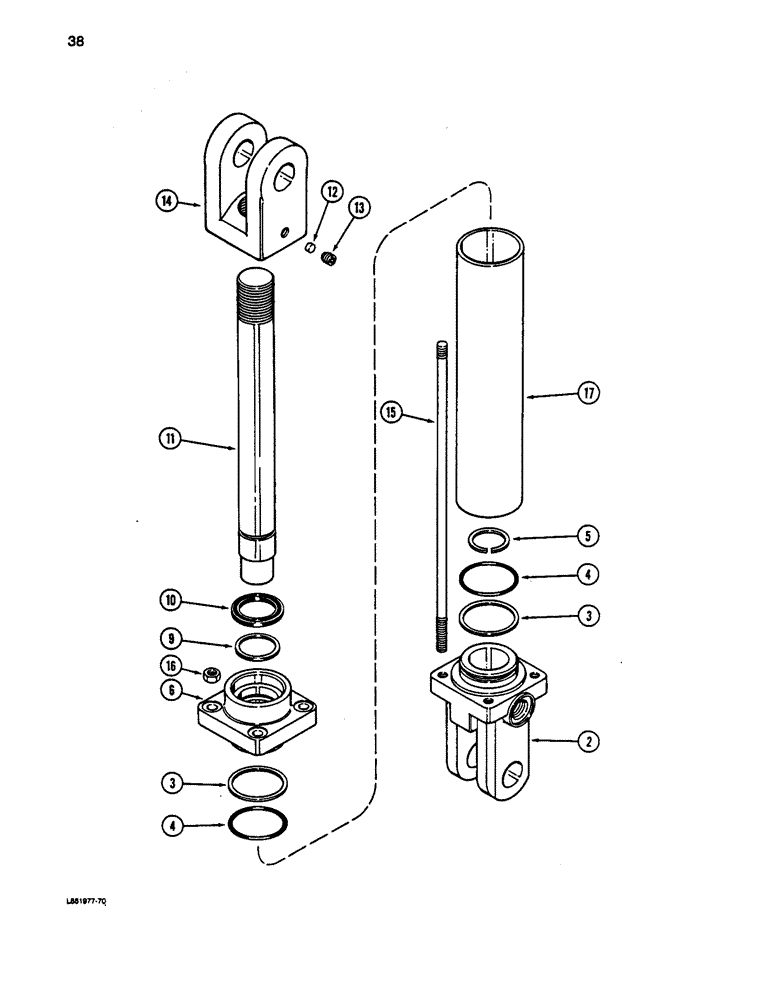

Запчасти Case IH 5100 (038) - LIFT CYLINDER, 1-1/4 X 8 INCH

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - marker lift

1шт.

2

1272768C1

HEAD

- cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - back up

2шт.

Part of gasket repair kit P/N 79974C2

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-13/16 x 2inch

2шт.

Part of gasket repair kit P/N 79974C2

1шт.

5

92888C1

RING, LOCKING

RING - retaining

1шт.

6

1272769C1

HEAD

PISTON - cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of gasket repair kit P/N 79974C2

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of gasket repair kit P/N 79974C2

1шт.

11

92887C1

PISTON ROD

ROD - cylinder piston

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - cylinder clevis

1шт.

13

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - slotted cup point, set, 3/8 NC x 3/8 inch

1шт.

14

145233C1

CLEVIS,1/4" - 12

- cylinder

1шт.

15

145248C1

ROD,3/8" - 16 x 318mm

- cylinder retaining

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

NSS

NOT SOLD SEPARAT

BARREL - cylinder (Order 1272484C92)

1шт.

79974C2

SEAL KIT

KIT - repair, Includes Ref. 3, 4, 9 and 10

1шт.
