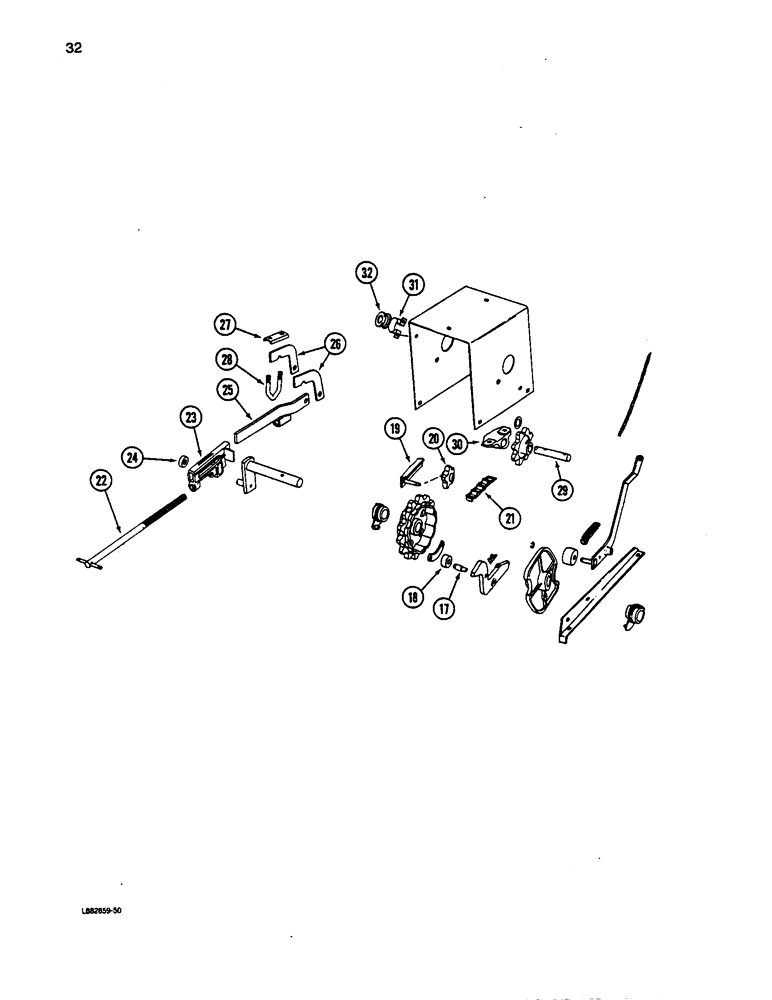

Запчасти Case IH 5100 (032) - POWER LIFT, CONTD

17

F15206

TRUNNION

PIN - roller, trip pawl

2шт.

18

F13685

PAWL

ROLLER - trip pawl

2шт.

19

815546C1

BRACKET

- chain tightener sprocket, left

1шт.

19

815547C1

BRACKET

- chain tightener sprocket, right

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

21762R1

WASHER

- 21/32 x 1-1/2 x 3/64 inch

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

603375R1

DRIVE SPROCKET

SPROCKET - chain tightener (5 tooth)

2шт.

271293

PULLEY

FITTING - grease, 5/16 inch straight

2шт.

21

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - power lift drive (See Note 8)

2шт.

22

815550C1

ADJUSTMENT SCREW

ASSEMBLY - adjusting

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT - hex, 3/4 inch NC

2шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 3/64 inch

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

23

815552C1

SLIDE

- adjustable, left

1шт.

23

815553C1

SLIDE

- adjustable, right

1шт.

24

601298R1

ROLLER

- adjustable slide

2шт.

25

815554C1

ARM

ASSEMBLY - slide connecting, left

1шт.

25

815555C1

ARM

ASSEMBLY - slide connecting, right

1шт.

26

815557C1

ARM

- rockshaft lift

4шт.

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-23/32 inch

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

27

603393R1

CHANNEL

- rockshaft lift arm clamp

2шт.

28

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - clamp

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

29

815558C1

ROD

-power lift countershaft (Use with 2 drive drills)

2шт.

Ref #29 - 815121C1 Spacer added per FEGC9923

1шт.

439-1632

HEADED PIN,9.53mm OD x 50.8mm L

PIN - headed, 3/8 x 2 inch

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

30

815122C1

BRACKET

BEARING - countershaft rod (Use with 2 drive drills)

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch straight

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

31

465622R1

CLAMP

- rope grommet

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

32

480475R1

GROMMET

- trip rope NOTE A: Quantities are for two lift units. One left unit used on 13 x 7 nd 16 x 7. One left and one right used on 20x6, 24x6, 18 x7, 21 x7, 16x 8, 20x 8 and 16x10. NOTE B: For service order 29 links from bulk CS55 chain (10 ft. roll).

2шт.
