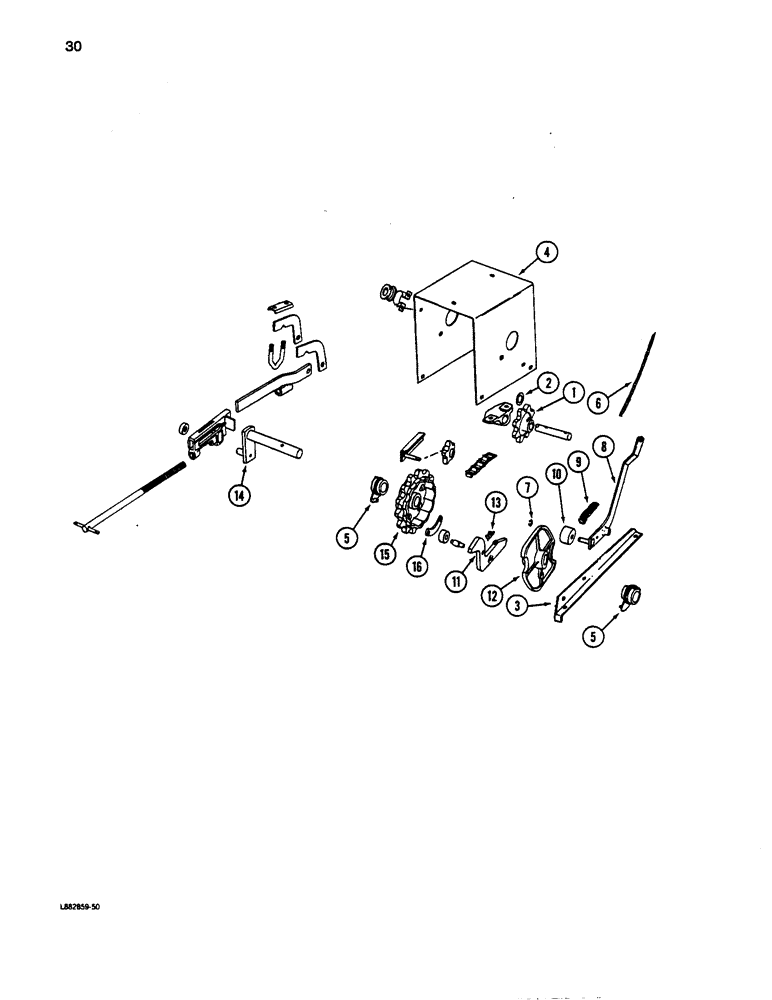

Запчасти Case IH 5100 (030) - POWER LIFT

1

B15530C1

SPROCKET - power lift drive (8 tooth)

2шт.

O1331

PIN - headed, 3/8 x 2 inch

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

2

20885R1

WASHER

- flat, 1-5/32 x 2 x 3/64 inch

2шт.

3

815531C1

SUPPORT

- power lift bracket, left

1шт.

3

815532C1

SUPPORT

- power lift bracket, right

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

4

815533C2

BRACKET

ASSEMBLY - power lift, left

1шт.

4

815534C2

BRACKET

ASSEMBLY - power lift, right

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

591714R1

WASHER

- flat, 23/32 x 1-1/4 x 3/64 inch

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

5

592770R1

CRANKSHAFT BEARING,1.257" ID x 2.12" OD x 2.06"

BEARING - crankshaft

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch

4шт.

6

NSS

NOT SOLD SEPARAT

ROPE - sisal, 5/16 x 12 foot (Dealer to supply locally)

1шт.

7

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

2шт.

8

815539C1

BRACKET

LEVER ASSEMBLY - power lift trip, left

1шт.

8

815540C1

LEVER

ASSEMBLY - power lift trip, right

1шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

4шт.

9

98457H

SPRING

- trip lever

2шт.

10

603378R2

ROLLER

- trip stop

2шт.

11

603382R1

PAWL

- power lift, left

1шт.

11

603381

PAWL - power lift, right

1шт.

12

608421R1

CARRIER

- trip pawl, left

1шт.

12

608420R1

CARRIER

- trip pawl, right

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

19972R1

PIN,11.1mm OD x 11.1mm L, Coiled

- 7/16 x 2-1/2 inch

2шт.

13

37AC

SPRING

- trip pawl

2шт.

14

815543C1

CRANK

ASSEMBLY - power lift, left

1шт.

14

815544C1

CRANK

ASSEMBLY - power lift, right

1шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 3/64 inch

4шт.

22051R1

WASHER

- flat, 1-17/32 x 2-1/4 x 3/64 inch

2шт.

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

15

603377R2

DRIVE SPROCKET

SPROCKET - clutch (14 tooth)

2шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

16

603397R1

LINK

- trip pawl carrier connecting

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch

2шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.
