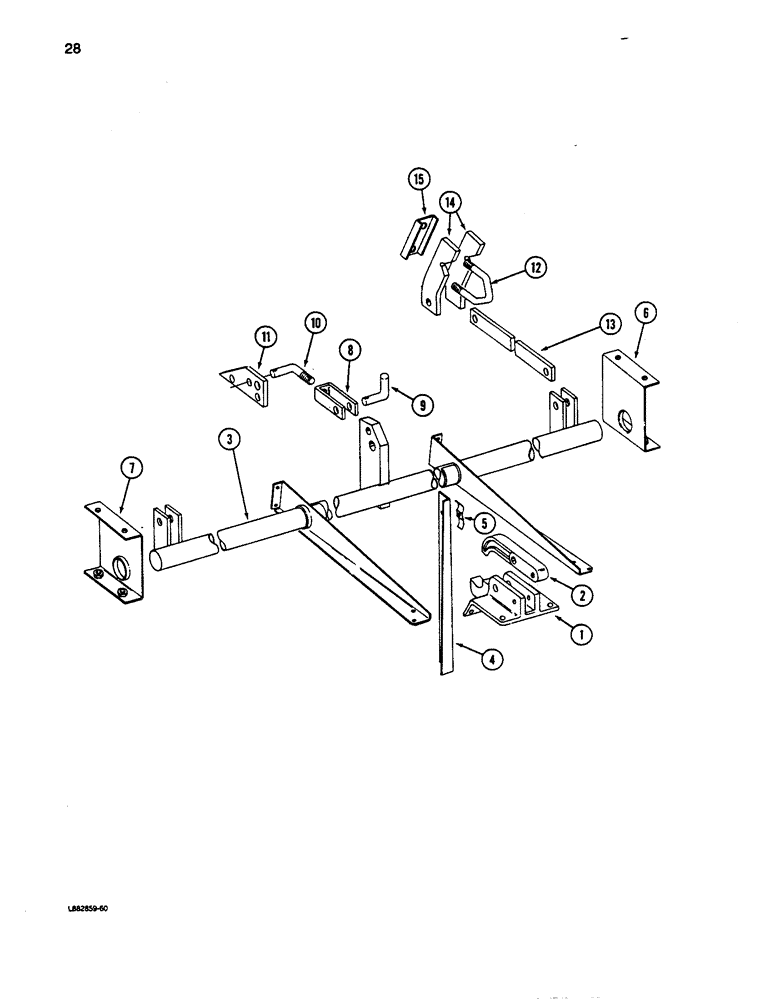

Запчасти Case IH 5100 (028) - HYDRAULIC LIFT, WITH REMOTE CONTROL HYDRAULICS

1

815560C2

BRACKET

- cylinder mounting

1шт.

Ref #1 - 815560C2 Bracket attaches to the 815040C1 Hitch Stand Crank (ref #1, Page 50)

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

815561C1

ARM

RETAINER - cylinder

1шт.

N32142

HEADED PIN,9.53mm OD x 53.98mm L

PIN - clevis, 3/8 x 2-1/8 inch

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

816926C2

ROCKSHAFT

ASSEMBLY - hydraulic lift

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

4

81557BC1

SUPPORT - hydraulic hose

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

317054R1

CLAMP

- hose support

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

.

NUT - wing, 3/8 inch NC

1шт.

6

815564C1

BRACKET

ASSEMBLY - cylinder rockshaft left

1шт.

7

815565C1

BRACKET

ASSEMBLY - cylinder rockshaft right

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

815571C1

YOKE

- rockshaft

1шт.

9

600829R2

ROD

- cylinder lock

1шт.

520175R1

CLIP

PIN - hair

1шт.

10

815572C2

ROD

- yoke connecting

1шт.

129-107

NUT,5/8"-11, G5

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

11

815521C1

BAR

- hydraulic lift connecting rod

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - rockshaft clamping

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

13

815576C1

BAR

- rockshaft connecting

2шт.

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-23/32 inch

4шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

14

815577C1

ARM

- rockshaft lift

4шт.

15

603393R1

CHANNEL

- lift arm clamping

2шт.
