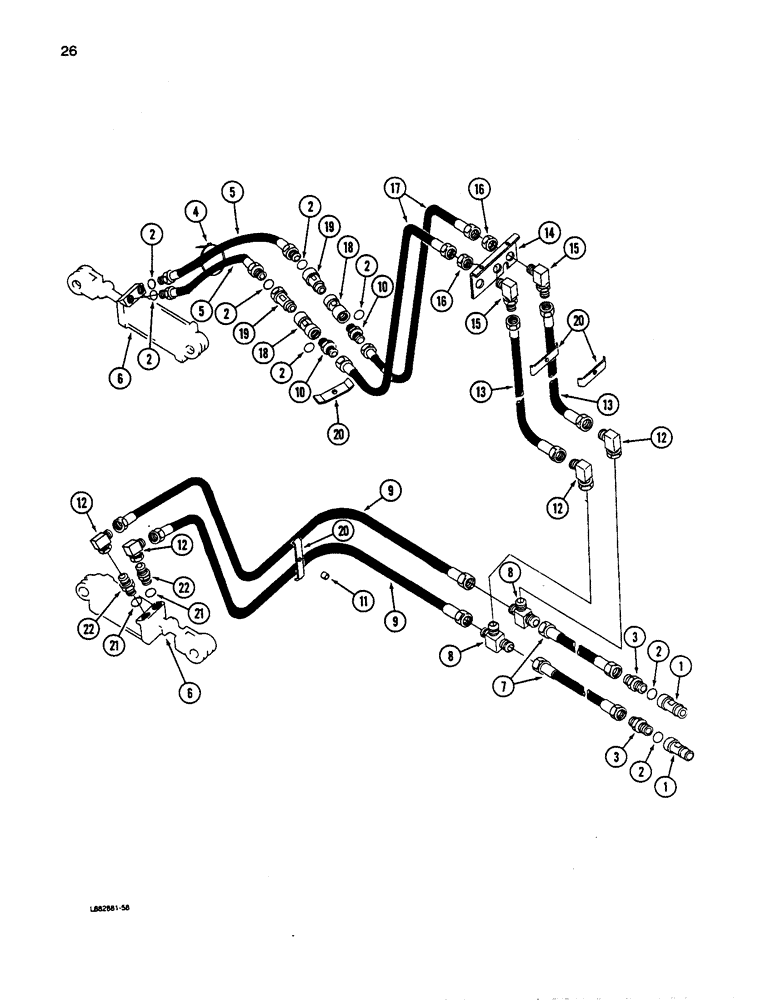

Запчасти Case IH 5100 (026) - DEPTH CONTROL HYDRAULICS, TWO DRILL HITCH

1

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 33/64 inch OD

8шт.

3

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - flared 5/8 to 1/2

4шт.

4

813579C1

CABLE TIE

STRAP - hose retaining

1шт.

5

372437R91

HOSE

ASSEMBLY - hydraulic, 112 inch long

2шт.

6

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - depth control

2шт.

79975C1

SEAL KIT

KIT - repair

1шт.

224311C1

KIT

- valve and transfer tube (replaces 1272597C91)

1шт.

61571C1

PIN

- headed

2шт.

64560C1

HEADED PIN

PIN - headed

2шт.

520175R1

CLIP

PIN - hair

4шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

UNION - reducer

2шт.

7

841044C1

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 103 inch long

2шт.

8

9402982

TEE,3/4"-16, 37 Degree

- flared, 1/2 inch

1шт.

9

841045C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 87 inch 1ong

2шт.

10

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - flared, 5/8 to 1/2 inch

2шт.

11

309710C1

SPACER,10.7mm ID x 17.14mm OD x 15.9mm L

- straight pipe 3/8 x 5/8 inch

3шт.

12

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- swivel, 90 degree

4шт.

13

841084C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 75-1/2 inch long

2шт.

14

841076C1

ANGLE

- hose support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

469997R1

ELBOW

- bulkhead, long 90 degree

2шт.

16

9403294

NUT

- lock, bulkhead union 1/2 inch long

2шт.

17

841083C1

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 142 inch long

2шт.

18

395150R91

COUPLING, QUICK, FEM

COUPLER - hose, female

2шт.

19

395149R1

QUICK MALE COUPLING

COUPLER - hose, male

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

3шт.

20

851729C1

HOSE CLAMP

CLAMP - coupling

10шт.

180089

SPRING

- hex, 5/16 NC x 2-1/4 inch

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

2шт.

22

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - swivel

2шт.
