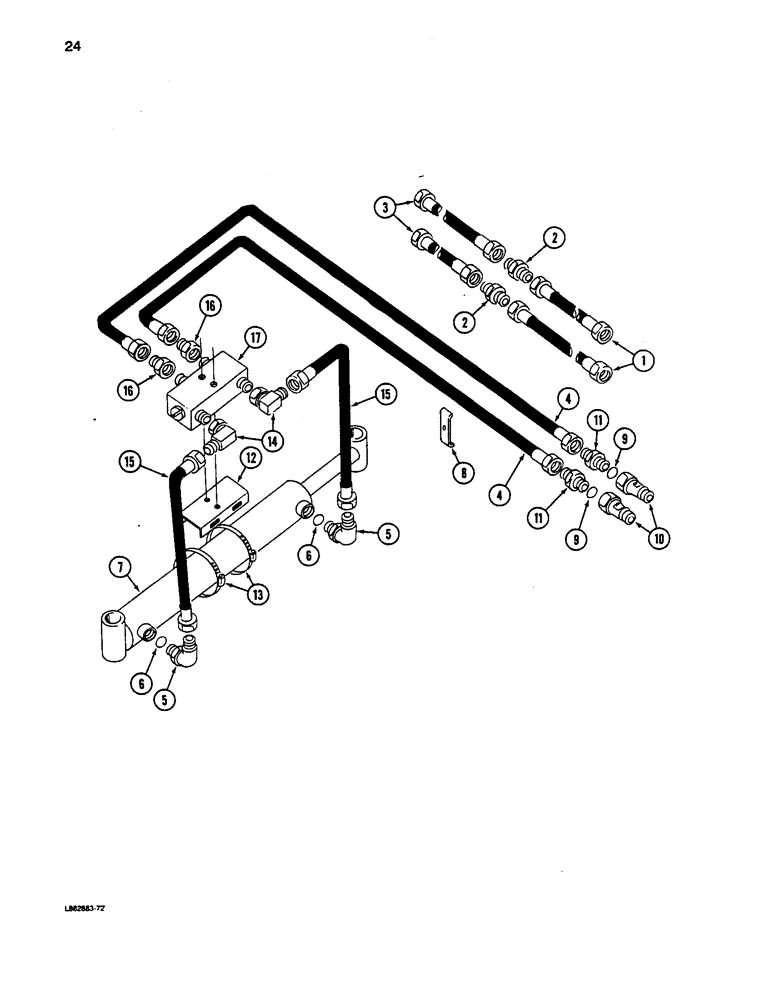

Запчасти Case IH 5100 (024) - BOOM CONTROL HYDRAULICS, TWO DRILL HITCH

1

179411C1

HOSE

ASSEMBLY - hydraulic, 61 inch long (Replaces 675987R91)

1шт.

2

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- flared tube 1/2 inch

2шт.

3

841041C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 145-1/2 inch long

2шт.

4

843322C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 196 inch long

2шт.

5

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable

2шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

2шт.

7

817675C91

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 615.95mm Stroke

CYLINDER ASSEMBLY - (Optional with 843144C91 or 84941 C91 cylinders)(See Note)

1шт.

843397C1

SEAL KIT

KIT - repair, O-ring and seals

1шт.

7

843144C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - (Optional with 817675C91)(See Note)

1шт.

843465C1

SEAL KIT

KIT - repair, O-ring and seals

1шт.

7

84941

CYLINDER ASSEMBLY - (Optional with 817675C91)(See Note)

1шт.

85024C1

SEAL KIT

- repair, O-ring and seals

1шт.

841004C1

PIN,28.57mm OD x 154mm L

- rod end, 6 inch

1шт.

841086C1

PIN,28.57mm OD x 178mm L

- body end, 7 inch

1шт.

20885R1

WASHER

- flat, 1-5/32 x 2 x 3/64 inch

4шт.

21214R1

WASHER

- flat, 1-5/32 x 2 x 3/32 inch

10шт.

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

8

851729C1

HOSE CLAMP

CLAMP - hose

9шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

: Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube

2шт.

10

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male

2шт.

11

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - flared, 5/B to 1/2 inch

2шт.

12

843379C1

SUPPORT

CHANNEL - valve mounting

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, number 80 type F

2шт.

14

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

15

843380C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 10-45/64 inch long

2шт.

16

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

2шт.

17

142864C95

VALVE

ASSEMBLY - check

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch tube

1шт.
