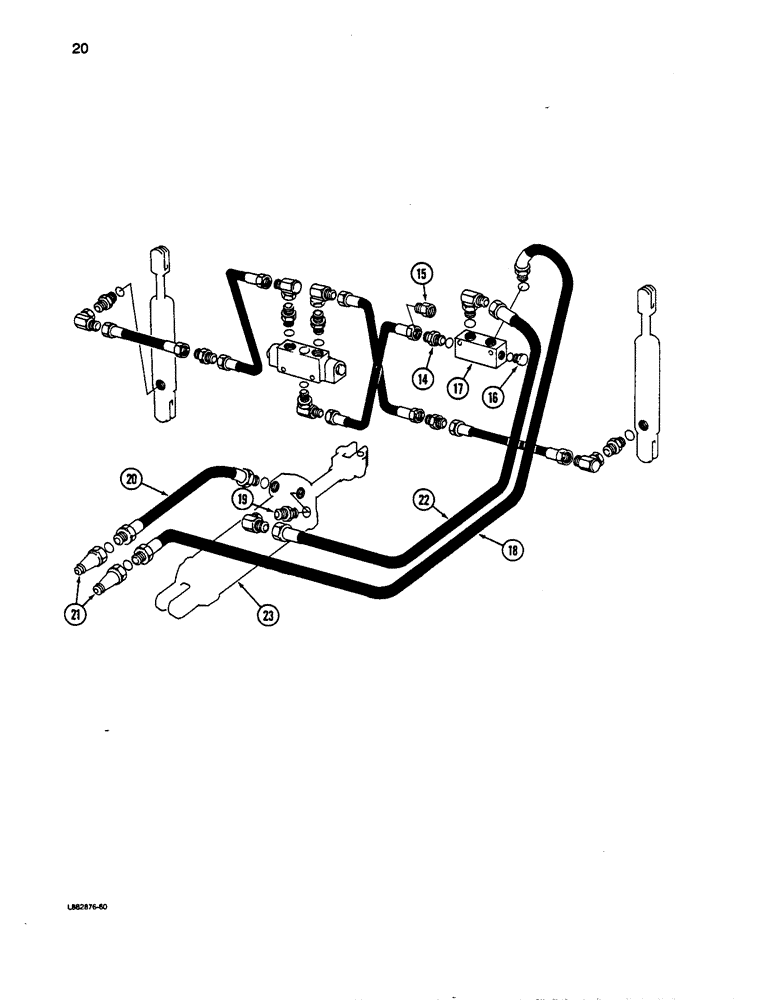

Запчасти Case IH 5100 (020) - MARKER HYDRAULICS, AUTOMATIC SEQUENCING, CONTD

14

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, short 5/8 to 1/2 inch tube (See Note)

1шт.

14

841009C1

UNION

- restrictor (Use with 149988C91 only)

1шт.

15

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTOR - reducer (Use with 149988C91 only)

1шт.

16

9410360

PLUG

- straight thread, O-ring boss, 5/8 inch

1шт.

17

592398R1

FLOW DIVIDER

BLOCK - flow divider

1шт.

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

- flat, 11/32 x 1 x 3/32 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.

18

630457R91

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 132 inch long

1шт.

19

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, short 5/8 to 1/2 inch tube

4шт.

20

372437R91

HOSE

ASSEMBLY - hydraulic, 112 inch long

1шт.

21

395149R1

QUICK MALE COUPLING

COUPLER - hose, male

2шт.

21

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male

2шт.

22

167957H1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 24 inch long

1шт.

23

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - disc marker

1шт.

79975C1

SEAL KIT

KIT - O-ring and seal service

1шт.

224311C1

KIT

- valve and transfer tube (replaces 1272597C91)

1шт.

61571C1

PIN

- headed

1шт.

64560C1

HEADED PIN

PIN - headed

1шт.

520175R1

CLIP

PIN - hair

2шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

UNION - reducer

2шт.
