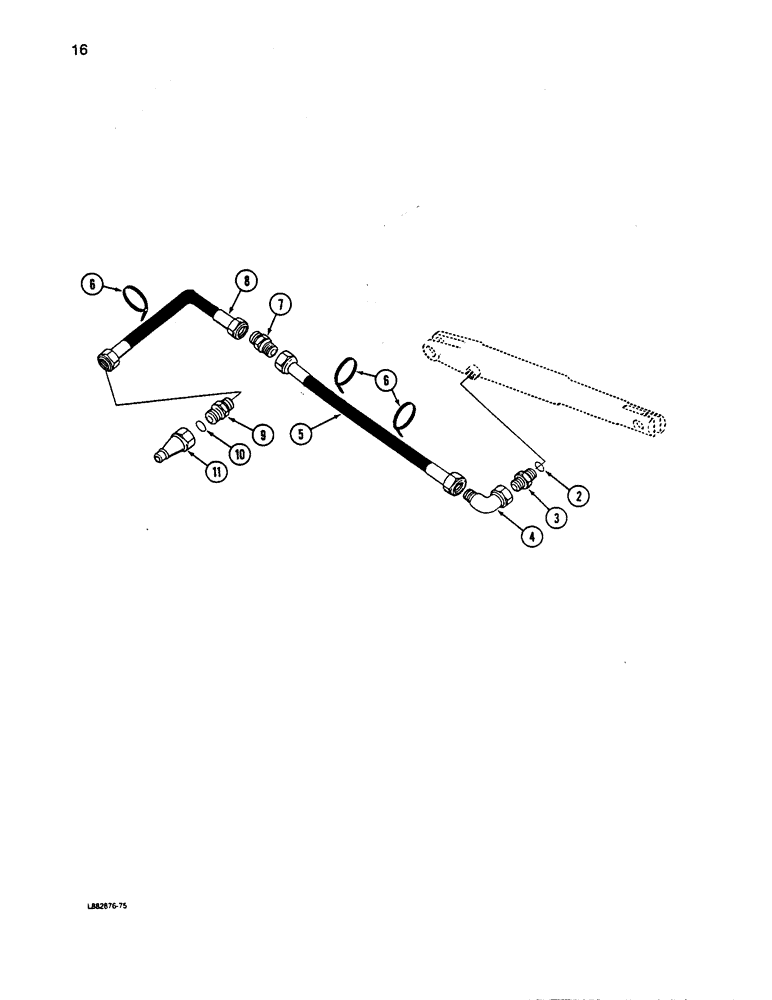

Запчасти Case IH 5100 (016) - MARKER HYDRAULICS, MANUAL TYPE

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

3

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - flared short, 1/2 to 3/8 inch

1шт.

4

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel 1/2 inch

1шт.

5

119743C1

HOSE

ASSEMBLY - Hydraulic, 69 inch long

1шт.

6

58556C1

CABLE TIE

STRAP - hose retaining

1шт.

7

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- hydraulic flared tube, 5/8 inch

1шт.

8

541631

HOSE ASSEMBLY - hydraulic, 140 inch long (13 x 7,16 x 7,18 x 7,20 x 6 and 16 x 8)

1шт.

8

58140C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 160 inch long (24 x 6,21 x 7,20 x 8 and 16 x 10)

1шт.

9

841009C1

UNION

- restrictor

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 5/8 inch tube

1шт.

11

395149R1

QUICK MALE COUPLING

COUPLER - hose, male

1шт.

11

544787R91

COUPLING, BREAK AWAY

COUPLER - hose,male

1шт.
