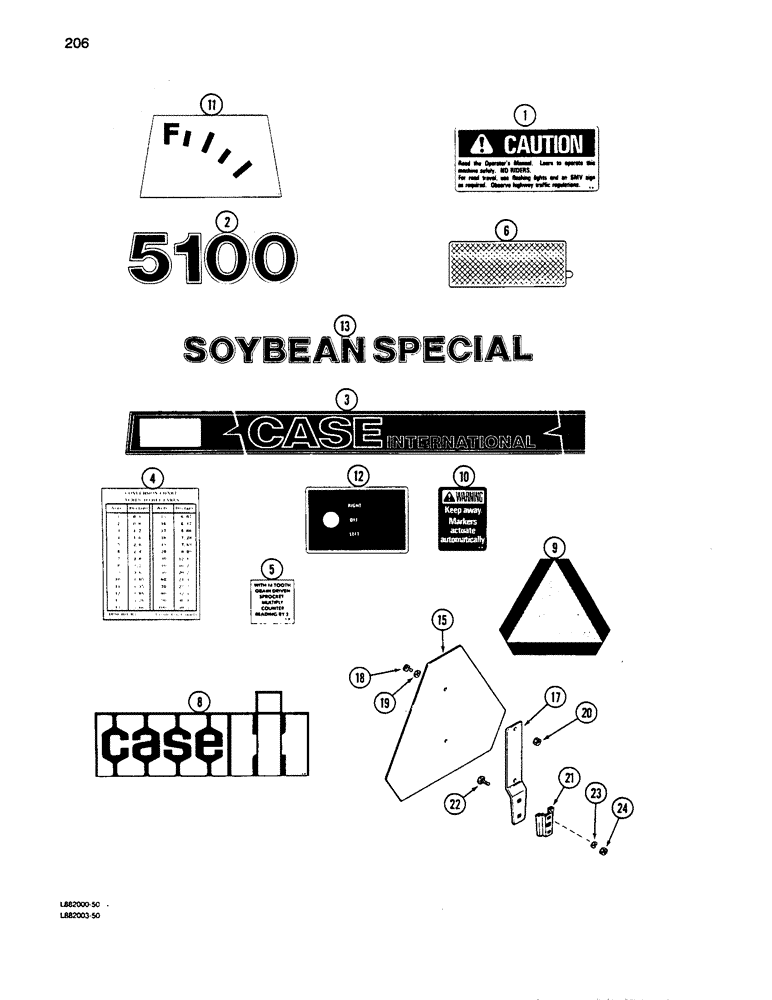

Запчасти Case IH 5100 (206) - DECALS, CASE IH

1

1254170C1

DECAL

- caution, grain drill operation

1шт.

2

95974C2

DECAL

- 5100

1шт.

3

95968C3

DECAL

- Case International stripe

1шт.

ref #3 (P/N 95968C3) - 95971C1 plain strip used with ref #3

1шт.

4

1090404R1

DECAL

- acre to hectare chart

1шт.

5

840979C1

DECAL

- acreage counter

1шт.

6

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

6

1284365C1

REFLECTOR,Reflector Amber

- amber

1шт.

8

95732C1

DECAL,Case IH Logo

- Case IH logo

2шт.

9

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - slow moving vehicle

1шт.

10

1254154C1

DECAL,Warning Keep Away Markers Actuate

- caution, marker

2шт.

11

2753805R1

DECAL

- fertilizer level

1шт.

12

147218C1

DECAL,Control Right Off Left

- marker control

1шт.

13

95979C1

DECAL

- soybean special

1шт.

1

80593C1

DECAL

- caution, grain drill operation , French language

1шт.

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle

1шт.

15

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - slow moving vehicle

1шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - emblem support, SMV

1шт.

18

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - round head slotted, No. 10-24 x 1/2 inch, SMV

2шт.

19

120391

WASHER,#10

-flat, 13/64 x 9/16 x 1/16 inch, SMV

2шт.

20

120361

NUT,Hex Mach Screw, #10 - 24

SMV #10-24

2шт.

21

398976R1

BRACKET

- mounting, SMV

1шт.

22

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch, SMV

2шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, , SMV 5/16"

2шт.

24

120376

NUT,5/16"-18, G5

SMV 5/16"-18, G5

2шт.
