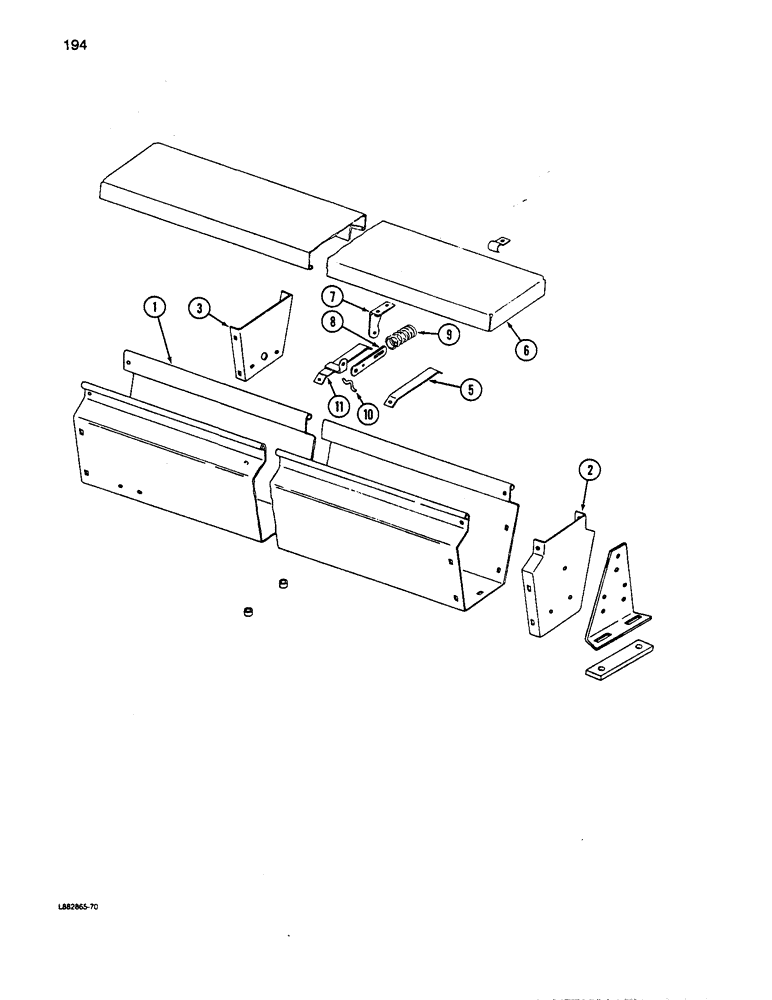

Запчасти Case IH 5100 (194) - BROME SEED ATTACHMENT, HOPPER

1

816693C1

HOPPER

- brome seed (21 x 7)

1шт.

1

815662C1

HOPPER

- brome seed (13 x 7)

1шт.

1

815663C1

HOPPER

- brome seed (16 x 7)

1шт.

1

815664C1

HOPPER

- brome seed (18 x 7)

1шт.

2

815596C1

PANEL, SIDE

PANEL - hopper end

2шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 1/2 inch

10шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

10шт.

3

815597C1

PLATE

BAFFLE - hopper (13x7, 16x7 and 18 x7)

3шт.

3

815597C1

PLATE

BAFFLE - hopper (21 x 7)

5шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 1/2 inch

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

5

815599C1

BRACKET

BRACE - hopper (13 x 7 and 16 x 7)

2шт.

5

815599C1

BRACKET

BRACE - hopper (18 x 7 and 21 x 7)

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

815602C1

COVER

- hopper (18 x 7)

1шт.

6

815600C1

COVER

- hopper (13 x 7)

1шт.

6

815603C1

COVER

- hopper (21 x 7)

1шт.

6

815601C1

COVER

- hopper (16 x 7)

1шт.

7

815615C1

SUPPORT

BRACKET - cover spring

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

N32052

BAR

BRACKET - cover spring

1шт.

23039R1

WASHER

- flat, 13/64 x 7/8 x 3/64 inch

2шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

2шт.

9

6628

SPRING

- cover

1шт.

10

N32114

LINCH PIN

LOCK - spring

1шт.

11

815616C1

BRACKET

- cover

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- button head

1шт.

23039R1

WASHER

- flat, 13/64 x 7/8 x 3/64 inch

1шт.
