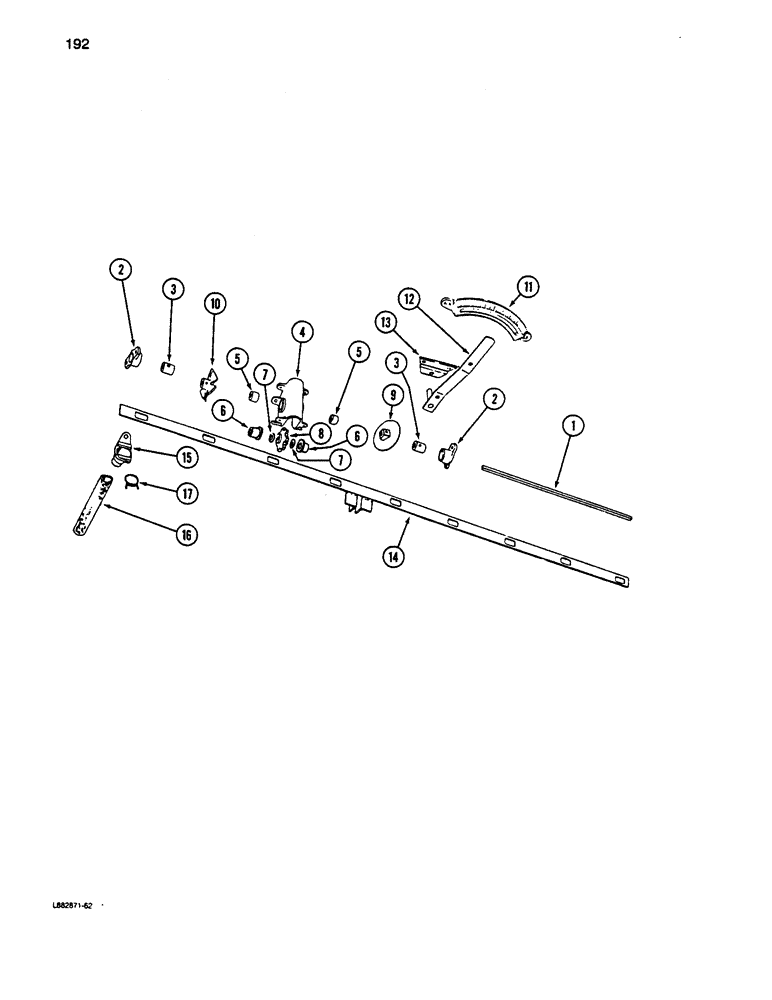

Запчасти Case IH 5100 (192) - BROME SEED ATTACHMENT, SEED FEED

1

815667C1

SHAFT

BAR - feed shaft (13 x 7)

1шт.

1

815668C1

BAR

- feed shaft (16 x 7)

1шт.

1

815669C1

SHAFT

BAR - feed shaft (18 x 7)

2шт.

1

815670C1

SHAFT

BAR - feed shaft (21 x 7)

2шт.

2

603733R1

BRACKET

- feed shaft bar (5 used 13 x 7 and 16 x 7; 6 used 18x7; 8 used 21 x7)

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

3

603734R1

COLLAR

- bearing bracket (1 per bracket)

1шт.

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - cup point set, 1/4 NC x 1/4 inch

1шт.

4

815671C11

GUARD

ASSEMBLY - drive chain (1 per drive)

1шт.

5

598055R1

DRIVE BUSHING

BUSHING - guard, drive chain

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (4 per guard)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

- hex, 5/16 NC x 7/8 inch (2 per guard)

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

815672C1

BUSHING

- flanged, chain guard (2 per guard)

1шт.

7

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- flat, 11/32 x 3/4 x 3/64 inch (1 per flanged bushing)

1шт.

8

603735R1

DRIVEN SPROCKET

SPROCKET - feed shaft driven, 7 tooth

1шт.

9

819323C1

DISC

WHEEL - agitation (10 used 13 x 7; 13 used 16 x 7; 14 used 18x7; 17 used 21 x7)

1шт.

10

819324C1

FAN

WHEEL - feed (1 per brome feed)

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - hex head, tapping, 1/4 NC x 1/2 inch

1шт.

11

815673C1

INDICATOR

- feed (1 per drive)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

12

815674C91

LEVER

ASSEMBLY - feed indicator (1 per drive)

1шт.

13

815675C1

BRACKET

- indicator pivot

1шт.

86982759

RIVET,But Hd, 3/8" x 1/2"

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

1шт.

120376

NUT,5/16"-18, G5

1шт.

14

815678C1

SLIDE

- feed regulator (13 x 7)

1шт.

14

815679C1

SLIDE

- feed regulator (16 x 7)

1шт.

14

815680C1

SLIDE

- feed regulator (18 x 7)

2шт.

14

816694C1

SLIDE

- feed regulator, left (21 x 7)

1шт.

14

816695C1

SLIDE

- feed regulator, right (21 x 7)

1шт.

15

815687C1

CUP

- brome feed (1 per brome feed)

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

16

603794R1

TUBE,10.75" Length

- brome seed (1 per brome feed)

1шт.

17

603743R1

CLAMP

- seed tube (1 per brome feed)

1шт.
