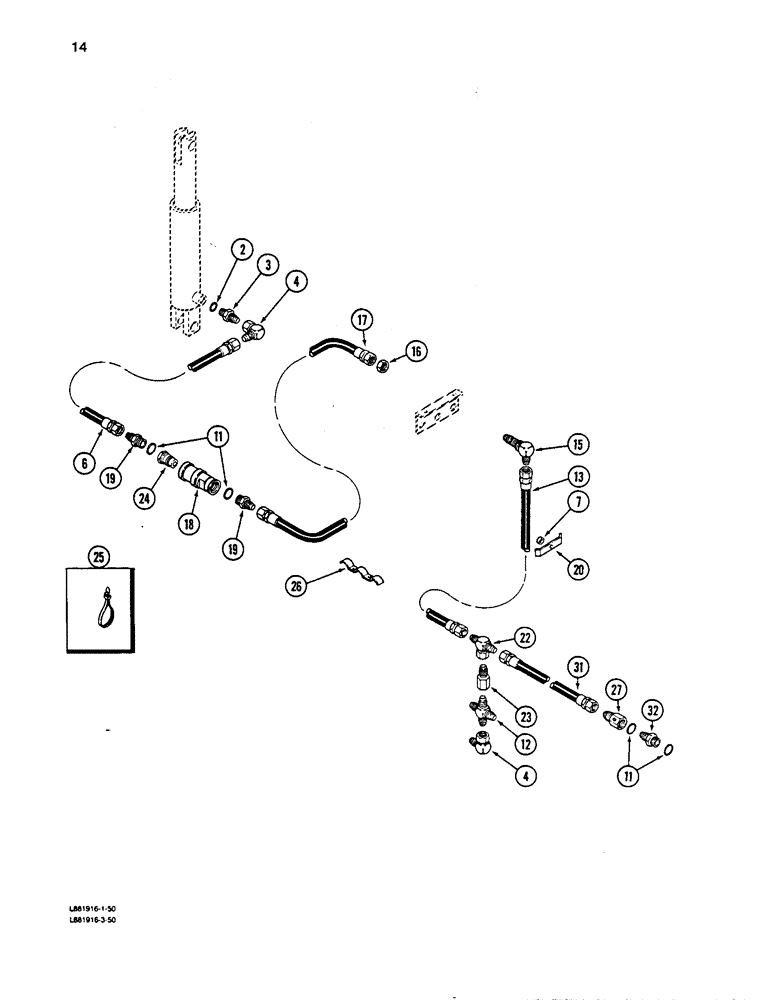

Запчасти Case IH 5100 (014) - 5100 END WHEEL GRAIN DRILL, MARKER HYDRAULICS, HYDRAULIC SELECTOR, LEFT MARKER, TANDEM

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

3

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 1/2 to 3/8 inch tube

1шт.

4

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

2шт.

6

1279598C1

HYDRAULIC HOSE

HOSE - hydraulic, 135 inch long

1шт.

7

309710C1

SPACER,10.7mm ID x 17.14mm OD x 15.9mm L

- 3/8 x 1/16 inch

5шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube:

1шт.

12

9403177

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - flared tube, 1/2 inch

1шт.

13

1310502C1

HOSE

- hydraulic, 82 inch long

1шт.

15

469997R1

ELBOW

- bulkhead, 90 degree

1шт.

16

9403294

NUT

- bulkhead union lock

1шт.

17

841083C1

HYDRAULIC HOSE

HOSE - hydraulic, 142 inch long

1шт.

18

1282338C91

COUPLING, QUICK, FEM

COUPLER - hose, female

1шт.

19

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 5/8 to 1/2 inch tube

2шт.

20

851729C1

HOSE CLAMP

CLAMP - hose

5шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

22

9410307

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel, 1/2 inch

1шт.

23

842773C1

RESTRICTOR

- oil flow

1шт.

24

1272399C2

QUICK MALE COUPLING

COUPLER - hose, 7/8 NF, Self-Sealing, Male

1шт.

25

B13579C1

STRAP hose retaining

6шт.

26

1279809

HYDRAULIC HOSE,3050.00 mm

CLAMP - hose

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.

27

1279860C91

RESTRICTOR

VALVE ASSEMBLY - restrictor

1шт.

31

1279721C1

HYDRAULIC HOSE,12.70 mm ID x 3251.00 mm

12.70 mm ID x 3251.00 mm

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 5/8

1шт.
