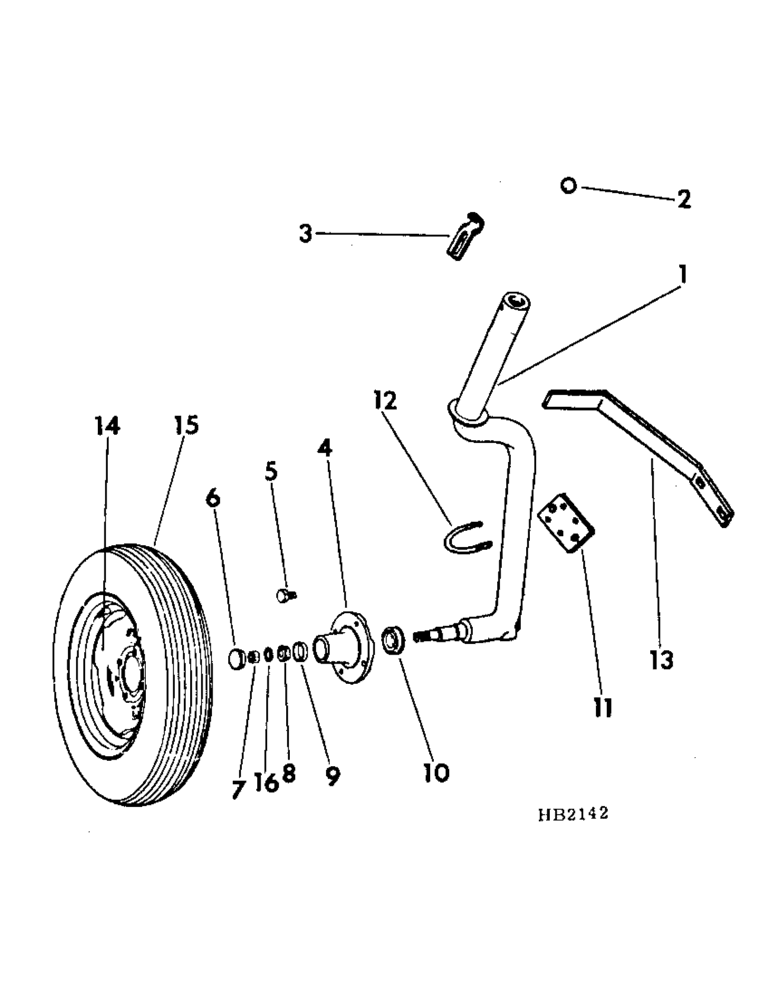

Запчасти Case IH 510 (B-03) - CASTER WHEEL AXLE AND HUB

1

592636R91

AXLE

ASSY, caster wheel

1шт.

2

17100R1

BALL

bearing axle bracket

1шт.

3

609483R1

LUG

axle bracket locking

1шт.

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

BOLT, 7/16-14 x 7/8 hex-hd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga flat

1шт.

4

591535R1

HUB

caster wheel, replaces 619353R1

1шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

4шт.

6

602959R1

PLUG

CAP, hub

1шт.

7

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, caster axle outer bearing

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

651814R1

BEARING CUP

CUP, caster axle outer bearing

1шт.

10

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

caster axle inner

1шт.

11

818030C1

SUPPORT

BAR, caster wheel scraper support, drills shpd to U.K., Serial Range: prior-1975

1шт.

12

611612R1

BOLT,3/8" - 16 x 2 3/4"

U-BOLT, support bar, drills shpd to U.K., Serial Range: prior-1975

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

818029C1

BLADE

SCRAPER, caster wheel, drills shpd to U.K., Serial Range: prior-1975

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

14

455169R92

WHEEL

15 x 4-1/2 KB caster

1шт.

15

TIRE, 6.70-15 4 ply I-1 tubless

1шт.

387897R91

VALVE STEM

VALVE, TR 415

1шт.

15

TIRE & TUBE, 5.90 x 15 4 ply code I-1

1шт.

16

467750R1

WASHER

.781 x 1.500 x .0105

2шт.
