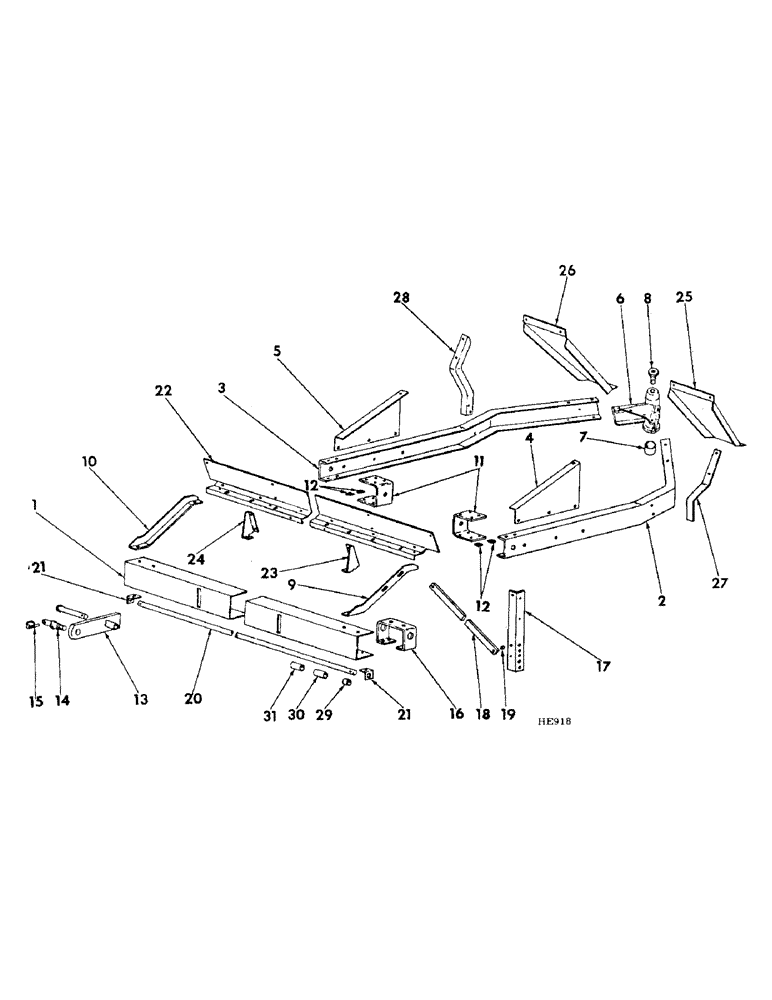

Запчасти Case IH 510 (B-02) - MAIN FRAME AND TRACTOR HITCH

1

819073C91

CHANNEL

W/PRODUCT GRAPHIC, frame front

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, general caution

1шт.

2

609431R1

CHANNEL

main frame LH

1шт.

3

609432R1

CHANNEL

main frame RH

1шт.

4

815025C1

ASSEMBLY

SECTION, frame support LH

1шт.

5

815026C1

ASSEMBLY

SECTION, frame support RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

819080C91

BRACKET

ASSY, caster wheel axle, includes 1-617925R1, bushing and 1-819809C1, prod graphic

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

3/8-16 x 5 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

819809C2

DECAL

PRODUCT GRAPHIC, caution

1шт.

7

617925R1

BUSHING

axle bracket

1шт.

8

609444R1

BOLT

axle bracket lubrication

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

815027C1

ANGLE

main frame channel brace LH

1шт.

10

815028C1

ANGLE

main frame channel brace RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

609430R1

CHANNEL

hitch support

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

8шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

8шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

12

603901R1

WASHER

SPACER, main frame channel filler

8шт.

13

598153R1

TRAILER HITCH

HITCH ASSY

2шт.

P13789

AXLE PIN

PIN, 3/4 x 5-1/4 std-hd-dld

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21753R1

WASHER

.781 x 1.500 x .054

2шт.

14

470511R1

STUD

hitch catagory 1

2шт.

426767

NUT,7/8"-14, G5

7/8-14 hex

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

478258R1

WASHER

1.156 x 1.750 x .105

4шт.

14

472790R2

STUD

hitch catagory 11

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 NF hex

2шт.

131049

HYD CONNECTOR

1-1/8 lock

2шт.

15

392181R91

PIN

hitch stud

2шт.

16

609435R1

BRACKET

gauge wheel axle

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16-14 x 1-1/4 type 1 crg

2шт.

271501

SOCKET

NUT, 7/16-14 hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

17

815187C1

ANGLE

gauge wheel LH

1шт.

17

815188C1

ANGLE

gauge wheel RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 x 2-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18

815189C1

BAR

gauge wheel angle reinforcing

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

132203H1

SPACER, bar

2шт.

20

603157R1

ROD

drawbar pivot

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga

2шт.

21

609436R1

ANGLE

pivot shaft support

6шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16-14 x 1 hex-hd

4шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

22

815092C1

GUIDE

pressure rod

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

9шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

23

815093C1

BRACE

pressure rod guide LH

1шт.

24

815094C1

BRACE

pressure rod guide RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

25

815095C1

SUPPORT

hopper rear LH

1шт.

26

815096C1

SUPPORT

hopper rear RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

27

815097C1

ANGLE, hopper support LH, machines built prior to April 1976

1шт.

27

819435C1

SUPPORT

hopper and footboard LH machines built April 1976 & since

1шт.

28

815098C1

ANGLE, hopper support RH machines built prior to April 1976

1шт.

28

819436C1

SUPPORT

hopper and footboard RH machines built April 1976 & since

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

29

355682R1

SPACER,3/4" Pipe x 3/4"

drawbar pivot shaft, use w/sgle disk F.O.

3шт.

29

355682R1

SPACER,3/4" Pipe x 3/4"

drawbar pivot shaft, use w/dble disk F.O. prior to 1975

2шт.

30

603262R1

SPACER

drawbar pivot shaft, use w/dble disk F.O., Serial Range: prior-1975

12шт.

31

609437R1

SPACER, drawbar pivot, use w/sgle disk F.O.

11шт.
