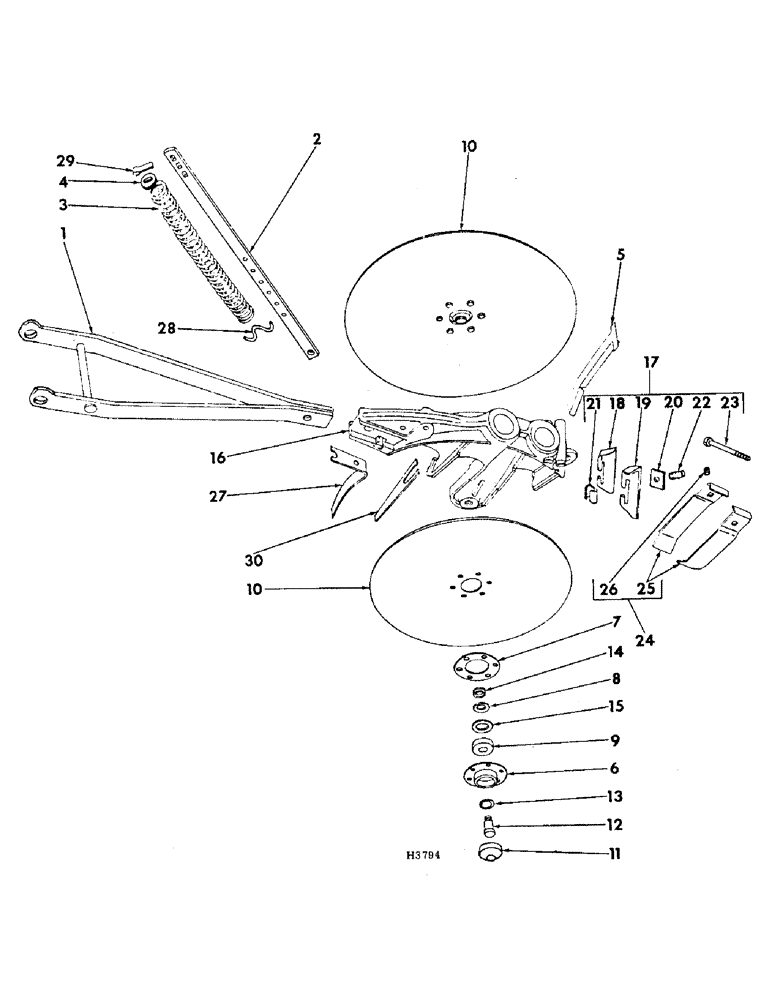

Запчасти Case IH 510 (B-20) - DOUBLE DISK FURROW OPENER, SEALED BALL BEARING CAST BOOT TYPE, MACHINES PRIOR TO 1975 SEASON

1

594202R91

BAR

DRAWBAR ASSY, front furrow opener

1шт.

1

594203R91

DRAWBAR ASSY, rear furrow opener

1шт.

2

594206R1

BAR

pressure spring front

1шт.

2

594207R1

BAR

pressure spring rear

1шт.

1380S

PIN

5/16 x 1-3/4 std-hd-dld

1шт.

20893R1

WASHER

11/32 x 1 x 11 ga flat

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

N42899

SPRING

pressure

1шт.

4

594208R1

WASHER

pressure bar slotted

1шт.

5

603590R1

DEFLECTOR

fertilizer

13шт.

6

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small b-hd

12шт.

7

602992R1

GASKET

paper

2шт.

8

602994R1

FLANGE

seal

2шт.

9

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

10

603013R2

PLOW DISC

BLADE, disk

2шт.

11

603012R1

DUST CAP

CAP, dirt

2шт.

12

603010R1

BOLT (SPREADER)

BOLT, disk LH

1шт.

12

603011R1

BOLT (SPREADER)

BOLT, disk RH

1шт.

13

141707

WASHER,Int Tooth, 11/16"

11/16 internal, t-lk

2шт.

14

602988R1

SPACER

seal retainer

2шт.

15

464628R1

SEAL

dirt, replaces 602993R1

2шт.

16

BOOT ASSY, double disk, includes 1-603663R2, boot, 1-178081, plug and 1-603822R92, scraper assy, order 1-603663R2, boot and 1-819819C91, scrapper assy

1шт.

178081

HOLE PLUG BUTTON,1 3/8"

PLUG, 1-3/8 button

1шт.

16

603663R2

BOOT

double disk

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex-hd

1шт.

271501

SOCKET

NUT, 7/16-14 hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

17

603822R92

BLADE

SCRAPER ASSY, double disk inside order 1-819819C91, scraper assy, consists of, (1) scraper 605974R1, (1) scraper 605975R1, (1) spreader N62538, (1) hinge N62537, (1) spring N62536, (1) bolt 13375R1, (1) nut 274881, (1) washer 134238R1

1шт.

17

819819C91

BLADE

SCRAPER ASSY, double disk inside, consists of, (1) scraper 816665C1, (1) scraper 816666C1, (1) spreader 816668C1, (1) hinge 819808C1, (1) spring N62536, (1) bolt 152574C1, (1) nut 274881

1шт.

18

605974R1

BLADE

SCRAPER, inside RH, use w/603822R92, scraper assy

1шт.

18

816666C1

BLADE

SCRAP[ER, inside Rh, use w/819816C91, scraper assy

1шт.

19

605975R1

BLADE

SCRAPER, inside LH, use w/603822R92, scraper assy

1шт.

19

81665C1

HOUSING

SCRAPER, inside LH, use w/819819C91, scraper assy

1шт.

20

N62538

KNIFE ASSY

SPREADER, inside scraper, use w/603822R92, scraper assy

1шт.

20

816668C1

LEDGER PLATE

SPREADER, inside scraper,use w/819819C91, scraper assy

1шт.

N62537

HINGE

inside scraper, use w/603822R92, scraper assy

1шт.

21

819808C1

HINGE

inside scraper, use w/819819C91, scraper assy

1шт.

22

N62536

VALVE SPRING

SPRING, inside scraper

1шт.

23

13375R1

BOLT, 5/16-18 x 2-1/2 sq-hd mach, use w/603822R92, scraper assy

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 hex lock

1шт.

Q398

WASHER

.344 x .875 x .054

1шт.

23

152574C1

BOLT,Sq Hd, 5/16" - 18 x 2 3/4"

5/16-18 x 2-3/4 sq-hd mach type 8, use w/819819C91, scraper assy

1шт.

274881

WASHER

5/16-18 hex lock

1шт.

24

598935C91

PACKAGE, double disk outside scraper, consists of, (2) scraper (NSS), (1) spring (NSS)

1шт.

25

SCRAPER, double disk outside, not serviced separately, for service order 1-598935R91, package

1шт.

26

SPRING, double disk outside scraper, not serviced separately, for service order 1-598935R91, package

1шт.

27

NA62293

GUARD ASSY.

GUARD, double disk boot

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

1шт.

120373

NUT, 5/16-18 square

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

F6366

LOCK

pressure spring

13шт.

29

605964R1

CLIP

special flat cotter

13шт.

30

N62294

DEFLECTOR

grain

1шт.

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL, w/hub and bearing, consists of, (1) retainer 602989R1, (1) gasket 602992R1, (1) flange 602994R1, (1) blade 603013R2, (6) rivet 104081, (1) bearing 465004R91

1шт.
