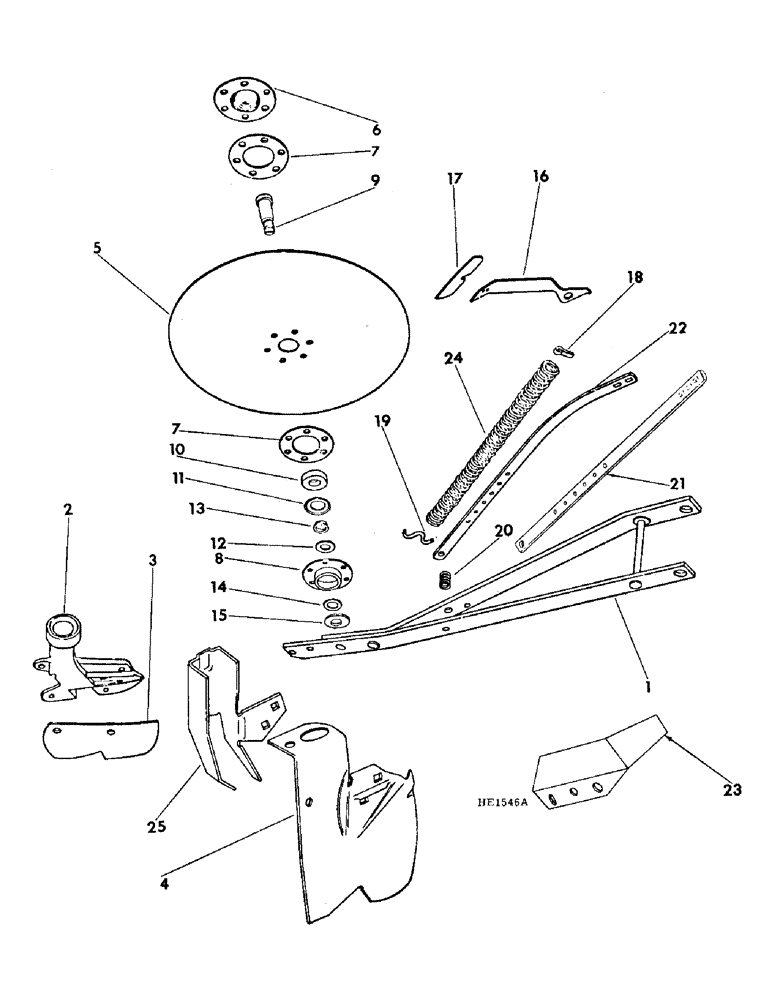

Запчасти Case IH 510 (B-18) - SINGLE DISK FURROW OPENERS

1

609503R91

BAR

DRAWBAR ASSY, front rank LH

3шт.

Item No# 1 - DRAWBAR ASSY. P/N# 609503r91 & 609504r91 can be identified by the two holes drilled in the front or as shown in this picture on the left side are round. On the 609509r92 & 609510r92 these two holes are square punches. (db) CAM 9-25-98

1шт.

1

609504R91

BAR

DRAWBAR ASSY, front rank RH, drawbars include 1-106929, rivet

3шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

3/8 x 4/8 truss-hd

6шт.

1

609509R92

BAR

DRAWBAR ASSY, rear rank LH

3шт.

1

609510R92

BAR

DRAWBAR ASSY, rear rank RH, not for machines, Serial Range: shipped-U.K.

4шт.

1

818036C1

DRAWBAR ASSY, rear rank LH

3шт.

1

818037C1

BAR

DRAWBAR ASSY, rear rank RH, drills shpd to U.K. prior to 1975, drawbars include 1-106929, rivet

4шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

3/8 x 7/8 truss-hd, 1 pr drawbar

7шт.

2

BOOT ASSY, regular notched landside LH, includes 1-603679R1, landside and 2-106913, rivet, not for machines shipped to U.K., machines prior to 1975, order 1-819191C2, boot and 1-819165C1, deflector

1шт.

2

BOOT ASSY, regular notched landside RH, includes 1-603680R1, landside and 2-106913, rivet, not for machines shipped to U.K., machines prior to 1975, order 1-819192C2, boot and 1-819166C1, deflector

1шт.

2

BOOT ASSY, deep seeding notched landside LH, includes 1-606154R1, landside and 2-106913, rivet, drills shpd to U.K. prior to 1975, order 1-819191C2, boot and 1-819165C1, deflector

1шт.

2

BOOT ASSY, deep seeding notched landside RH, includes 1-606155R1, landside and 2-106913, rivet, drills shpd to U.K. prior to 1975, order 1-819192C2, boot and 1-819166C1, deflector

1шт.

2

603638R91

BOOT

ASSY, with plain landside RH, includes 1-603631R1, landside, 1-13933R1, & 1-13934R1, rivets drills shpd to U.K., Serial Range: prior-1975

1шт.

2

603637R91

BOOT

ASSY, with plain landside LH, includes 1-603630R1, landside 1-13933R1 & 1-13934R1, rivets, drills shpd to U.K., Serial Range: prior-1975

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

603630R1

LANDSIDE

plain LH

1шт.

3

603631R1

SHOE

LANDSIDE, plain RH, drills shpd to U.K., Serial Range: prior-1975

1шт.

13933R1

RIVET,Countersunk, 4.75mm OD x 12.7mm L

3/16 x 1/2 74 deg csk-hd

1шт.

13943R1

RIVET,Csk, 3/16" x 5/8"

3/16 x 5/8 74 deg csk-hd (Replaces 13934R1)

1шт.

3

603679R1

LANDSIDE

regular notched LH

1шт.

3

603680R1

LANDSIDE

regular notched RH

1шт.

3

606154R1

LANDSIDE

deep seeding notched LH

1шт.

3

606155R1

LANDSIDE

deep seeding notched RH, machines, Serial Range: prior-1975

1шт.

106913

RIVET,Truss Hd, 5/16" x 5/8"

5/16 x 5/8 truss-hd, 1 per landside

2шт.

4

819191C2

BOOT

single disk LH

6шт.

4

819192C2

BOOT

single disk RH, machines built 1975 & since

7шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/74 crg 2 per bolt

2шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

5

603004R2

PLOW DISC

DISK, furrow opener single

13шт.

6

602990R1

CAP

disk

13шт.

7

602992R1

GASKET

bearing retainer

26шт.

8

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

13шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small solid, per retainer

6шт.

9

602987R1

BOLT

BOLT, disk

13шт.

425-110

5/8-18 hex

13шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

13шт.

11

602994R1

FLANGE

seal

13шт.

12

464628R1

SEAL

dirt, replaces 602993R1

13шт.

13

602988R1

SPACER

seal retainer

13шт.

14

591714R1

WASHER

.718 x 1.250 x .054 flat, 2 per furrow opener

2шт.

15

21712R1

WASHER

.718 x 1.500 x .105 flat

13шт.

16

603620R11

BLADE

SCRAPER ASSY, single disk LH

6шт.

16

603621R11

PACKAGE

SCRAPER ASSY, single disk RH, includes 1-W7008, blade and 2-106883, rivet

7шт.

609438R1

PIN

3/8 x 3.562 pln hd type 1

13шт.

611346R1

WASHER

.406 x .875 x .054

13шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

13шт.

17

W7008

BLADE

disk scraper

13шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

26шт.

18

605964R1

CLIP

special flat cotter

13шт.

19

F6366

LOCK

pressure spring

13шт.

20

N32176

SPRING

pressure bar location

13шт.

21

609515R1

BAR

pressure spring front straight

6шт.

21

609516R1

BAR

pressure spring rear straight, not for machines, Serial Range: shipped-U.K.

6шт.

21

818043C1

BAR, pressure spring rear drills shpt to U.K., Serial Range: prior-1975

1шт.

22

609517R1

BAR

pressure spring rear curved, not for machines, Serial Range: shipped-U.K

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8-16 x 1-3/8 hex-hd

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

23

816740C1

GUARD

DEFLECTOR, dirt LH rear rank

1шт.

23

816741C1

GUARD

DEFLECTOR, dirt RH rear rank, drills shpt to U.K., Serial Range: prior-1975

1шт.

24

N42899

SPRING

pressure

13шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga

13шт.

25

819165C1

BOOT

DEFLECTOR, single disk LH

6шт.

25

819166C1

BOOT

DEFLECTOR, single disk RH, machines built 1975 & since

7шт.

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL, single, consists of, (1) disk 603004R1, (1) cap 602990R1, (2) gasket 602992R1, (1) retainer 602989R1, (6) rivet 104081, (1) bolt, 602987R1, (1) nut 121358, (1) washer 121574, (1) flange 602994R1, (1) bearing 465004R91

1шт.
