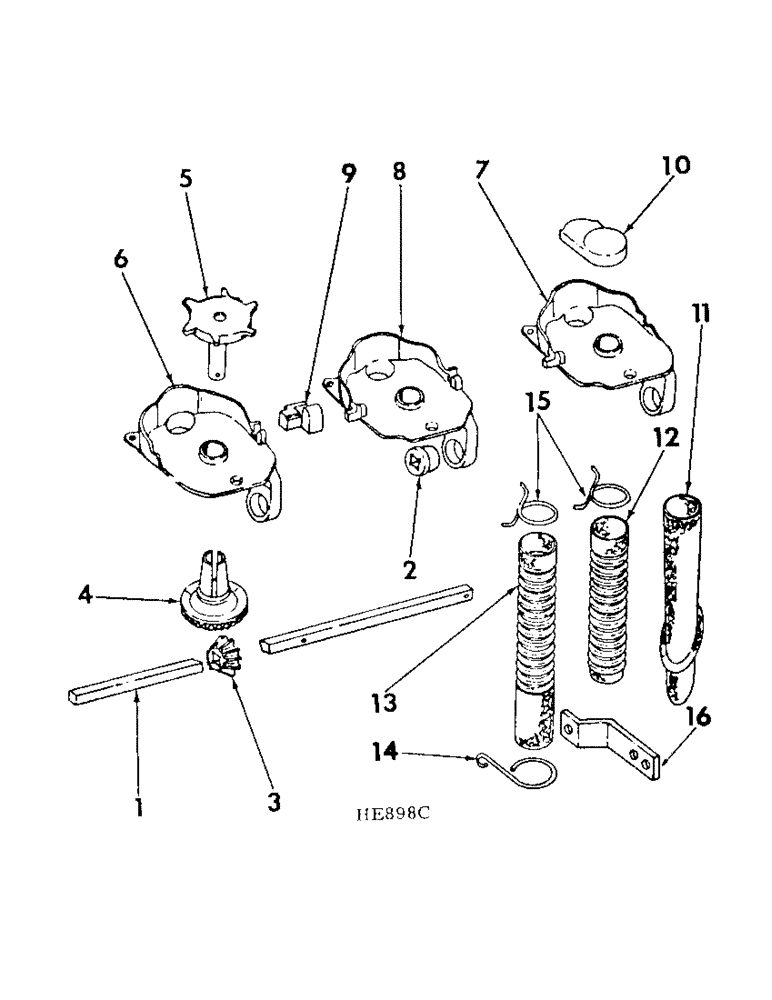

Запчасти Case IH 510 (B-13) - FERTILIZER FEED MECHANISM

1

815381C1

BAR

fertilizer feed shaft

1шт.

112050

PIN,4.76mm OD x 22.23mm L

3/16 x 7/8 sq-end straight

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

M76123

WASHER,19/32" x 1 1/4" x .105", Sq Hole

.594 sq x 1.250 x .090

1шт.

2

603462R1

TRUNNION

bevel pinion

13шт.

3

603463R2

GEAR

bevel pinion 12T

13шт.

4

F282C

GEAR

feed shaft bevel

13шт.

5

602554R11

DRIVE SPROCKET

WHEEL ASSY, star feed, includes 1-N 62414, pin

1шт.

N62414

PIN,3.96mm OD x 28mm L

shear

3шт.

6

603451R2

PLATE

bottom end LH

1шт.

7

609467R1

PLATE

bottom end RH

1шт.

8

603453R2

PLATE

bottom intermediate

11шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1-4-20 x 5/8 hex-hd

26шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

13шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

39шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

39шт.

9

603457R1

SPACER

bottom plate

12шт.

10

603593R1

BLOCK

fertilizer feed shut-off

13шт.

11

607289R2

TUBE,1.25" OD, 7" Length

combined delivery

13шт.

12

603589R3

TUBE

separate delivery fertilizer, use single disk furrow opener tube required to have 66 convolutions, approximately 10-3/4 inch minimum length and 40-3/4 inch mazimum length

1шт.

13

603588R3

TUBE,1.25" ID, 1.687" OD, 51, 3" Length

separate delivery fertilizer, use w/dble disk F.O. prior to 1975, opt to use 1-603101R93, pkg, tube required to have 51 convolutions, approximately 7.1 inch minimum length and 30.1 inch maximum length

1шт.

13

603101R93

SET OF PARTS

PACKAGE, separate delivery tube, use w/dble disk F.O. prior to 1975, opt to use 1-603588R3, tube

13шт.

14

603592R1

SPRING CLIP

CLAMP, tube lower, use w/sgle disk F.O.

13шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

15

603591R1

SPRING

delivery tube upper, use w/sgle disk F.O.

13шт.

16

603722R2

BRACKET

SUPPORT, drag chain and tube, use w/sgle disk F.O.

13шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

13шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 hex jam

13шт.

120376

NUT,5/16"-18, G5

13шт.
