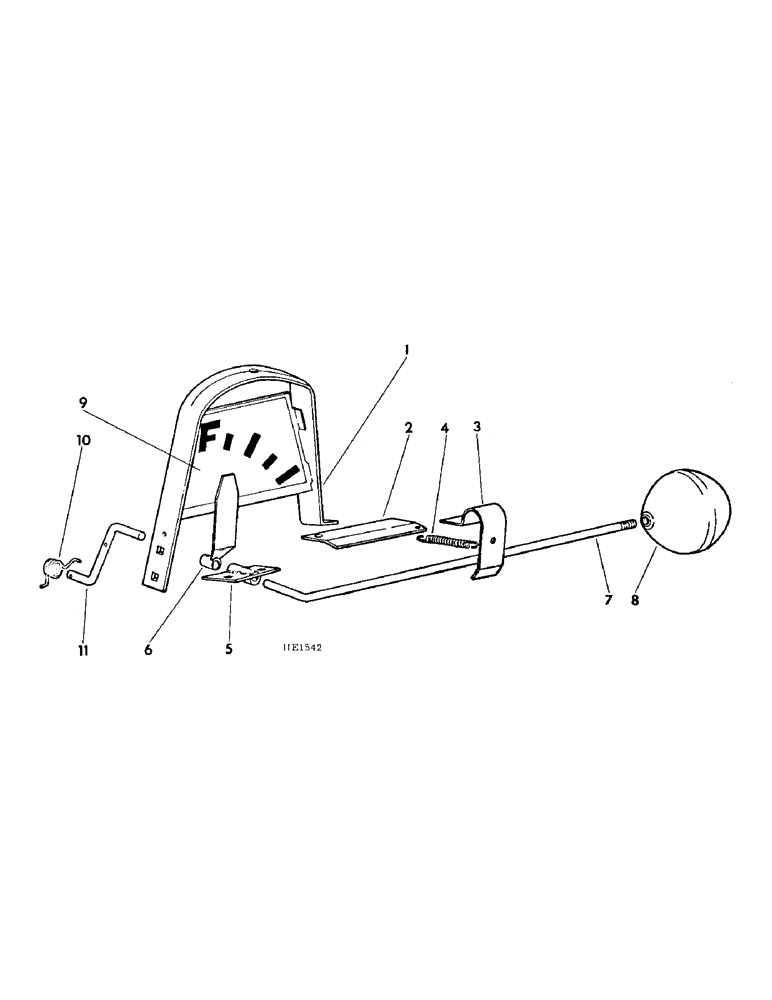

Запчасти Case IH 510 (B-12) - FERTILIZER LEVEL INDICATOR

1

816575C1

INDICATOR

ASSY, level, machines, Serial Range: prior-1972

1шт.

1

816846C1

PLATE

INDICATOR ASSY, level, machines built 1972 & since

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

816802C1

SUPPORT

level indicator, machines built 1972 & since

1шт.

3

816801C1

CLAMP

indicator, clamp machines built 1972 & since

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

5

815793C1

ARM

SWIVEL ASSY, float arm

1шт.

6

815795C1

INDICATOR

POINTER ASSY, fertilizer level

1шт.

24519R1

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW, no. 10-24 x 1/4 hex-skt-cup-point set

1шт.

7

815798C1

ROD

float

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

8

815799C1

BALL

float level

1шт.

9

2753805R1

DECAL

PRODUCT GRAPHIC, fertilizer level

1шт.

10

816570C1

SPRING

lift rod, machines, Serial Range: prior-1972

1шт.

11

815792C1

ROD

level pointer lift, machines, Serial Range: prior-1970

1шт.
