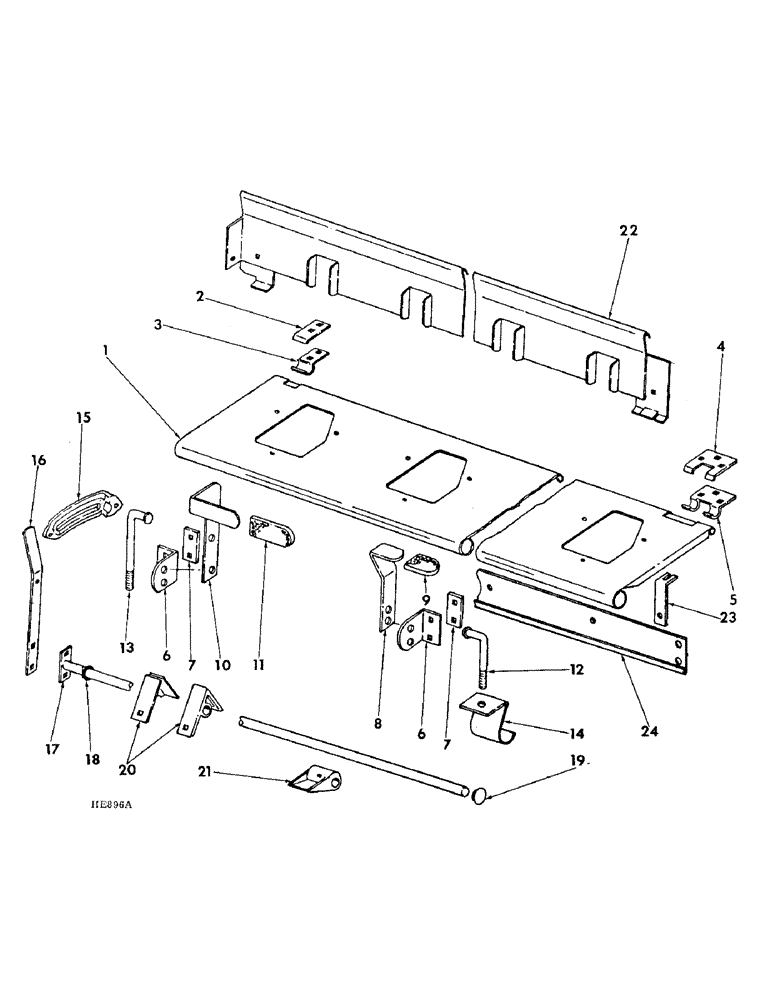

Запчасти Case IH 510 (B-10) - FERTILIZER DROP BOTTOM

1

815340C1

PLOW BOTTOM

BOTTOM ASSY, fertilizer drop

1шт.

2

604403R1

CLAMP

STOP, drop bottom hinge intermediate

3шт.

3

604404R1

CLAMP

HINGE, drop bottom intermediate

2шт.

4

815373C1

STOP

drop bottom hinge outer

2шт.

5

815374C1

HINGE

drop bottom outer

2шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT, 1/4-20 x 1 carriage

12шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

6

603498R1

ANGLE

drop bottom lever

5шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

7

603587R1

BAR

lever angle reinforcing

5шт.

8

815377C1

LEVER

drop bottom short

4шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 x 9/16 flat-hd small

4шт.

9

815378C1

GRIP

bottom short lever

4шт.

10

603501R1

LEVER

bottom long

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 x 9/16 flat-hd small

1шт.

11

815379C1

GRIP

bottom long lever

1шт.

12

603469R1

BOLT,3/8" - 16 x 3.3", Steel

drop bottom short

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

13

603470R1

BOLT,3/8" - 16 x 5.1", Steel

drop bottom long

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

603497R1

CATCH

drop bottom

5шт.

15

604128R1

INDICATOR

fertilizer feed

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

7500032

BUSHING

NUT, 5/16-18 wing

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

605116R1

LEVER

fertilizer indicator

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 carriage

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

815392C1

ROD

ASSY, gate

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

fertilizer gate rod

1шт.

19

816848C1

PLUG

hopper end

1шт.

20

607276R2

SUPPORT

BEARING, gate rod

5шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4-20 x 1/2 carriage

5шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

21

GATE, fertilizer feed, machines prior to 1974, order 1-816736C1, gate 1-180018, bolt & 1-252552C1 nut

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 znp sq/hd c/pt set

2шт.

21

816736C1

GATE ASSY

GATE, fertilizer feed, machines built 1974 & since

13шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 hex-hd

13шт.

252552C1

NUT

1/4-20 tab weld

13шт.

22

815402C1

PANEL

ASSY, fertilizer back

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

22828R1

WASHER,13/32" x 3/4" x .060", Sq Hole

.406 sq x .750 x .054

2шт.

23

816879C1

SUPPORT

fertilizer feed shield, drills shpd to U.K., Serial Range: prior-1975

5шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

24

818031C1

SHIELD

fertilizer feed, drills shpd to U.K., Serial Range: prior-1975

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.
