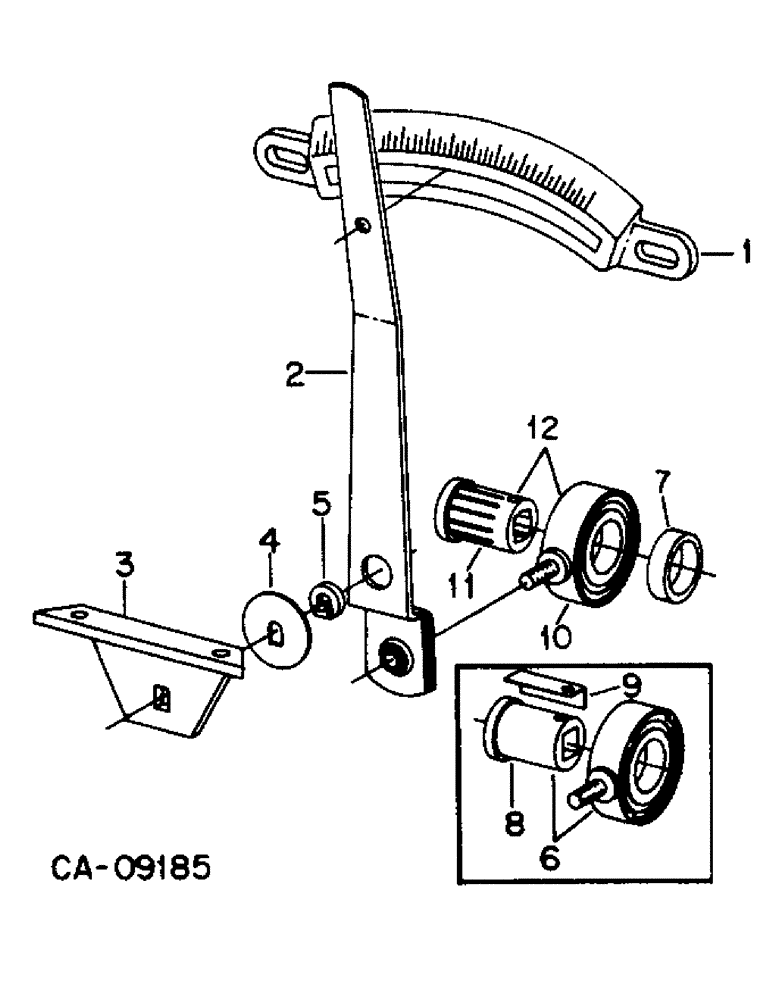

Запчасти Case IH 510 (B-08) - GRAIN FEED SHIFTER

1

603127R1

INDICATOR

grain feed

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

815179C1

LEVER

ASSY, grain feed shifter

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type 5 crg

1шт.

142745

NUT, WING

NUT, 5/16-18 wing

1шт.

3

BRACKET, shifter lever, machines prior to 1976, order 1-819361C1, bracket, 1-819263C1, washer and 1-819264C1, bushing

1шт.

3

819361C1

BRACKET

shifter lever, machines built 1975 & since

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 type 5 crg

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 type 5 crg

2шт.

NLS

NO LONGER SERVICED

5/16-18 hex jam

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

819263C1

WASHER

shifter stop, machines built 1975 & since

1шт.

5

819264C1

BUSHING

shifter stop, machines built 1975 & since

1шт.

6

609384R91

THRUST BEARING

ASSY, feed shifter, prior to 1984 season, order bearing assy, 1279927C91 amd spacer 609388R1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

7

609389R1

SPACER

nylon bushing

1шт.

8

609388R1

SPACER

feed shifter bearing, plastic, part of bearing assy 609384R91

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

9

816573C1

SHIM

lever .005, used only with bearing assy, 609384R91

1шт.

10

1279927C91

BEARING ASSY

feed shifter

1шт.

11

1279145C1

SPACER

feed shifter bearing, powdered metal

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

12

1279109C91

BEARING ASSY

ASSY W/SPACER, 1279145C1, feed shifter

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

816773C2

KIT

PACKAGE PRODUCT GRAPHICS SERVICE, consists of, (1) product graphic (NSS), (1) product graphic (NSS), (1) product graphic 61907C1, (2) reflector 175311C1, (1) reflector 174732C1, (1) product graphic 819809C1 AND SOWING CHART

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, general warning, English AND SOWING CHART

1шт.

71483C1

PRODUCT GRAPHIC

general warning, French AND SOWING CHART

1шт.

71484C1

PRODUCT GRAPHIC

general warning, Spanish AND SOWING CHART

1шт.

819809C2

DECAL

PRODUCT GRAPHIC, caution, no riders AND SOWING CHART

1шт.

624957R1

DECAL

TAPE, red safety reflective PRODUCT GRAPHIC AND SOWING CHART

1шт.

175311C1

REFLECTOR

safety red PRODUCT GRAPHIC AND SOWING CHART

2шт.

487166R1

TAPE

amber safety reflective PRODUCT GRAPHIC AND SOWING CHART

1шт.

174732C1

REFLECTOR

safety amber PRODUCT GRAPHIC AND SOWING CHART

1шт.

1097238R1

DECAL

CHART, grain sowing

1шт.

1097019R1

DECAL

CHART, fertilizer sowing, 7 inch PRODUCT GRAPHIC AND

1шт.

1003859R5

DECAL

CHART, grass seed sowing, 7 inch PRODUCT GRAPHIC AND

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of,(2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International, consists of, (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, consists of, (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)

1шт.
