Запчасти Case IH 510 (B-06) - GRAIN AND FERTILIZER HOPPER UNIT

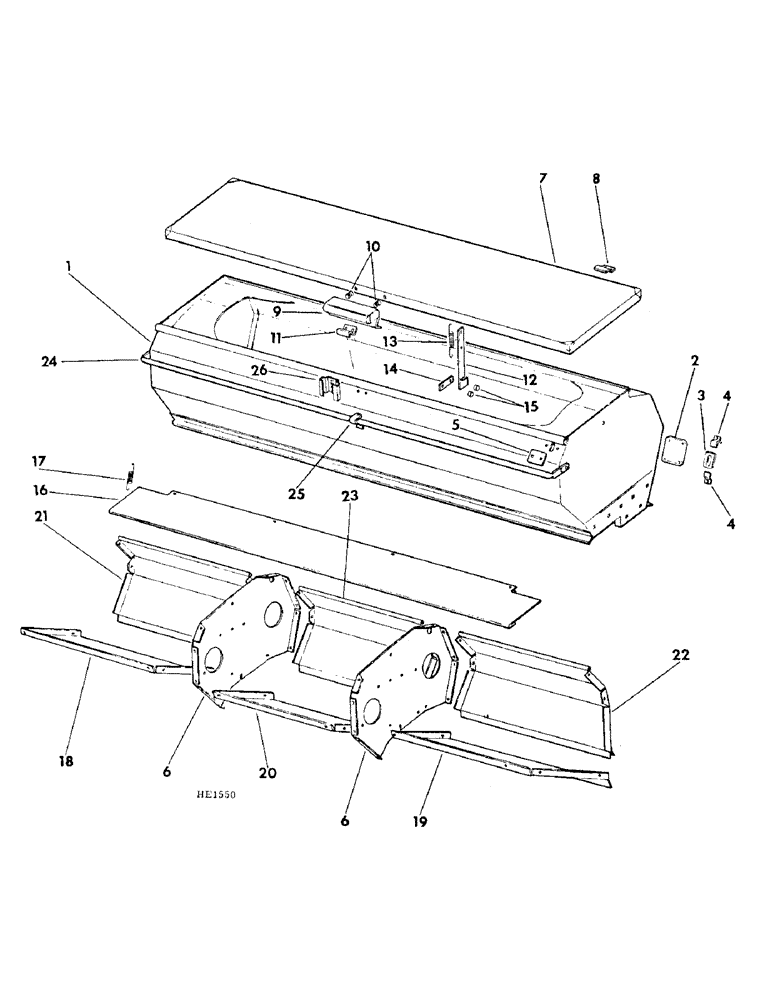

Схема запчастей Case IH 510 - (B-06) - GRAIN AND FERTILIZER HOPPER UNIT
25
3
8
12
5
1
24
10
19
17
9
23
13
16
7
6
14
22
11
4
21
15
26
18
2
4
6
20

Артикул

Название

Примечание

Количество

1

HOPPER ASSY, grain & fertilizer, machines prior to 1970, order 1-816650C2, hopper assy, 2-603264R1, window 4-604320R1 clip

1шт.

1

816650C2

HOPPER ASSY, grain & fertilizer, machines 1970, 1973 season

1шт.

1

819056C92

HOPPER

ASSY, grain & fertilizer, includes 1-819809C1, prod graph

1шт.

819809C2

DECAL

PRODUCT GRAPHIC, caution, no riders, machines built 1973 & since

1шт.

2

815085C1

WINDOW

grain viewing, machines, Serial Range: prior-1970

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt-pan-hd

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

21801R1

WASHER

.281 x 734 x .056

8шт.

3

603264R1

GLASS

WINDOW, seed vision, machines built 1970 & since

2шт.

4

604320R1

CLIP

seed vision window, machines built 1970 & since

4шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt-pan-hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

815115C1

PLATE

BAR, fertilizer indicator access hole, not w/fert level indicator

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

816954C2

BAFFLE

hopper LH

1шт.

6

816955C2

BAFFLE

hopper RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

14шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

7

815155C1

COVER ASSY

hopper

1шт.

8

815173C1

HINGE

hopper cover

5шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt-pan-hd

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

9

815174C1

LATCH

cover

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 hex lock PHC

2шт.

10

N32176

SPRING

cover latch

2шт.

11

815175C1

CLIP

latch

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4-20 x 1/2 carriage

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

815176C1

ARM

cover hold open

1шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN, 5/16 x 23/32 rod-end-dld

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

13

398304R1

SPRING

cover return

1шт.

14

815178C1

SPACER

BAR, hold open arm retainer

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

594536R1

BUSHING

retainer bar

2шт.

16

815840C1

COVER

ASSY, fertilizer, used w/fertilizer att

1шт.

17

815891C1

SPRING

cover, used w/fertilizer att

4шт.

18

815814C1

PANEL

grain partition outer LH

1шт.

19

815815C1

PANEL

grain partition outer RH

1шт.

20

815832C1

PANEL

grain partition center, machines built prior to June 1976

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

21

815853C1

PANEL

ASSY, fert partition outer LH, maximum fertilizer position

1шт.

21

815854C1

PANEL

ASSY, fert partition outer LH, minimum fertilizer position

1шт.

22

815854C1

PANEL

ASSY, fert partition outer RH, maximum fertilizer position

1шт.

22

815853C1

PANEL

ASSY, fert partition outer RH, minimum fertilizer position

1шт.

23

815881C1

PANEL

ASSY, fert partition centre

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

24

816998C1

TUBE

hand rail, drills shpd to U.K., Serial Range: prior-1975

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

3шт.

120376

NUT,5/16"-18, G5

(per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (per bolt) 5/16"

1шт.

25

816764C1

CLAMP

hand rail, drills shpd to U.K., Serial Range: prior-1975

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

26

398976R1

BRACKET

SMV emblem mtg, for service see SMV emblem

1шт.

Выбрано товаров: 71
