Запчасти Case IH 510 (A-06) - TRACTOR HITCH AND JACK, ALL SIZE DRILLS

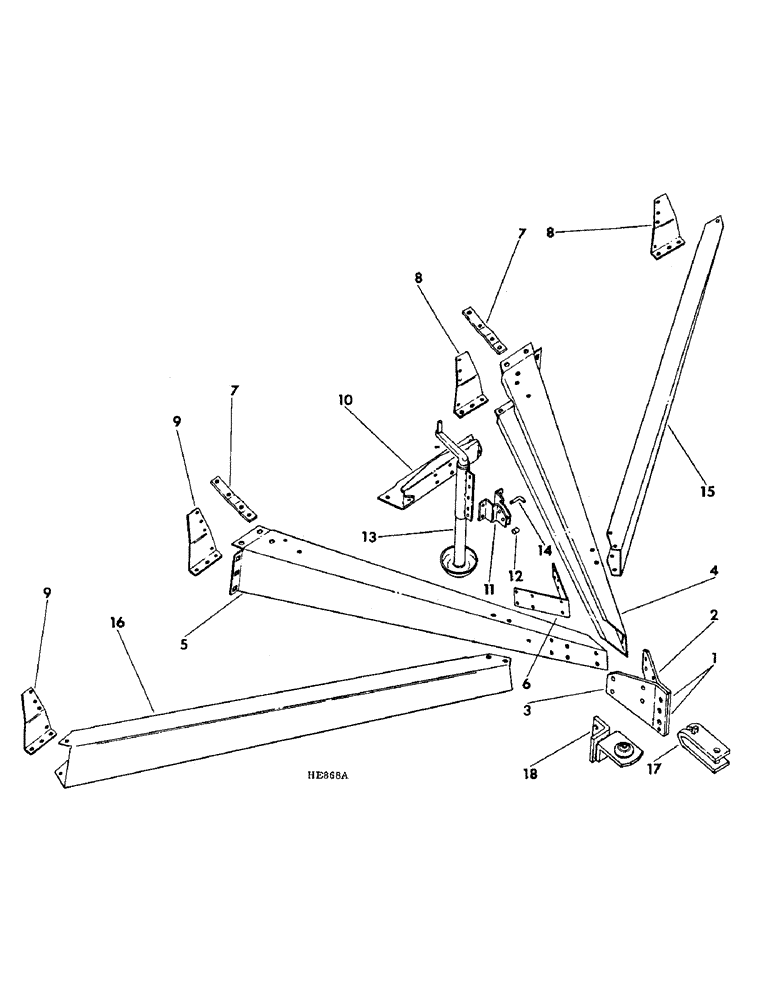

Схема запчастей Case IH 510 - (A-06) - TRACTOR HITCH AND JACK, ALL SIZE DRILLS
8
6
16
11
7
10
7
18
17
13
9
8
5
14
2
1
3
9
12
4
15

Артикул

Название

Примечание

Количество

1

YOKE ASSY, hitch, machines prior to 1972, order 1-815031C2, support, 1-815032C1, support, 2-217547, bolt, 2-124589, nut and 2-121574, lockwasher

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

815031C2

SUPPORT

hitch clevis LH

1шт.

3

815032C2

SUPPORT

hitch clevis RH, machines built 1972 and since

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

8шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

815033C21

MEMBER

hitch main LH, machines, Serial Range: prior-1972

1шт.

4

816924C1

MEMBER

hitch main LH, machines built 1972 & since

1шт.

5

815034C21

MEMBER

hitch main RH, machines, Serial Range: prior-1972

1шт.

5

816925C1

MEMBER

hitch main RH, machines built 1972 & since

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

5шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

816923C1

PLATE

YOKE, hitch reinforcing, machines built 1972 & since

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

7

815035C1

BRACKET

BRACE, hitch tie

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

8

815036C2

REINFORCEMENT

hitch lower LH

1шт.

9

815037C2

REINFORCEMENT

hitch lower RH, 1 used 13 x 7, 16 x 7, 18 x 7, 20 x 6 and 16 x 8, 2 used 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 4 bolts per reinforcement

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd, 4 used 16 x 7, 18 x 7, 16 x 8, 24 x 6, 21 x 7, 20 x 8, 16 x 10, 6 used 13 x 7, 20 x 6

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga, 2 used 24 x 6, 21 x 7, 20 x 8 & 16 x 10

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga, 1 per bolt

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

10

815040C1

SUPPORT

hitch stand crank

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

11

815041C91

BRACKET

ASSY, hitch jack, includes 1-85960R1, washer and 1-104114, rivet

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

85960R1

WASHER

bracket spacer

1шт.

104114

RIVET,But Hd, 3/8" x 1 1/8"

3/8 x 1-1/8 rd-hd

1шт.

13

815044C1

NO LONGER SERVICED

JACK ASSY, hitch

1шт.

14

815048C1

ROD

jack stand lock

1шт.

586591R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

15

815038C1

CHANNEL

hitch support LH

1шт.

16

815039C1

CHANNEL

hitch support RH, 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

10шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

17

815029C11

CLEVIS

ASSY, tractor hitch, regular

1шт.

Q1238

HEADED PIN,3/4" x 3 1/2"

PIN, 3/4 x 3-1/2 std-hd-dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

18

816873C1

FLEXIBLE JOINT

HITCH ASSY, ball joint, special

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

Выбрано товаров: 72
