Запчасти Case IH 510 (A-04) - FOOTBOARDS AND SUPPORTS

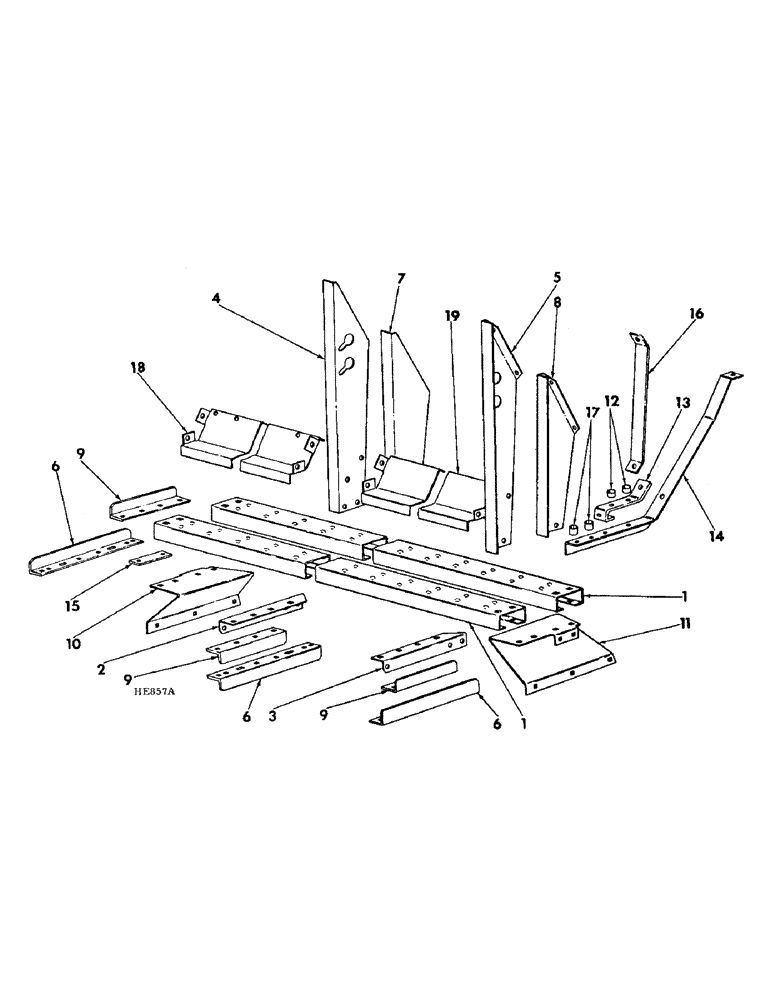

Схема запчастей Case IH 510 - (A-04) - FOOTBOARDS AND SUPPORTS
12
9
5
6
10
1
19
18
16
13
4
7
15
14
9
3
11
6
17
9
1
8
6
2

Артикул

Название

Примечание

Количество

1

815104C1

BOARD

SECTION, footboard, 13 x 7

2шт.

1

815105C1

BOARD

SECTION, footboard, 16 x 7

2шт.

1

815106C1

SUPPORT

SECTION, footboard, 20 x 6, 18 x 7 and 16 x 8

2шт.

1

815107C1

SUPPORT

SECTION, footboard, 24 x 6 and 21 x 7

2шт.

1

815108C3

SUPPORT

SECTION, footboard, 20 x 8 and 16 x 10

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

2

815191C1

ANGLE

support LH

1шт.

3

815192C1

ANGLE

support RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

815193C2

BRACKET

footboard LH

1шт.

5

815194C2

BRACKET

footboard RH, not w/separate placement fert F.O. or seed firming wheel

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

815723C1

ANGLE, footboard support, machines prior to 1973, use w/low rear mtd grass seed and brome seed attach

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

815757C1

PLATE

BRACKET, footboard LH, special

1шт.

8

815758C1

PLATE

BRACKET, footboard RH, special, use w/separate placement fert F.O or seed firming whl or gauge press whl

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

815722C1

ANGLE

footboard support, use w/low rear mtd grass seed and brome seed attach

4шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

10

815759C1

SUPPORT

footboard outer LH, special

1шт.

11

815760C1

SUPPORT

footboard outer RH, special, use w/separate placement fert F.O. or seed firming whl

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

12

60616H

WASHER

hopper spacer, use w/low rear mtd brome seed att

4шт.

13

815721C2

SUPPORT

hopper, machines prior to 1973 w/low rear mtd grass seed and/or brome seed attach, machines 1973 & since w/low rear mtd grass seed or brome seed att

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, grass and brome seed

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd, grass or brome seed

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

14

815717C1

SUPPORT

intermediate, machines prior to 1973 w/low rear mtd grass seed and/or brome seed attach, machines 1973 & since w/low rear mtd grass seed or brome seed att

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

815707C1

BAR

brome box support, machines 1973 & since w/low rear mtd grass seed or brome seed att

2шт.

16

815720C1

BRACKET

BRACE, hopper support, machines prior to 1973 w/low rear mtd grass seed and/or brome seed attach, machines 1973 & since w/low rear mtd grass seed or brome seed att

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

17

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

hopper support, machines prior to 1973 w/low rear mtd grass seed and/or brome seed attach

4шт.

180085

SPRING

5/16-18 x 1-3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

816742C1

SHIELD

footboard toe outer, 16 x 7

2шт.

18

816884C1

SHIELD

footboard toe outer, 21 x 7 and 24 x 6

2шт.

18

818000C1

SHIELD

footboard toe outer, 20 x 6

2шт.

18

819038C1

SHIELD

footboard toe outer, 13 x 7, for drills shipped U.K.

2шт.

19

816743C1

SHIELD

footboard toe centre, 20 x 6, 24 x 6, 13 x 7, 16 x 7 and 21 x 7, for drills, Serial Range: shipped-U.K.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

Выбрано товаров: 67
