Запчасти Case IH 510 (A-77) - RECOMMENDED HYDRAULIC PARTS

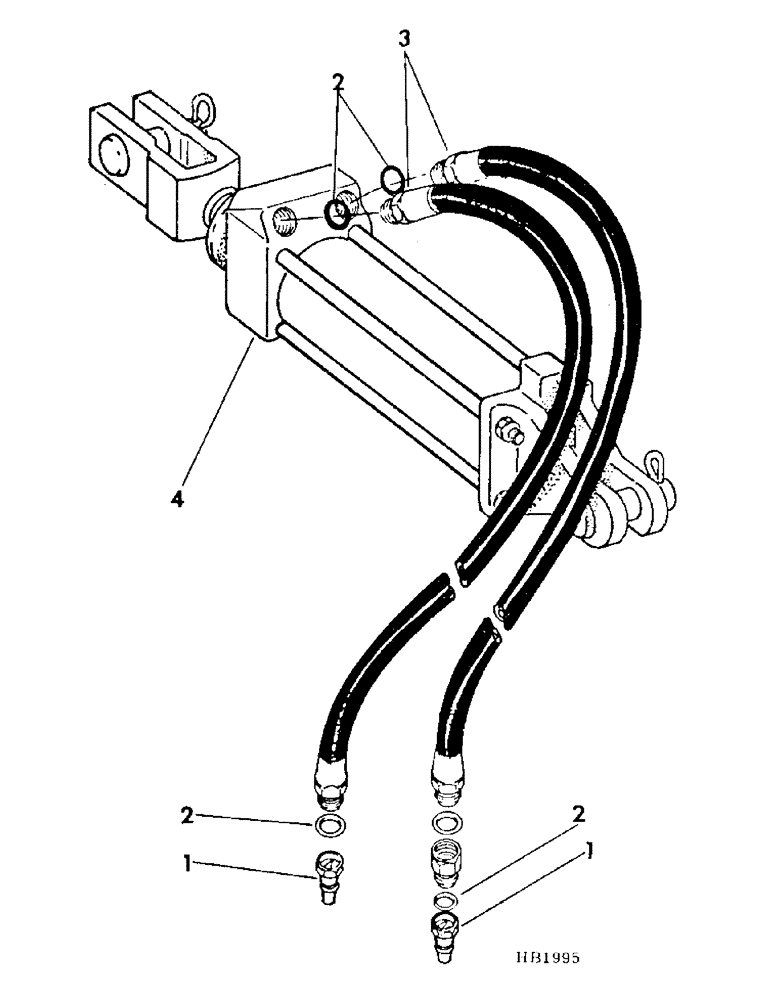

Схема запчастей Case IH 510 - (A-77) - RECOMMENDED HYDRAULIC PARTS
1
2
3
2
2
4
1

Артикул

Название

Примечание

Количество

1

395149R1

QUICK MALE COUPLING

COUPLER, hose male, optional to use 2-544787R91, coupler, for tractors equipped w/lever actuated breakaway rear coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male, optional to use 2-395149R1, coupler, for tractors equipped w/lever actuated breakaway rear coupler

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

male coupler and hose

4шт.

3

372437R91

HOSE

1/2 inch i.d. one wire braid 112 inch long 7/8-14 ends

2шт.

4

371291R97

CYLINDER

ASSY, 2.5 x 8 DA 2500 PSI, refer to cyl, 1 for components

1шт.

363137R94

PACKAGE

KIT, o-ring & seal

1шт.

4

371292R95

CYLINDER

ASSY, 3.5 x 8 DA 2500 PSI, refer to cyl, 1 for components

1шт.

363138R94

PACKAGE

KIT, o-ring & seal

1шт.

Выбрано товаров: 8
