Запчасти Case IH 510 (A-76) - DEPTH PRESS WHEEL, FOR USE WITH DOUBLE DISK STEEL BOOT FURROW OPENER

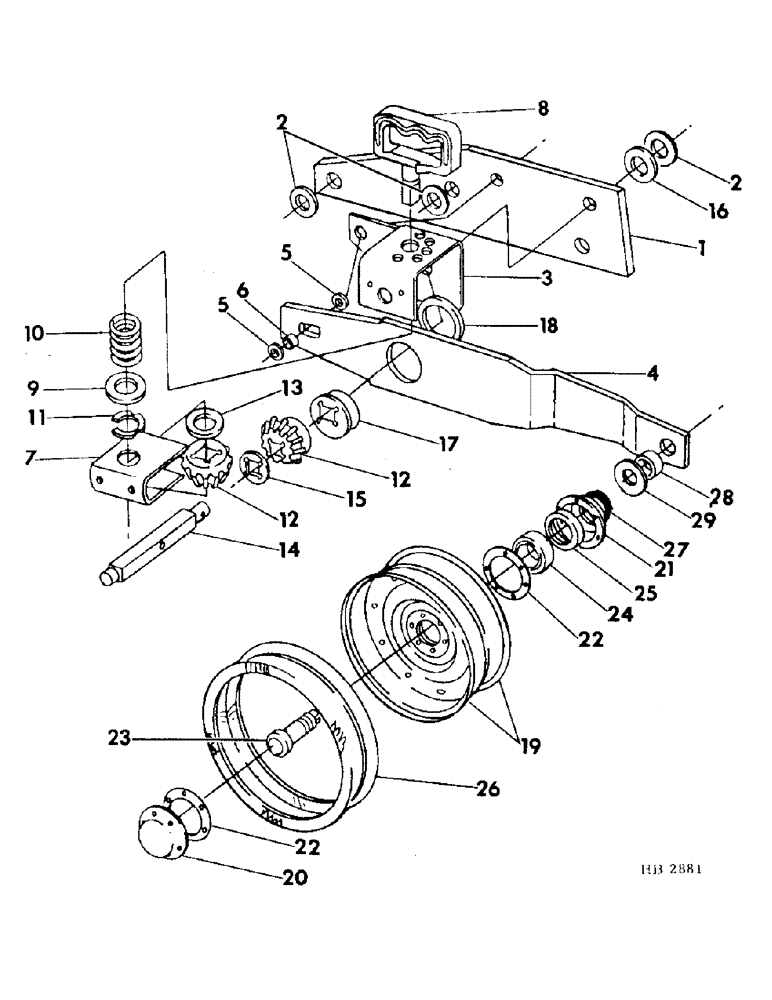

Схема запчастей Case IH 510 - (A-76) - DEPTH PRESS WHEEL, FOR USE WITH DOUBLE DISK STEEL BOOT FURROW OPENER
6
11
5
20
12
17
16
3
26
18
19
28
14
29
9
2
1
24
15
7
12
21
22
10
27
13
8
2
4
23
22
5
25

Артикул

Название

Примечание

Количество

1

819518C1

BAR

sector support

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

178374R1

WASHER

.531 x 1.250 x .054

3шт.

3

819519C1

HITCH BRACKET

SECTOR, indexing

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

819446C1

DRAWBAR

BAR, wheel draw

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

477589R1

WASHER

.406 x 1.500 x .105

2шт.

6

819596C1

SPACER, RING

SPACER, drawbar pivot

1шт.

7

819988C1

SUPPORT

adj gear

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 hex flange lock

2шт.

8

819532C1

HANDLE

wheel adjusting

1шт.

9

366112R1

WASHER

.781 x 1.250 x .105

1шт.

10

819592C1

SPRING

1шт.

11

819678C1

RING

handle retaining

1шт.

12

819520C1

GEAR

wheel adjusting miter

2шт.

13

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

1шт.

14

819531C1

PIN,12.7mm OD x 111mm L

gear & cam support

1шт.

19928R1

PIN,3/16" x 3/4", Coiled

2шт.

15

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

.531 sq x 1.000 x .054

1шт.

16

22265R1

WASHER

.531 x 1.250 x .027

1шт.

17

819526C1

CAM

eccentric

1шт.

18

593438R1

WASHER,48.51mm ID x 68.58mm OD x 3.04mm Thk

cam spacer

1шт.

19

1279405C1

RIM

press-gauge wheel

2шт.

20

602990R1

CAP

hub

1шт.

21

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

22

602992R1

GASKET

bearing retainer

1шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 btnhd small solid

6шт.

23

602987R1

BOLT

BOLT, wheel mounting

1шт.

121358

YOKE

5/8-18 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

wheel

1шт.

25

602994R1

FLANGE

seal

1шт.

26

842666C1

TYRE/TIRE

TIRE, gauge-press wheel, replaces 819785C2

1шт.

591714R1

WASHER

.718 x 1.250 x .054

1шт.

27

464628R1

SEAL

dirt, replaces 602993R1

1шт.

28

610993R1

WASHER

WASHER, wheel spacer

1шт.

29

602988R1

SPACER

seal retainer

1шт.

819786C91

WHEEL ASSY.

WHEEL ASSY, press-gauge L/tire, consists of, (2) rim (NSS), (12) rivet 104081, (1) cap 602990R1, (1) retainer 602989R1, (2) gasket 602992R1, (6) rivet 104082 (1) bolt 602987R1, (1) nut 121358, (1) washer 121574, (1) bearing 465004R91, (1) flange 602994R1

1шт.

Выбрано товаров: 46
